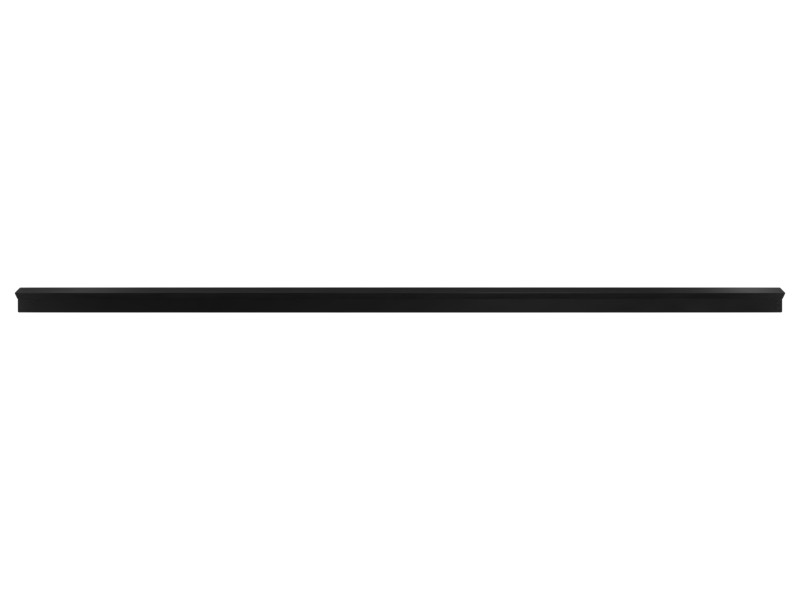

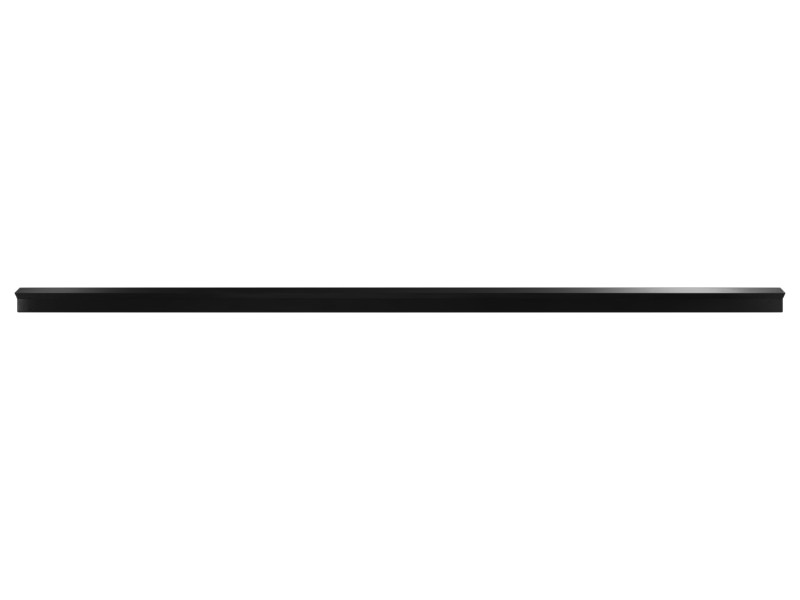

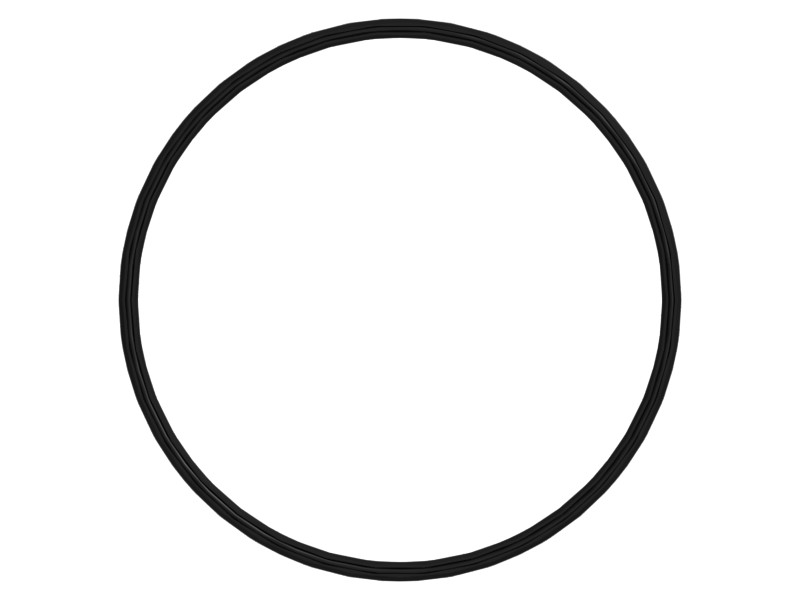

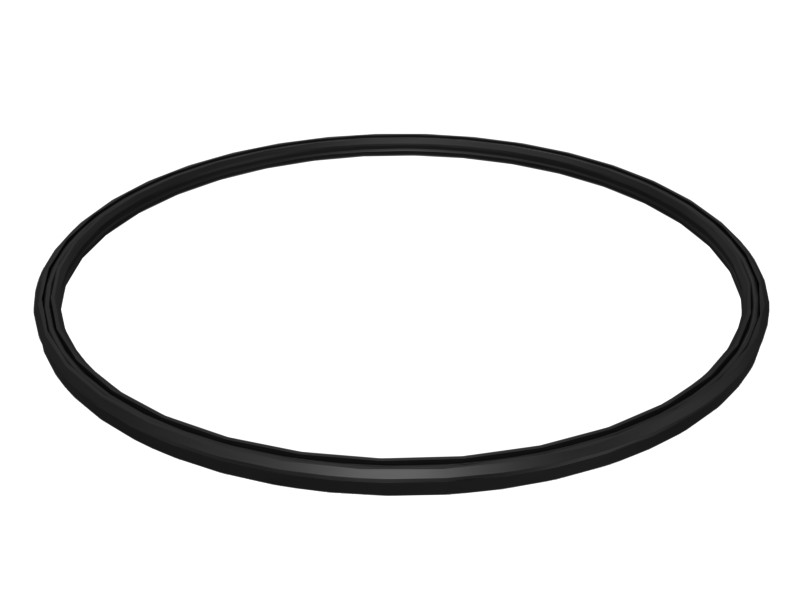

333-6482 Lift Cylinder Rod U-Cup Seal
Cat® Polyurethane U-Cup Seal; Stainless Steel, Rod Diameter: 279 mm
Description
Cat U-cup seals such as 333-6482 provide a pressure-tight seal between the cylinder and the rod. Their U-shaped cross-section automatically compensates for higher pressure to maintain a constant seal.
Features
- Seal Type: U-Cup
- Style: Spring Energized
- Groove Diameter: 296 mm (11.68 in)
- Groove Axial Width: 10 mm (0.41 in)
Applications
Used as needed to service hydraulic cylinders and keep equipment leak-free. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Seal Type | U-Cup Seal |
|---|---|
| Style | Spring Energized |
| Material | Polyurethane; Stainless Steel |
| Rod Diameter | 279 mm (11 in) |
| Outside Diameter | 297 mm (11.68 in) |
| Cross-Section Width | 10 mm (0.38 in) |
| Cross-Section Height | 10 mm (0.4 in) |
Compatible Equipment
- Off-Highway Trucks: 789, 789D
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
