Description

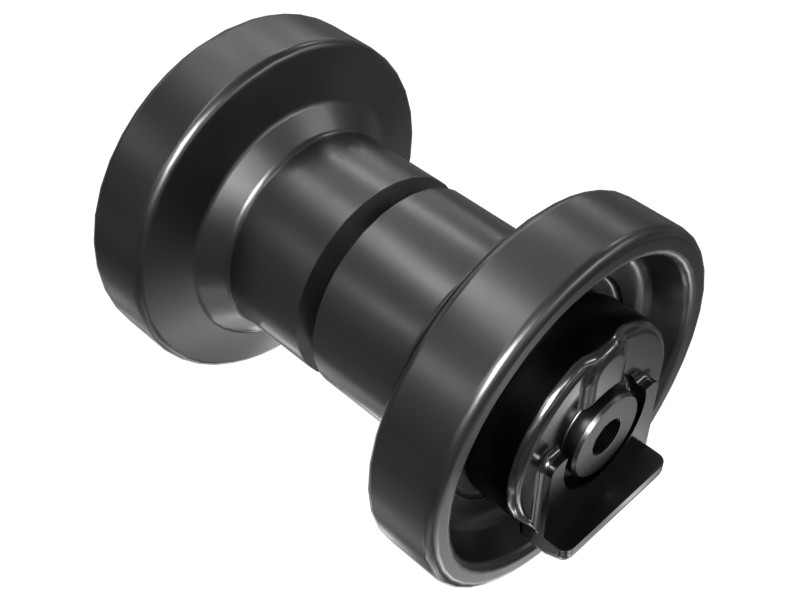

Track rollers support and guide the machine during tracked operation.
Specifications
| Track Type | Steel |
|---|---|
| Application | Standard Application |
| Undercarriage System | HD |
| Mounting Type | Cantilever |
| Inside Spacing | 49.3 mm (1.941 in) |
| Mounting Bolt Lateral Spacing | 50 mm (1.969 in) |
| Mounting Cap Bolt Hole Diameter | 11.5 mm (0.453 in) |
| Shaft Length | 190 mm (7.48 in) |
| Mounting Width | 126.5 mm (4.98 in) |
| Shaft Outside Diameter | 35 mm (1.378 in) |
| Mounting Cap Bolt Thread Size | M10 |
| Outside Spacing | 105 mm (4.134 in) |
| Mounting Bolt Axial Spacing | 149.7 mm (5.894 in) |
| Outer Flange Diameter | 134 mm (5.276 in) |
| Flange Diameter | 134 mm (5.28 in) |
| Flange Type | Center Flange |
| Bolt Size | 12 mm (12 in) |
| Tread Diameter | 100 mm (3.94 in) |
Compatible Equipment
- Mini Excavators: 306
- Excavators: 306E
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
