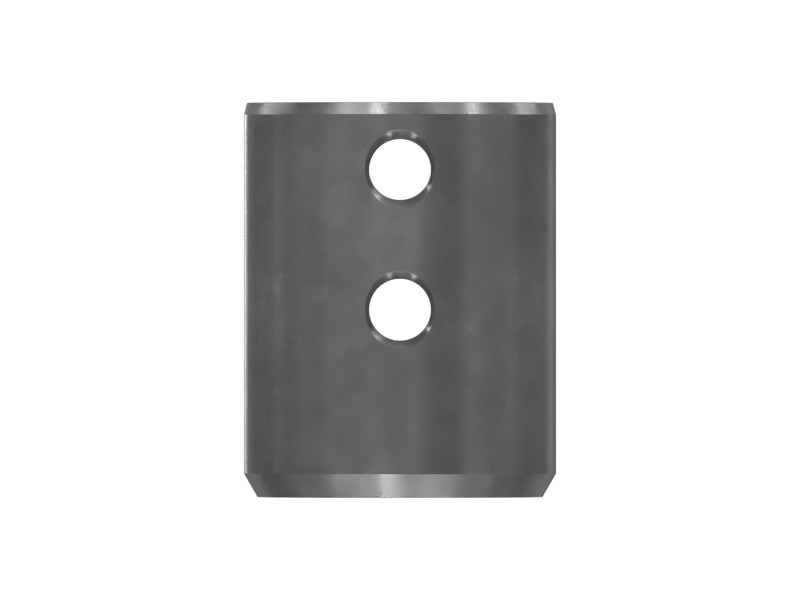

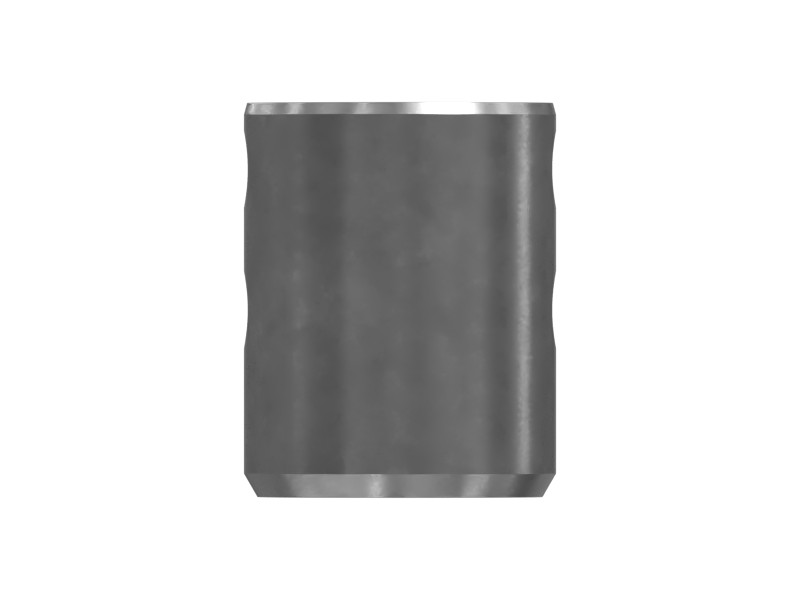

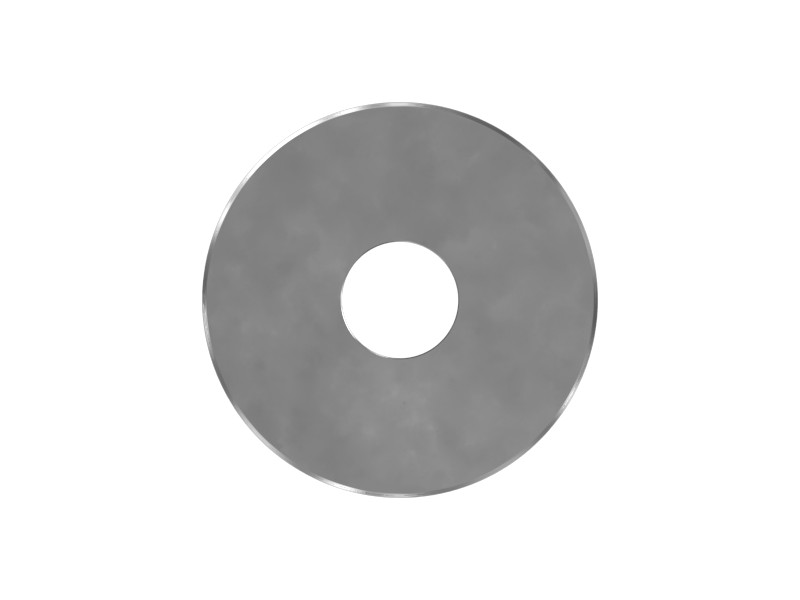

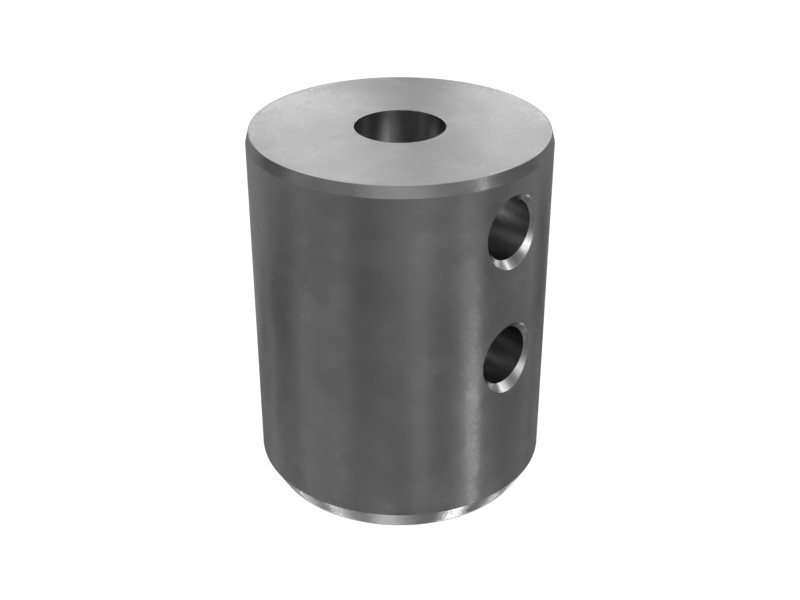

333-2993 39.99 mm OD Planetary Shaft
Cat® planetary shaft transmits power without a motor and distributes torque for efficient powertrain performance
Description
Cat powertrain components must withstand extremely high torque, high shock loads, and frequent direction changes and shifts. Cat designs and manufactures transmission and final drive components with these demands in mind, ultimately improving powertrain durability and performance over the life of the machine. Cat planetary shafts are designed to control the speed, direction, and force transmitted while Cat machines operate.
Features
- Hardened steel planetary shaft
- Outside Diameter: 39.99 mm (1.57 in)
- Length: 50.5 mm (1.988 in)
- Cross Hole Diameter: 8 mm (0.3149 in)
- Chamfered end
- Through hole
Applications
Service part for the final drive assembly. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Low Alloy Steel |
|---|---|
| Material Description | Steel |
| Outside Diameter | 39.99 mm (1.57 in) |
| Inside Diameter | Minimum 12 mm (Minimum 0.472 in) |
| Overall Length | 50.5 mm (1.988 in) |
Compatible Equipment
- Excavators: 320, 323D2 L, 323D2, 320D L, 320D2 L, 320E, 320D2 GC, 320 GC, 323, 323D L, 323D, 320D RR, 320D GC, 320D FM, 323 GX, 320 GX, 320D2, 320D
