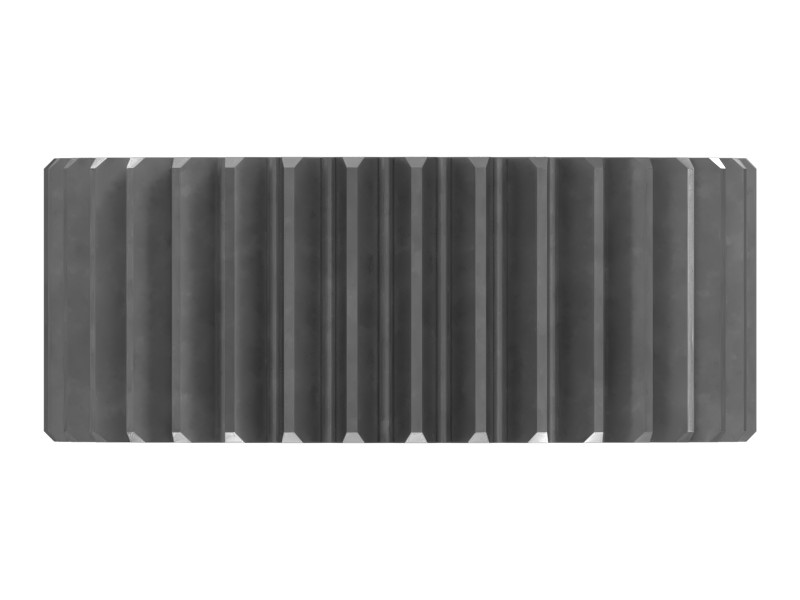

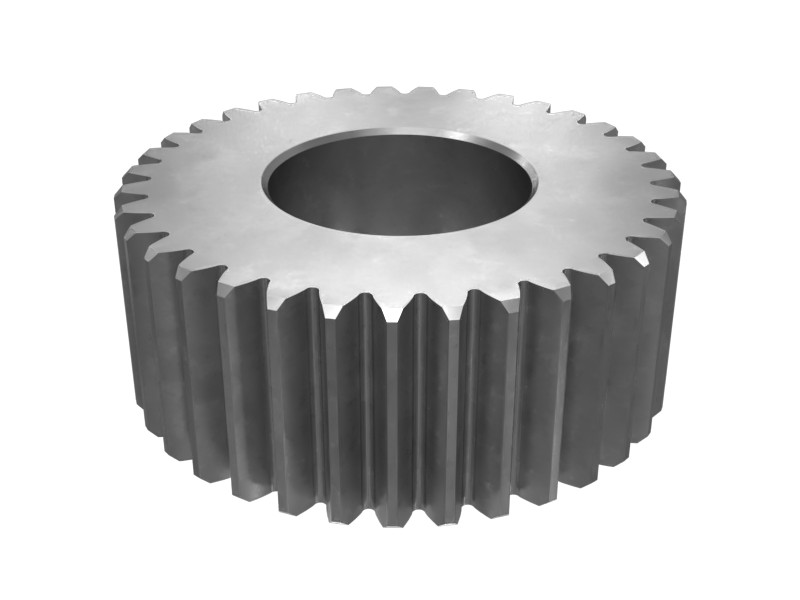

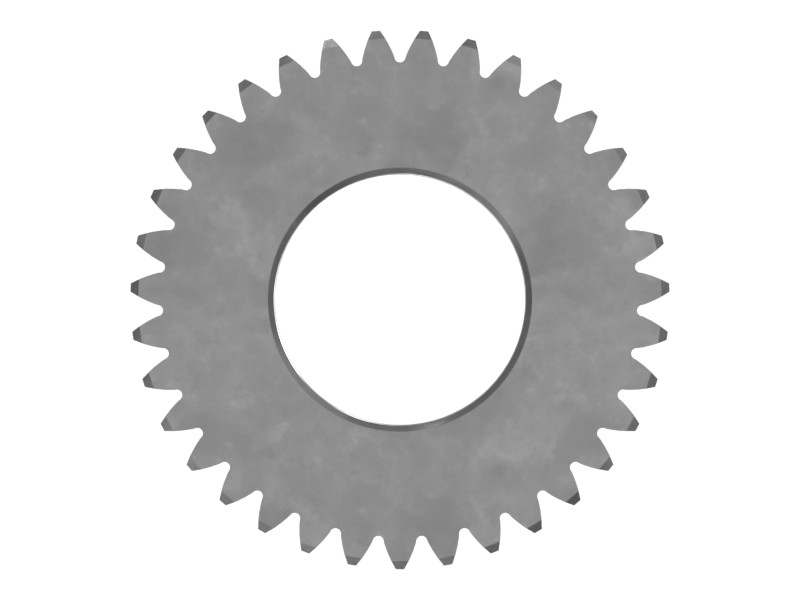

333-2992 35 Tooth Planetary Spur Gear
Cat® Hardened Steel Planetary Spur Gear for Final Drives
Description
Gear used in the final drive planetary gear set.
Features
- Material: Steel
- Spur Gear Teeth: 35
- Cat® final drive gears are designed to maximize system performance and extend balanced system life. Cat final drive gears are produced through metallurgy, heat treatment, tooth profile, and surface finishing processes that maximize the life of mating gears and ensure the final drive maintains optimal performance
Applications
Cat gears are built for specific applications to ensure that all power train parts work together as a system and wear together. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Diameter | 130 mm (5.1 in) |
|---|---|
| Material | Alloy Steel |
| Material Description | Steel |
| Number of Teeth | 35 |
| Outside Diameter | 138.67 mm (5.459 in) |
| Inside Diameter | 65.02 mm (2.559 in) |
| Width | 55 mm (2.165 in) |
Compatible Equipment
- Excavators: 320, 320 GC, 323D2 L, 320D2 GC, 320D2 L, 323D, 323D L, 323, 320D L, 320E, 323D2, 320D FM, 320D RR, 320D GC, 320 GX, 323 GX, 320D2, 320D
