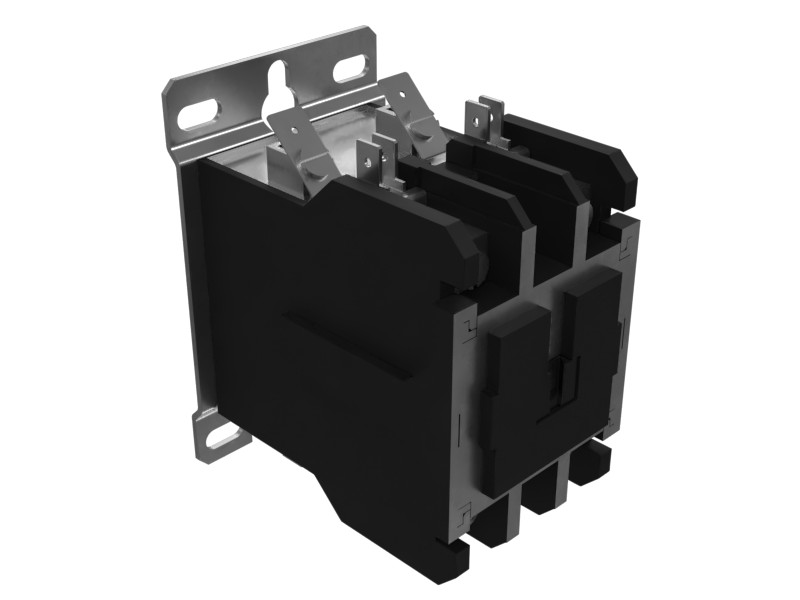

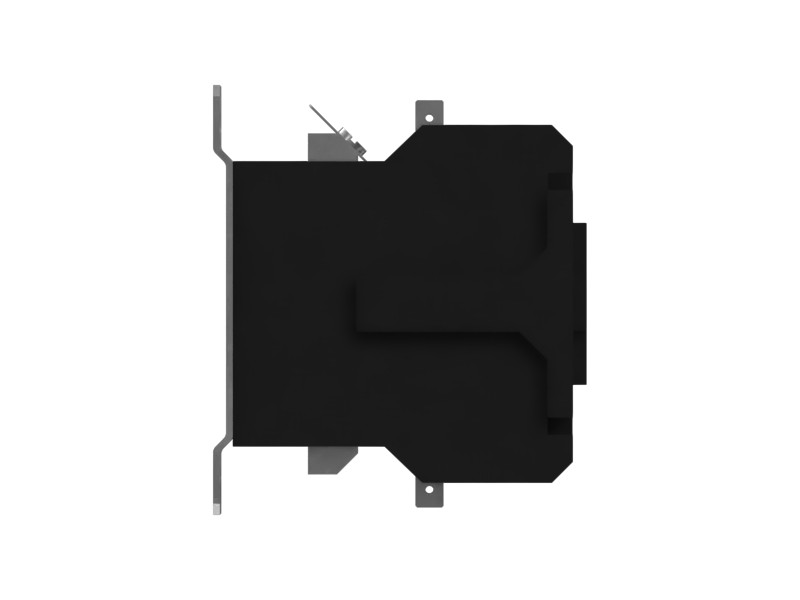

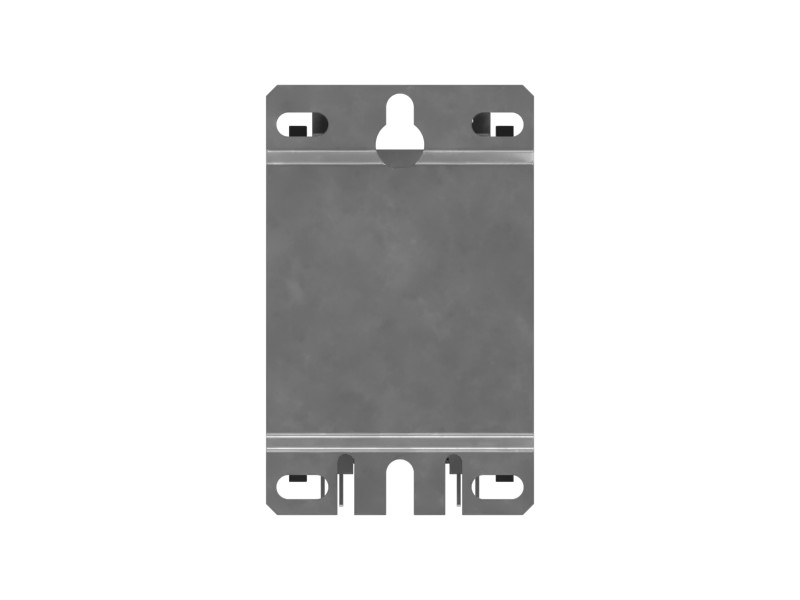

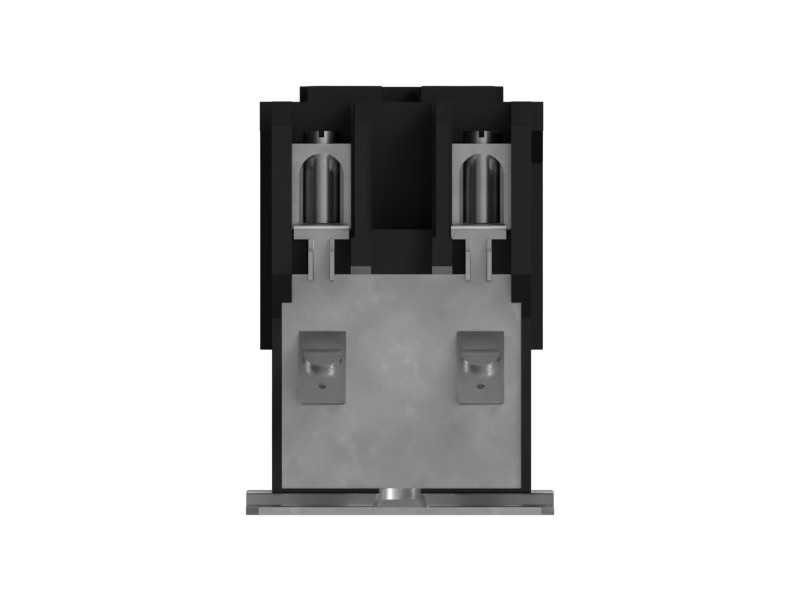

332-1131 2 Pole 50 Amp Contactor
Cat® jacket water heater contactor is an electrical switch used to activate the engine preheating system to improve cold-start performance
Description
A contactor is a device that actuates electrical contacts when temperature, pressure, current, etc. exceed certain limits.
Features
- Voltage: 240 VAC
- Number of Poles: 2
- Rated Current: 40 A
- Connection: Quick connect
- Mounting type: DIN rail mount
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Carbon Steel |
|---|---|
| Length | 95 mm (3.74 in) |
| Width | 85 mm (3.35 in) |
| Height | 61 mm (2.4 in) |
| Temperature | -25° to +70° °C (-13° to +158° °F) |
Compatible Equipment
- Generator Sets: 3516C, G3516, G3516C, 3512B, 3512E
- Engines: C32, C27, C175-16
- Excavators: 3516B, 3512C, 3516E, 3508B
