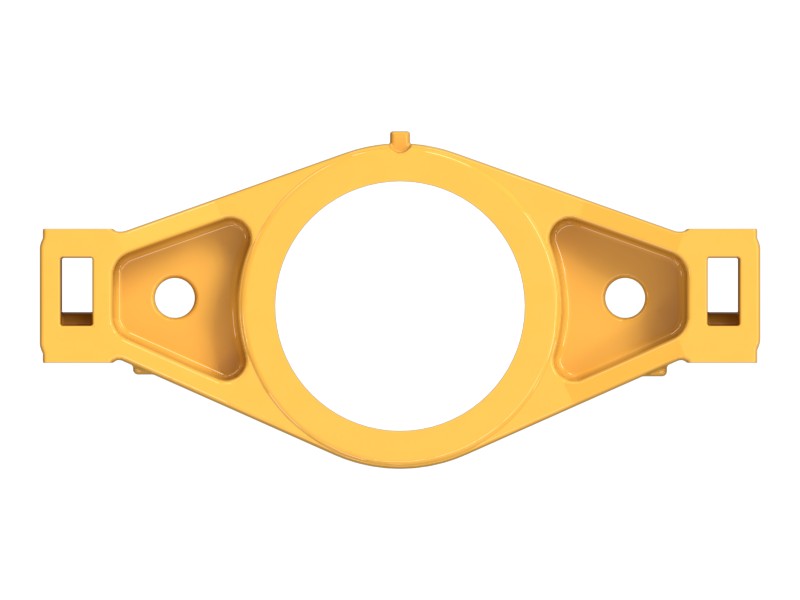

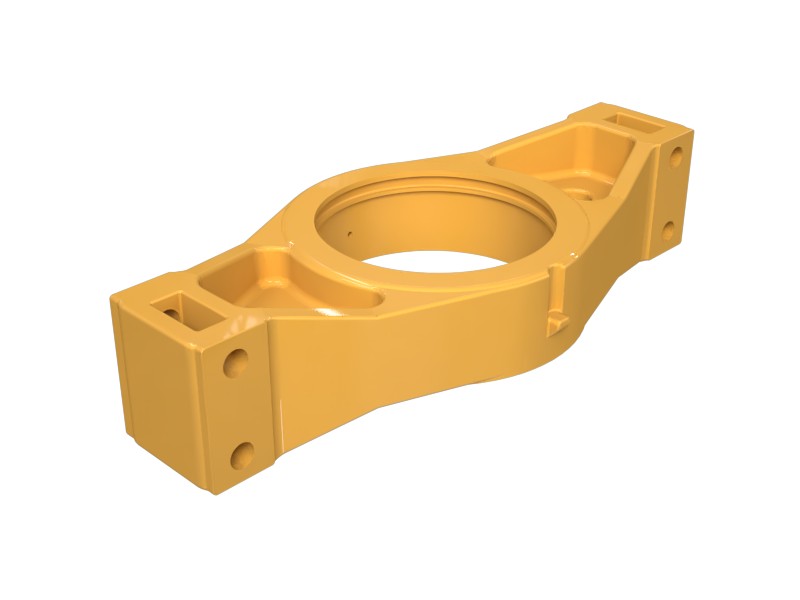

331-6206 402 mm OD Front Trunnion Support
Cat® Oscillating Shaft Front Trunnion Support keeps critical components precisely aligned.
Description
Front trunnion support group for use with the oscillating axle.
Features
- Trunnion support group with sleeve bearing, lip seal, and retaining ring
- Support Material: Cast Iron
- Bearing Bore Diameter: 323.75 mm (12.746 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Diameter | 323.75 (Bearing Bore) mm (12.746 (Bearing Bore) in) |
|---|---|
| Material | Ductile (Spheroidal) Iron |
| Material Description | Cast Iron (Support) |
| Overall Length | 890 mm (35.039 in) |
| Overall Width | 183 mm (7.204 in) |
| Overall Height | 417.2 mm (16.425 in) |
Compatible Equipment
- Track Loaders: 834H
- Wheel Loaders: 986K
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
