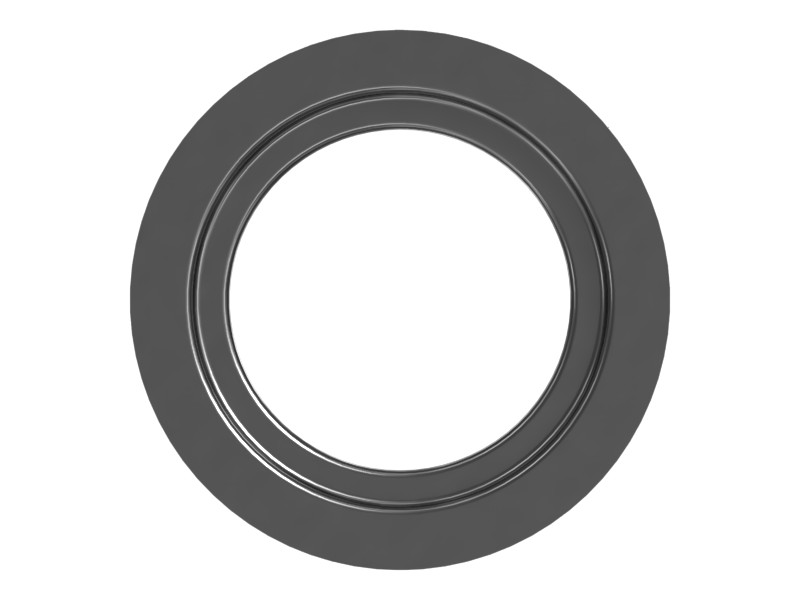

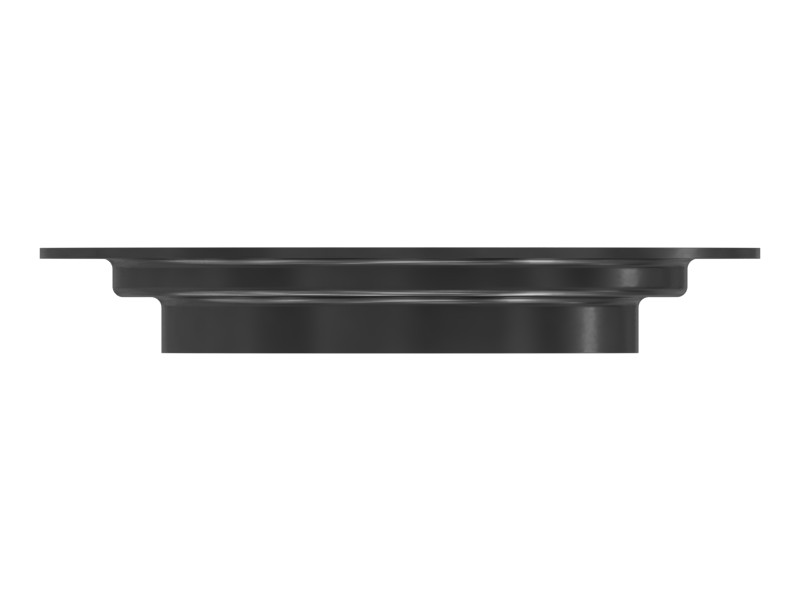

331-1388 103 mm Diameter Deflector Screen Plate
Cat® deflector screen plate for drive shafts, diameter 103 mm.
Description
The deflector screen plate is a protective component designed to protect the axle from debris, contaminants, and other objects that could damage or interfere with axle operation. It is located on the front side of the drive shaft, between the axle housing and the axle shaft. It forms a barrier that keeps contaminants from entering the axle housing and damaging the axle shaft, gears, bearings, or other critical components.
Attributes
- Provides strength and protection against impact and debris.
- Designed to provide proper ventilation.
- Designed to be corrosion resistant and durable.
Applications
The deflector screen plate extends drive shaft life and reduces costly repairs or failures. It is widely used on Caterpillar 349E, M313C, M313D, M314, M314F, M315, M315C, M315D, M315F, M316, M316C, M316D, M316F, M317, M317D, M317F, M318, M318C, M318D, M318F, M319, M320, M320, M320D, M316C, M316D, M316F, M317, M317D, M317F, M318F, M318D, M318C, M318D, M318F, M318D, M318F, M319, M320, M320, M320D, M316C, M317, M317D, M317F, M318, M318C, M318D, M318F, M318D, M318F, M318F, M318D, M318F, M318F, M318D, M318F, M318F, M318D, M318F, M318F, M318D, M318F, M318F, M318D, M318F, M319, M320, M320, M320D, M316C, M320F, M322, M322C, M322D, M322F, M323F, M324D, MH3022, MH3024, MH3026, and MH3032 excavators, 415, 416, 416F, 420, 420F, 427, 428, 430, and 432 backhoe loaders, 918M, 920, and 920K wheel loaders, and M318D, M320F, M322D, MH3022, MH3024, and MH3026 material handlers.
Specifications
| Inside Diameter | 65.2 mm (2.57 in) |
|---|---|
| Material | Carbon Steel |
| Outside Diameter | 103 mm (4.06 in) |
| Weight | 0.09 kg (0.2 lb) |
Compatible Equipment
- Wheel Excavators: M315D, M320D2, M317D2, M313D, M322D, M315D2, M320, M315, M315GC
- Excavators: 416F2, 432, 345 GC
- Wheel Loaders: M314
