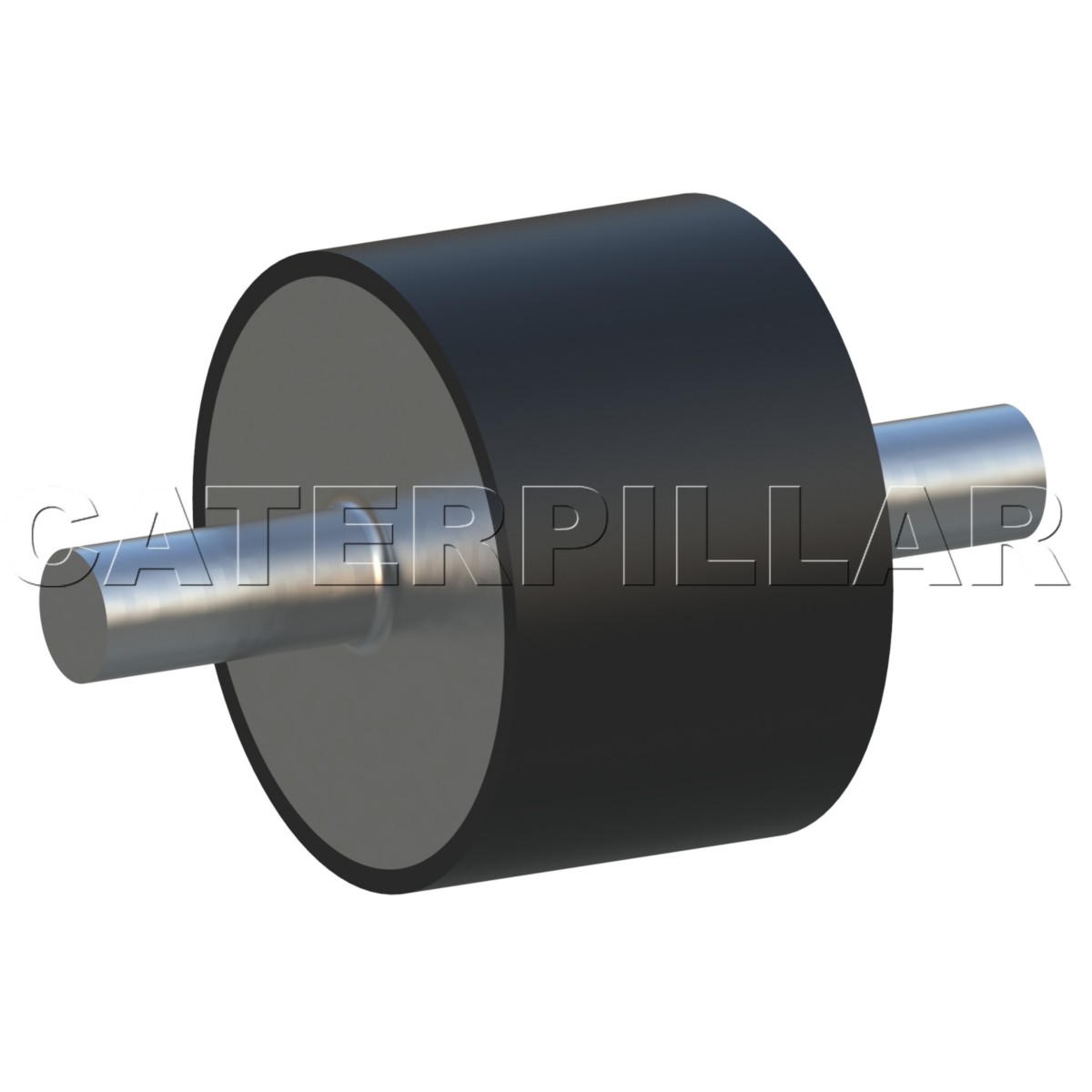

330-5646 M10X1.5 Threaded Mount
Cat® M10x1.5 threaded mount ensures proper alignment and dampens vibration, providing a flexible and resilient connection between two parts.
Description
The isolation mount is used to mount and locate systems, accommodate displacement, and isolate components from the surrounding structure (vibration, shock, noise).
Sandwich mounts have integrated fasteners on both ends for easy installation (two studs, two threaded holes, or one stud and one threaded hole).
Features
Cat® mounting systems are designed to reduce the stress and strain on installed components, improve component durability and extend service life, and improve operator comfort. The entire system (mount design, material selection, placement, fasteners, etc.) is optimized and validated to meet specific application requirements.
Sandwich mounts are a relatively economical option and perform well in light-load applications. They provide excellent radial isolation and can accommodate high radial displacement.
Applications
The sandwich base is widely used in light-duty applications such as electrical, and also in high-displacement applications such as compactor drums.
Specifications
| Material | Carbon Steel |
|---|---|
| Overall Length | 61.4 mm |
| Stud Thread Size | M10 mm |
| Stud Thread Pitch | 1.5 |
| Stud Length | 18 mm (0.71 in) |
| Mounting Type | Sandwich Type – Studs on Both Ends |
| Outside Diameter | 39.4 mm (1.55 in) |
| Rubber Length | 25.4 mm (1 in) |
Compatible Equipment
- Track Loaders: 990K, 834H, 993
- Wheel Excavators: MD6310, MD6250
- Compactors: 834K, CB10
- Dozers: D11T, D10T2, D7R II, D9T, D9, D10, D11, D10T
- Excavators: 326, 6015, 6015B, 330
- Wheel Loaders: 992K
- Off-Highway Trucks: 797F
- Asphalt Pavers: AP655F, AP655F L
Additional information
| Machine Model | 326, 330, 6015, 6015B, 797F, 834H, 834K, 990K, 992K, 993, AP655F, AP655F L, CB10, D10, D10T, D10T2, D11, D11T, D7R II, D9, D9T, MD6250, MD6310 |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Dozers, Off-Highway Trucks, Compactors, Asphalt Pavers |
| Part Source | Genuine OEM |
