Description
Cat windshield wipers clear rain and debris so the operator can see the surroundings clearly in extreme conditions. Because the wiper is a safety device, it should be inspected regularly and replaced as needed so the equipment performs as intended.
Features
- 90 degree sweep
- Includes cover and hardware
Applications

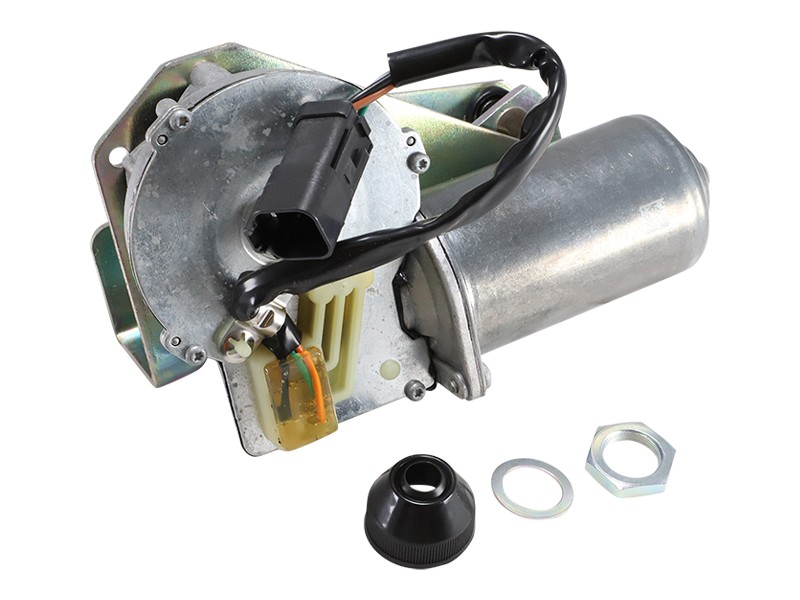

The Cat wiper motor group consists of a wiper motor with linkage or gears that converts rotary motion to linear motion at the drive nut to drive the wiper arms in the windshield wiper system. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Overall Height | 112 mm (4.4 in) |
|---|---|
| Remarks | 2-Speed |
| Connector Type | 6-Pin DT |
| Overall Length | 176 mm (6.9 in) |
| Overall Width | 202 mm (7.9 in) |
| Material | Carbon Steel |
Compatible Equipment
- Track Loaders: 834H, 826H
- Excavators: 621H
- Wheel Loaders: 980H, 972H, 950H, 966H, 962G, 950G, 988G, 988H
