Description
Cat windshield wipers clear rain and debris so the operator can see the surroundings clearly in extreme conditions. Because the wiper is a safety device, it should be inspected regularly and replaced as needed so the equipment performs as intended.
Features
- 175 degree sweep

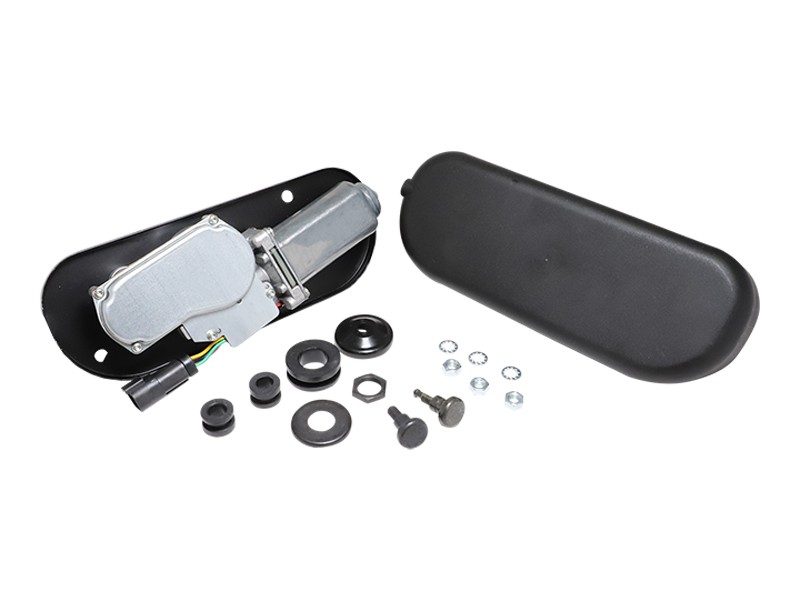

- Includes receptacle group, pin, sleeve, lock washer, and nut
- Operating Current at Maximum Load: 2 A
- Maximum Stall Current at High Speed: 4 A
Applications
Cat wiper motor groups consist of a wiper motor with linkage or gears that converts rotary motion to linear motion at the drive nut to drive the wiper arms in the windshield wiper system. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Carbon Steel |
|---|---|
| Overall Width | 270 mm (10.6 in) |
| Remarks | 35 Cycles/Minute |
| Overall Height | 104 mm (4.1 in) |
| Overall Length | 95.5 mm (3.8 in) |
| Connector Type | 4-Pin DT |
Compatible Equipment
- Wheel Loaders: 950H, 972H, 966H, 980H, 986H
