Description
Cat windshield wipers clear rain and debris so the operator can see the surroundings clearly in extreme conditions. Because the wiper is a safety device, it should be inspected regularly and replaced as needed so the equipment performs as intended.
Features
- 90 degree sweep
- Includes sealing plug, receptacle group, pin, cover, lock washer, and nut
- Operating Current at Maximum Load: 2 A
- Maximum stall current at high speed: 5 A
Applications

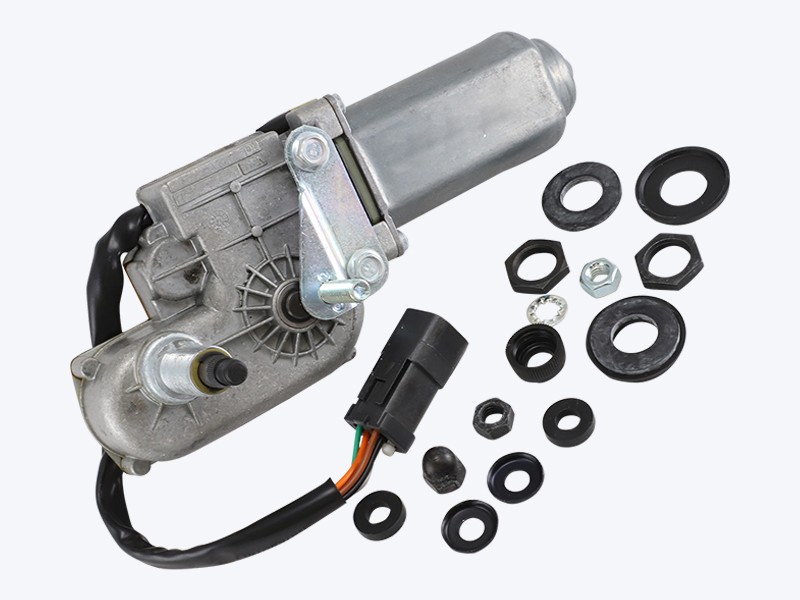

The Cat wiper motor group consists of a wiper motor with linkage or gears that converts rotary motion to linear motion at the drive nut to drive the wiper arms in the windshield wiper system. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Connector Type | 6-Pin DT |
|---|---|
| Overall Width | 225 mm (8.9 in) |
| Overall Length | 106.3 mm (4.2 in) |
| Remarks | 2-Speed |
| Overall Height | 89 mm (3.5 in) |
| Material | Carbon Steel |
Compatible Equipment
- Dozers: D6R XL, D6T, D6R II, D7R II, D8R, D6T LGP, D6R LGP, D9T, D8T, D7R, D6R III, D6N, D6R, D10T, D11T
