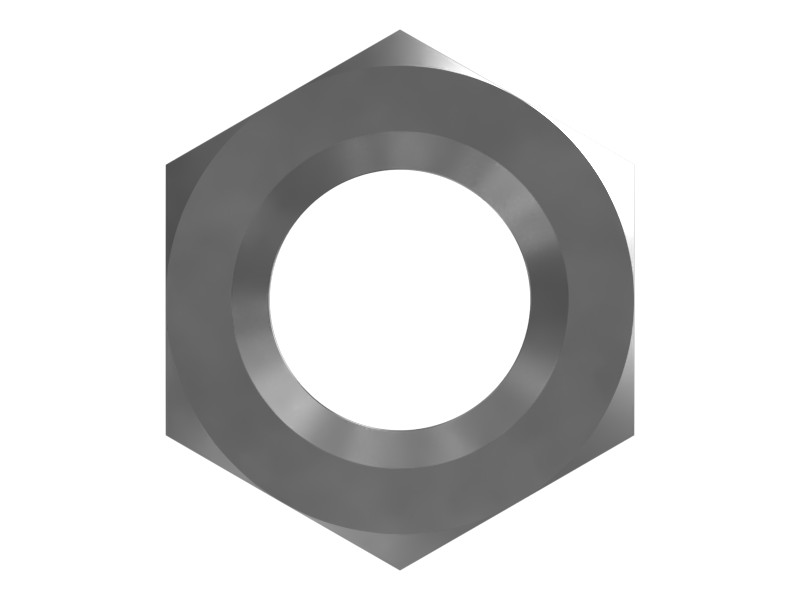

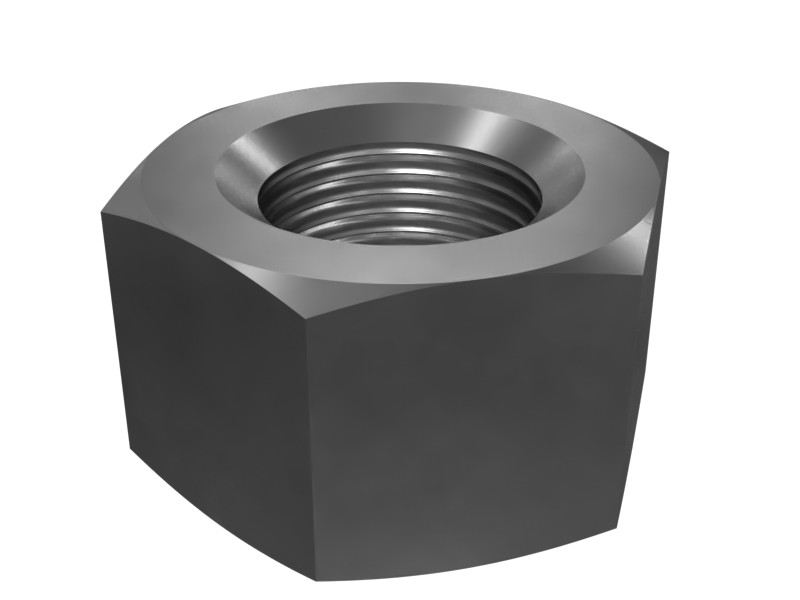

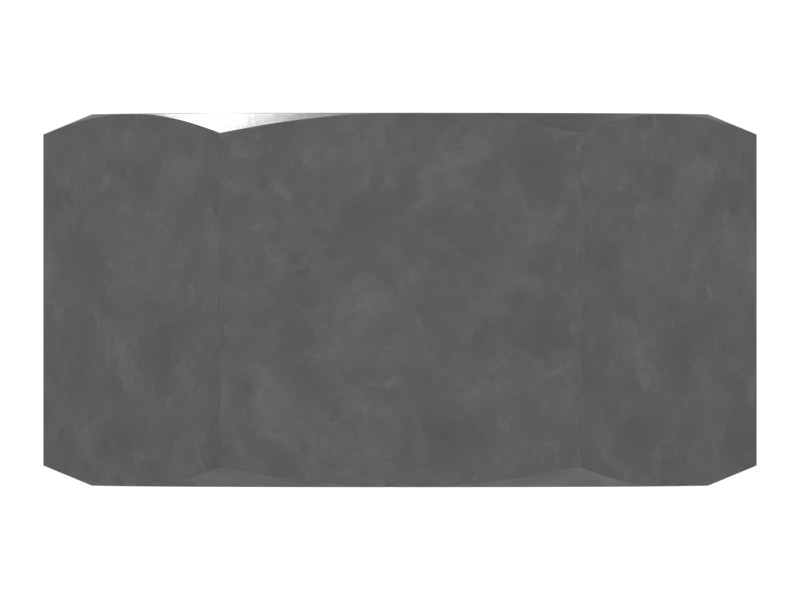

Description
Cat bolts form a matched system with mating hardened washers and nuts to produce consistent, high clamping force.
Specifications
| Surface Finish | Zinc Flake |
|---|---|
| Class or Grade | ISO 898-2 Class 12 |
| Nut Width – 3 | 18 mm |
| Thread Size | M12 mm (0 in) |
| Thread Direction | RH |
| Material | STEEL |
| Thickness | 10.8 mm (0.425 in) |
| Thread Size (Diameter × Pitch) | M12X1.75 mm |
| Thread | Coarse Thread UNC |
| Height | 11 mm |
| Drive Chain | 18 mm (0.709 in) |
| Nut Model | Hex Nut |
| Thread Size (in – TPI) | M12-1.75 in |
| Material Description | ISO 898-2 Class 12 Hardness |
| Coating | Zinc Flake-Black |
Compatible Equipment
- Generator Sets: 3516C, G3516, G3516C, 3512B, C4.4, C9, 3512E, DG30
- Track Loaders: 992, 972, 982, 993, 973K, 953, 995, 994K, 990K, 963K, 953K, 824C, 826K, 963, 834H
- Cold Planers: PL72, PL83, TH255C, PL87, SE60 VT XW, SE50 VT, PM620, PM622, PL61
- Compactors: CB1.7, CB1.8, 834K, CS12 GC, CB2.7, CP11 GC, 824K, CB16, CB2.5 GC, 815, C9.3B, CS54B, CB-44B, CS78B, CS68B, CS74B, 816, 814, CP12 GC, CP56B, CB2.5, CB2.9, CP54B, CS11, CS12, CS56B, CW-34, CB2.7 GC, 825K, CS7, CB-66B, CW-16, CC2.7 GC, CB-64B, CS79B, C13B, CB10, CB13, CB15, CS64B
- Engines: C13, C27, C15, C32, C175-16, C18
- Excavators: 305C CR, 307.5, 390F L, 308D, 308E, 307E, 305, 301.7D, 305E2 CR, 313, 6060, 6020B, 621K, 120 GC, XQP200, 3516B, 657G, 301.8, 637K, 3512C, 3516E, 6030, SE60 V XW, 6040, 305 CR, 432, 6015, 637E, 6015B, 621H, 312 GX, 390F, 416F2, 434F2, 3508B, 336D L, 312 GC, 345 GC, 320
- Asphalt Pavers: AP655F, AP300F, AP355F, AP655F L, AD63, AD30, AD45, AP-600D
- Skid Steer Loaders: 24, 299D3 XE
- Motor Graders: 120, 14, 16M3, 18, 140 GC, 16M, 160K, 14M, 140K, 12K, 16
- Wheel Excavators: MD6250, MD6200, MD6310
- Dozers: D4, D8R, D6K2, D6T LGP, D7E, D6N, D9T, D8T, D9R, D6T, D6R XL, D5K2 XL, D6R LGP, D6R, D7, D11, D10T2, D11R, D7R II, D11T, D9, D8, D1, D10, D10T, D3K2 LGP, D7R, D6R II
- Compact Track Loaders: 299D3
- Mini Excavators: 306, 301.5, 301.7CR, 302CR, 307D, 308, 307, 307C, 307E2, 308.5, 310, 308E2, 306.5, 305E2, 301.7D CR, 305.5E, 305.5E2
- Wheel Loaders: 950 GC, 972L, 950L, 980, 966, RM500B, R2900G, R1700K, 950, R2900 XE, 986H, 980L, 988K, 938M, 962L, 966F, 924K, 950H, 966L, 980H, 972H, 966K, 926M, 938K, 966H, RM400, R3000H, R1300G, 834, 910, 836, R1600H, R1700 XE
- Off-Highway Trucks: 794 AC, 785D, 793F, 797F, 789D, 793D, 777E, 775G, 770G, 785, 793, 777, 798 AC, 730, 740B, 789, 772G, 796 AC, 7495, 725C2, 735, 773E, 777D, 740 GC, 740, 773D, 745, 725, 745C, 773
