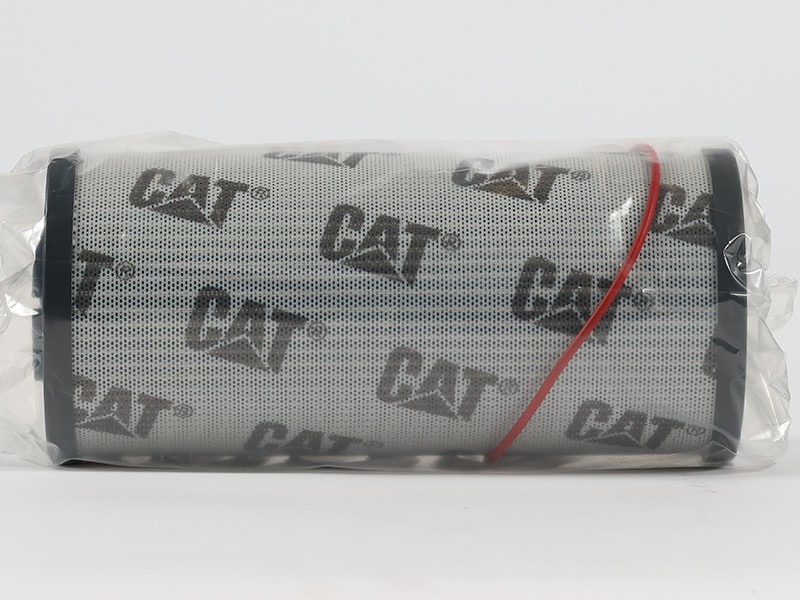

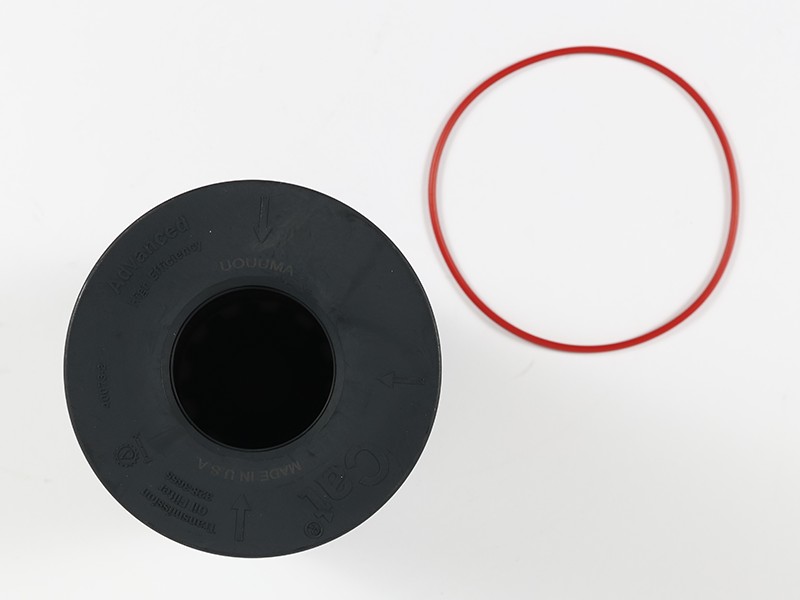

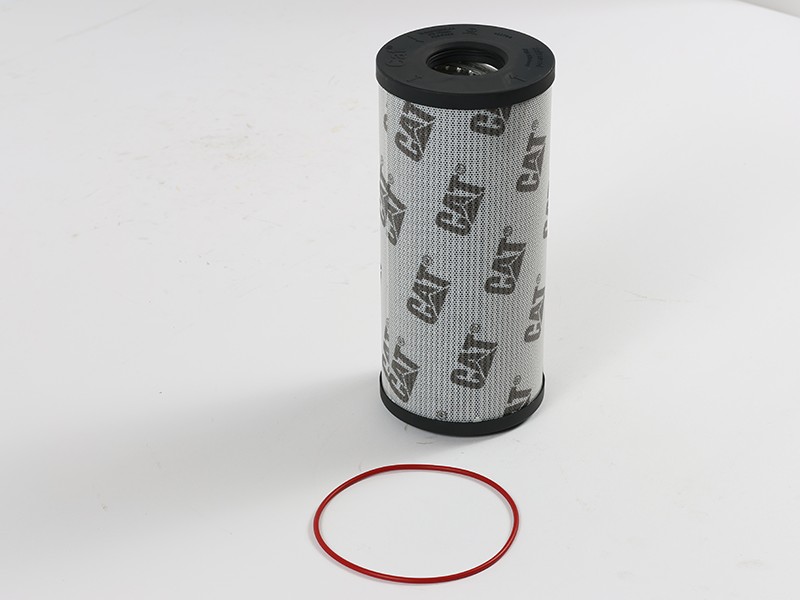

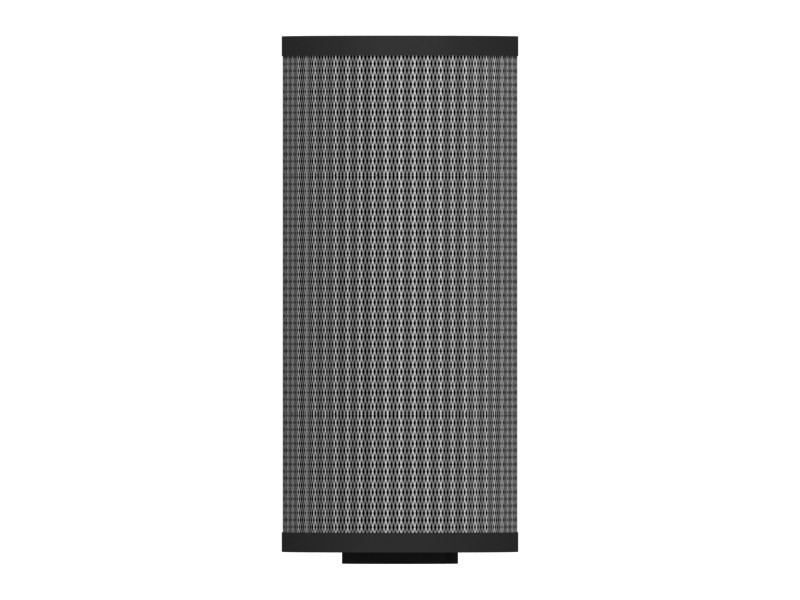

328-3655 Hydraulic/Transmission Oil Filter
Protect your machine with Cat® parts hydraulic transmission oil filters. The High Efficiency 328-3655 power train filter provides contamination protection to help improve the overall performance of your Cat® machine.
Description
Cat® hydraulic filters isolate contaminants and abrasives in high-pressure hydraulic systems to keep them from wearing down tight-tolerance systems, providing optimal protection. Cleanliness is key to keeping sensitive hydraulic systems properly lubricated.
Specifications
| Material | Fluoroelastomer (FKM) Rubber |
|---|---|
| Efficiency Rating | Advanced Efficiency |
| Filter Type | Cartridge |
| Diameter | 121 mm (4.764 in) |
| Length | 270.1 mm (10.634 in) |
| Flow Direction | Out-to-In |
| Efficiency Category | Advanced High Efficiency |
Compatible Equipment
- Motor Graders: 14, 16, 18, 16M, 140K, 12K, 160K, 14M, 120H, 12H, 140H, 16M3
- Generator Sets: 3512B, C4.4
- Cold Planers: TH55-E70
- Dozers: D10T, D6T, D6R, D6N, D9T, D6R III, D7R II, D7R, D8T, D6R XL, D10R
- Excavators: 3512C
- Wheel Loaders: 966 GC
- Off-Highway Trucks: 785D, 797F, 785, 794 AC, 796 AC, 789, 793F, 789D, 773F, 798 AC, 793
- Asphalt Pavers: AD63
Additional information
| Machine Model | 120H, 12H, 12K, 14, 140H, 140K, 14M, 16, 160K, 16M, 16M3, 18, 3512B, 3512C, 773F, 785, 785D, 789, 789D, 793, 793F, 794 AC, 796 AC, 797F, 798 AC, 966 GC, AD63, C4.4, D10R, D10T, D6N, D6R, D6R III, D6R XL, D6T, D7R, D7R II, D8T, D9T, TH55-E70 |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Dozers, Motor Graders, Off-Highway Trucks, Asphalt Pavers, Cold Planers, Generator Sets |
| Part Source | Genuine OEM |
