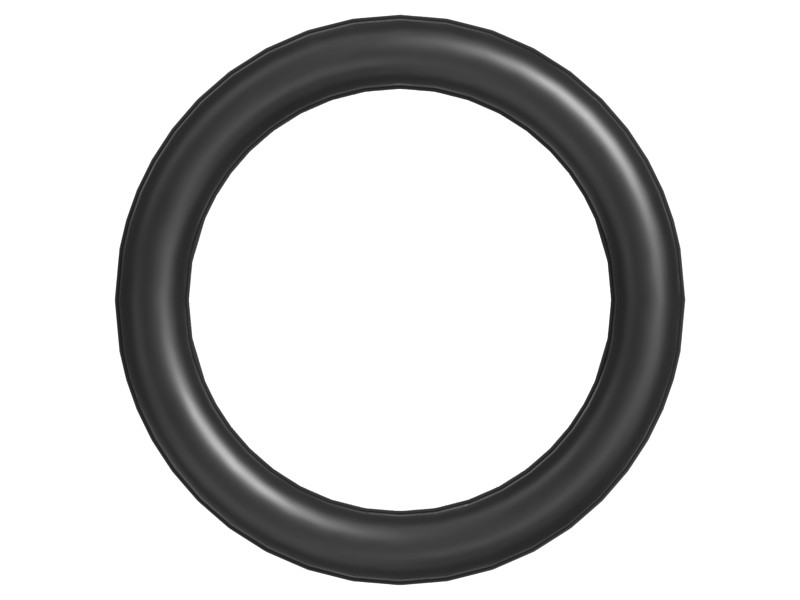

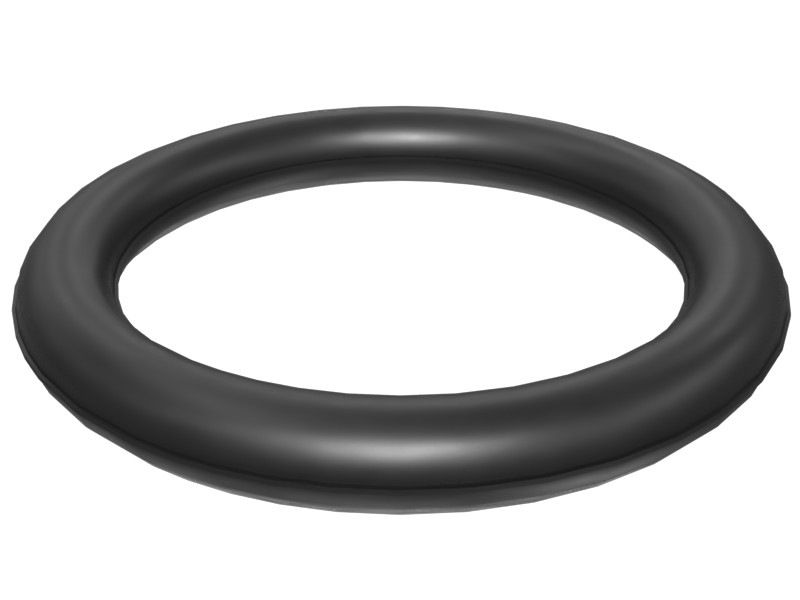

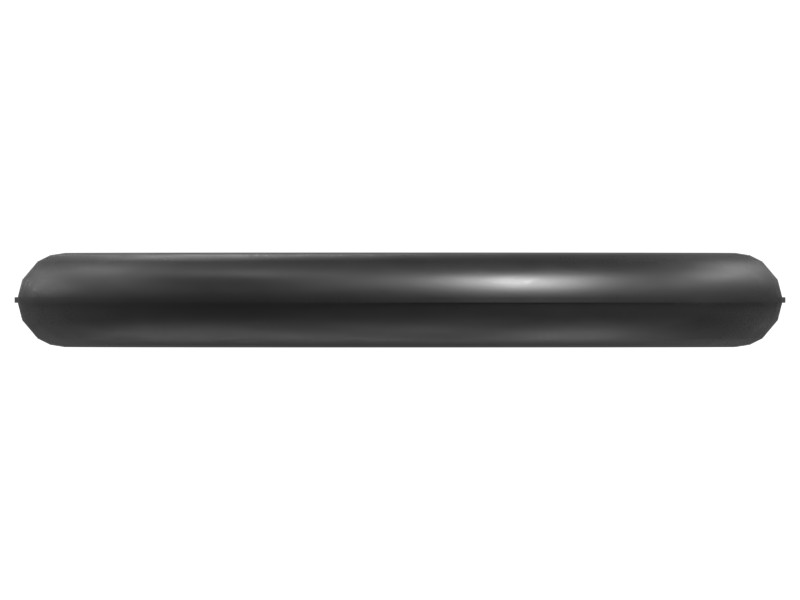

327-7241 14.8 mm ID O-Ring
Cat® 14.8 mm ID O-ring prevents fuel leaks and ensures clean, efficient fuel delivery to the engine.
Description
The O-ring is part of the secondary fuel filter and helps ensure efficient, reliable machine operation. It is made of a strong, durable material such as rubber to ensure strength and withstand harsh operating conditions. It forms a tight seal between the filter housing and the filter element, preventing fuel leakage and ensuring filtered fuel flows properly to the engine.
Attributes
- Ensures filtered fuel flows smoothly through the secondary filter and reaches the engine efficiently
- 70 DURO FKM offers excellent chemical resistance and elasticity
Applications
The O-ring forms a tight barrier between the filter housing and the filter element, effectively preventing fuel leakage as well as contamination and potential engine damage.
Specifications
| Material | FKM (70) |
|---|---|
| Material Hardness | 70A |
| Polymer | FKM (Fluorocarbon) |
| Seal Inside Diameter | 14.80 mm |
| SAE AS568 Dash Size | 0 |
| Outside Diameter | 0.77 mm (19.6 in) |
| Coating | None |
| Remarks | Dimensions and material descriptions are for reference only. Color may differ from the image. |
| Cross-Section Diameter | 2.4 mm (0.09 in) |
| Inside Diameter | 14.8 mm (0.58 in) |
Compatible Equipment
- Excavators: 320D L, 323D L, 320D GC, 320D FM, 320D
