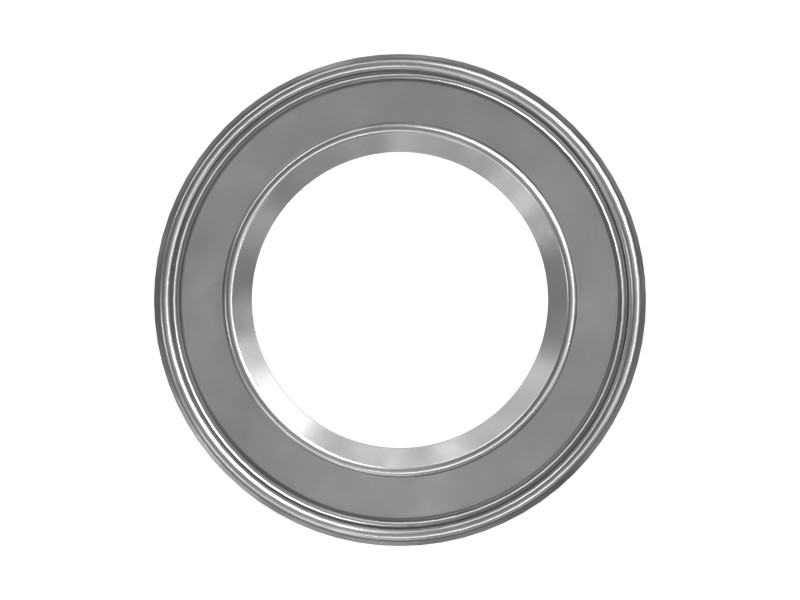

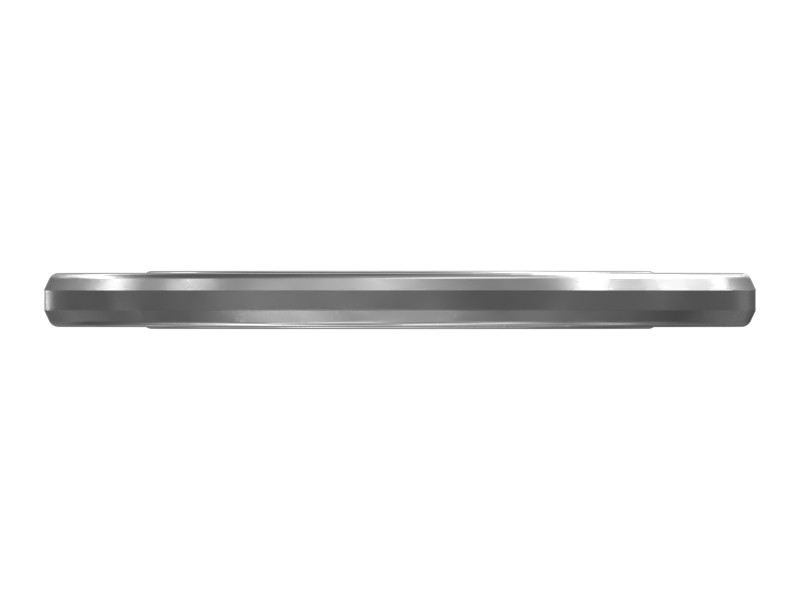

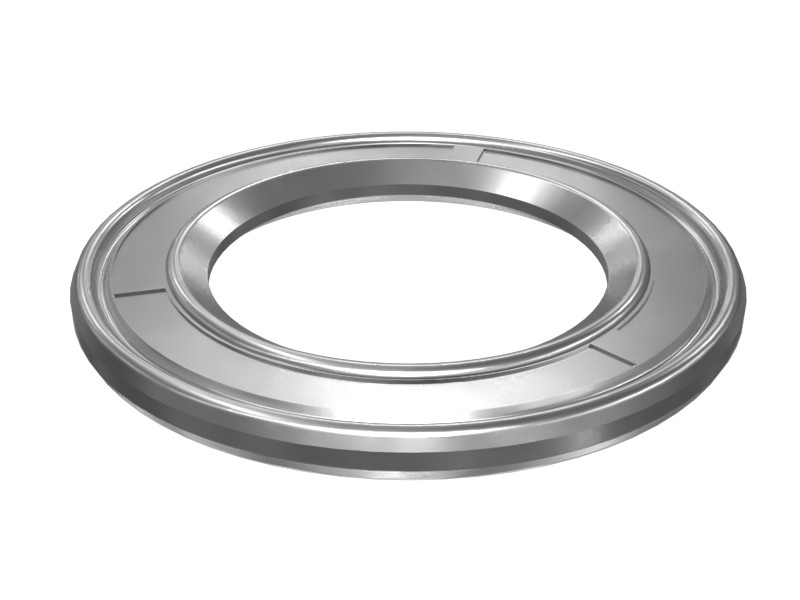

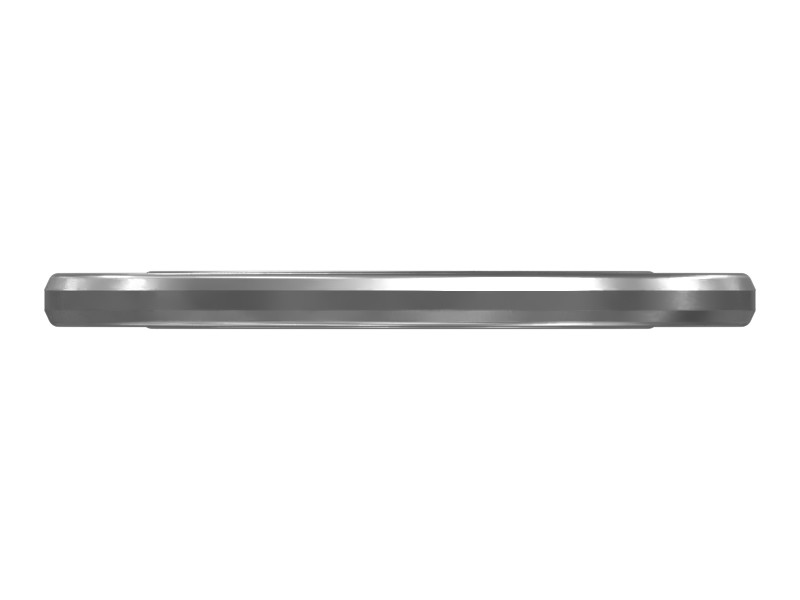

327-0283 28.37 mm OD Integral Cutting Edge Bonded Gasket

Description

Cat® edge-bonded seals are used in static sealing applications and are designed with rubber bonded to a plastic or metal carrier to prevent leakage and contamination.

Features

Cat edge-bonded seals are easy to assemble, offer high bolt load retention and conform better to the surfaces of mating parts. Cat edge-bonded seals are made of materials compatible with the fluids, temperatures and pressures in Cat engines and machines. These materials resist wear and extrusion and give the seal excellent compression set resistance. Genuine Cat seals protect your investment.

Specifications

Material	Alloy Zinc
Material Thickness	1.55 mm (0.061 in)
Inside Diameter	17.14 mm (0.67 in)
Outside Diameter	28.37 mm (1.12 in)
Primary Seal Material	HNBR
Width	2.29 mm (0.09 in)
Seal Shape	Round
Material Description	HNBR rubber has a service temperature range of -40 to 115C and is resistant to fuel, oil and lubricants, while providing excellent abrasion and cut resistance.

Compatible Equipment

Track Loaders: 993, 992, 963, 995, 953, 972, 982, 963K, 973K, 826K, 953K, 990K, 994K
Cold Planers: PL87, PL83, PL72, PL61
Compactors: CS12, 815, 814, 816, CP11 GC, CS7, 825K, CS11, 824K, 834K, CP54B, CW-34, CS68B, CS78B, CP56B, CS56B, CP12 GC, CS74B, CS12 GC, CS79B, CS54B, CB10, CS-54B, CS64B
Excavators: 305, 432, 305 CR, 6015, 6040, 6060, 637K, 3508B, 621H, 6015B, 621K, 6020B
Asphalt Pavers: AD63
Skid Steer Loaders: 24
Motor Graders: 14, 120, 16, 18, 16M3
Wheel Excavators: MD6250, MD6310, MD6200
Dozers: D10, D9, D8, D11, D4, D6R II, D6T, D6T LGP, D8T, D1, D6K2, D10T2, D8R, D7, D6R, D6R XL, D6R LGP, D6N, D9T, D7E, D11T
Mini Excavators: 308, 310, 306, 306.5, 308.5
Wheel Loaders: RM400, 836, 966, 950, 910, 980, 926M, 950L, 962L, 834, 924K, 938M, 966K, 988K, 938K, 966L, 972L, 980L, RM500B, R1700K, R1700 XE
Off-Highway Trucks: 777, 797F, 740, 730, 745, 740 GC, 773, 794 AC, 798 AC, 785, 785D, 789D, 796 AC, 789, 735, 793, 772G, 740B, 770G, 775G, 745C, 793D, 725, 777D, 777E, 725C2

Machine Model	120, 14, 16, 16M3, 18, 24, 305, 305 CR, 306, 306.5, 308, 308.5, 310, 3508B, 432, 6015, 6015B, 6020B, 6040, 6060, 621H, 621K, 637K, 725, 725C2, 730, 735, 740, 740 GC, 740B, 745, 745C, 770G, 772G, 773, 775G, 777, 777D, 777E, 785, 785D, 789, 789D, 793, 793D, 794 AC, 796 AC, 797F, 798 AC, 814, 815, 816, 824K, 825K, 826K, 834, 834K, 836, 910, 924K, 926M, 938K, 938M, 950, 950L, 953, 953K, 962L, 963, 963K, 966, 966K, 966L, 972, 972L, 973K, 980, 980L, 982, 988K, 990K, 992, 993, 994K, 995, AD63, CB10, CP11 GC, CP12 GC, CP54B, CP56B, CS-54B, CS11, CS12, CS12 GC, CS54B, CS56B, CS64B, CS68B, CS7, CS74B, CS78B, CS79B, CW-34, D1, D10, D10T2, D11, D11T, D4, D6K2, D6N, D6R, D6R II, D6R LGP, D6R XL, D6T, D6T LGP, D7, D7E, D8, D8R, D8T, D9, D9T, MD6200, MD6250, MD6310, PL61, PL72, PL83, PL87, R1700 XE, R1700K, RM400, RM500B
Equipment Type	Excavators, Mini Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers
Part Source	Genuine OEM

Machine Model

120, 14, 16, 16M3, 18, 24, 305, 305 CR, 306, 306.5, 308, 308.5, 310, 3508B, 432, 6015, 6015B, 6020B, 6040, 6060, 621H, 621K, 637K, 725, 725C2, 730, 735, 740, 740 GC, 740B, 745, 745C, 770G, 772G, 773, 775G, 777, 777D, 777E, 785, 785D, 789, 789D, 793, 793D, 794 AC, 796 AC, 797F, 798 AC, 814, 815, 816, 824K, 825K, 826K, 834, 834K, 836, 910, 924K, 926M, 938K, 938M, 950, 950L, 953, 953K, 962L, 963, 963K, 966, 966K, 966L, 972, 972L, 973K, 980, 980L, 982, 988K, 990K, 992, 993, 994K, 995, AD63, CB10, CP11 GC, CP12 GC, CP54B, CP56B, CS-54B, CS11, CS12, CS12 GC, CS54B, CS56B, CS64B, CS68B, CS7, CS74B, CS78B, CS79B, CW-34, D1, D10, D10T2, D11, D11T, D4, D6K2, D6N, D6R, D6R II, D6R LGP, D6R XL, D6T, D6T LGP, D7, D7E, D8, D8R, D8T, D9, D9T, MD6200, MD6250, MD6310, PL61, PL72, PL83, PL87, R1700 XE, R1700K, RM400, RM500B

Equipment Type

Excavators, Mini Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers

Part Source

Genuine OEM
