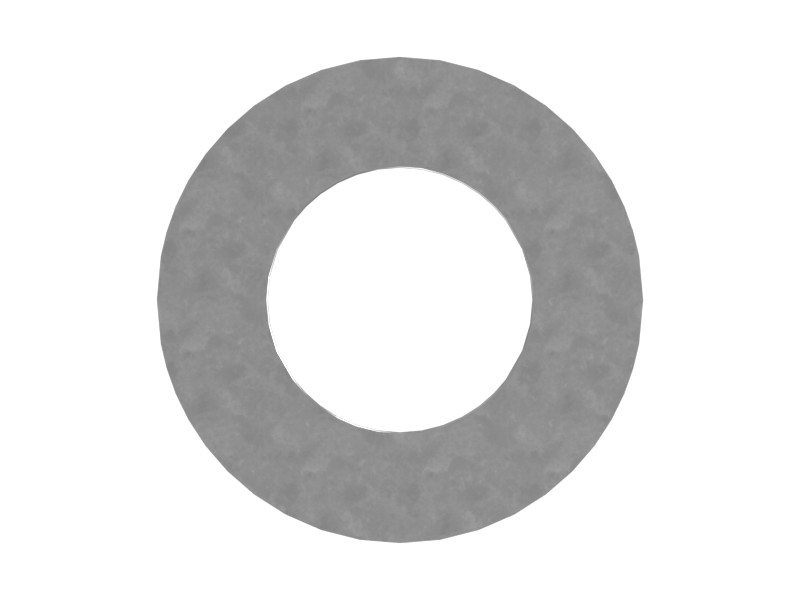

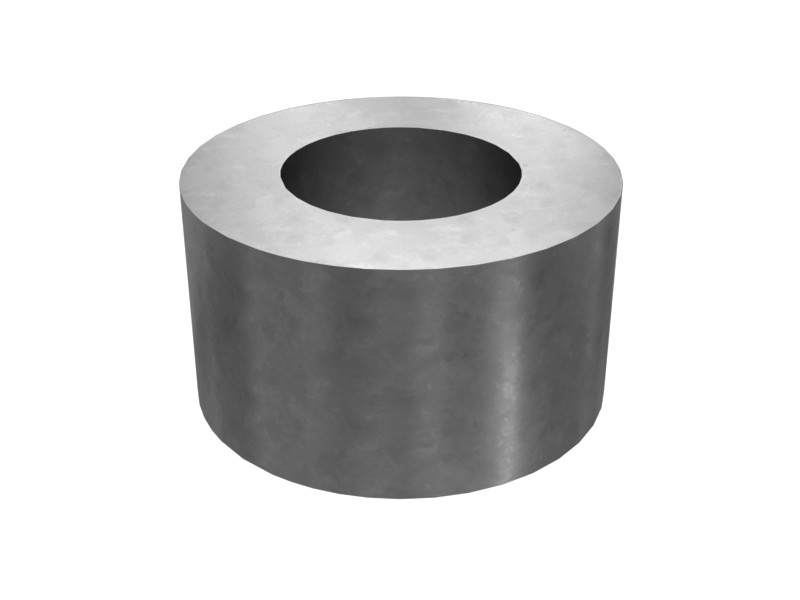

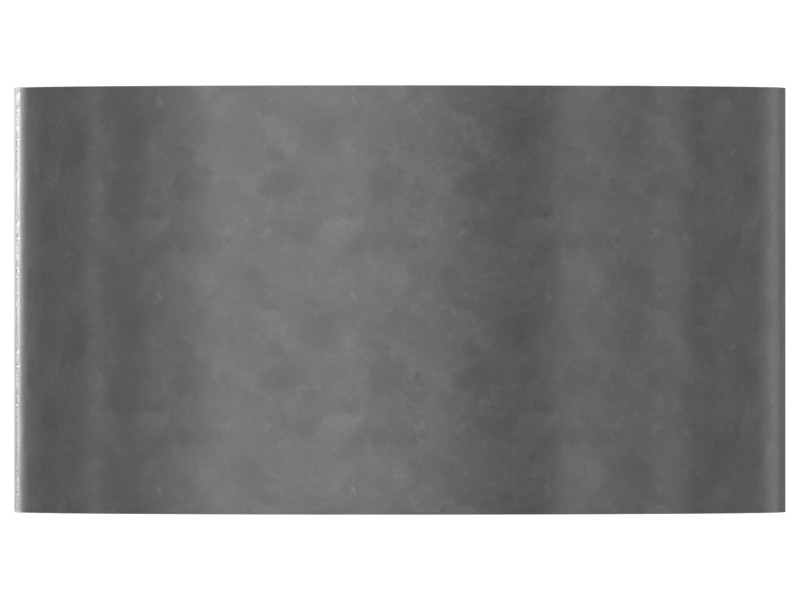

325-9001 22 mm Thick Shim
Cat® 22 mm thick shim provides positioning assistance between components to ensure precise spacing in hydraulic control valve supports.
Description
A shim is a fastener used in the support unit of a hydraulic control valve. The function of the shim is to provide support between the support plate and the bolts of the support unit, which is used to maintain the integrity of the unit.
Attributes
- Provides support for load distribution, prevents stress concentration and improves overall structural integrity
- Provides mechanical support to keep the plate from deforming under high pressure or temperature changes
Applications
The shim is used to provide the necessary support and stability for the mounting structure of the hydraulic control valve support unit.
Specifications
| Gasket Type | Flat |
|---|---|
| Thickness | 22 mm (0.866 in) |
| Coating | Mechanical Zinc |
| Inside Diameter | 22 mm (0.866 in) |
| Material | Carbon Steel |
| Outside Diameter | 40 mm (1.575 in) |
Compatible Equipment
- Motor Graders: 349 GC
- Excavators: 374, 323GC, 336, 320 GC, 320, 336D2 XE, 336F L XE, 336F, 336E L, 323, 330 GC, 336F L, 336 GC, 340, 320E, 326, 330GC, 329E, 336E LH, 325, 333 GC, 326 GC, 333, 352, 355, 320 GX, 323 GX, 323 GC, 349, 350, 345 GC, 352F, 335, 395, 350MHPU, 320D3, 3101, 329E L, 336F LN, 336E LN, 336E, 336E H, 335F LCR, 326GC, 330
Additional information
| Machine Model | 3101, 320, 320 GC, 320 GX, 320D3, 320E, 323, 323 GC, 323 GX, 323GC, 325, 326, 326 GC, 326GC, 329E, 329E L, 330, 330 GC, 330GC, 333, 333 GC, 335, 335F LCR, 336, 336 GC, 336D2 XE, 336E, 336E H, 336E L, 336E LH, 336E LN, 336F, 336F L, 336F L XE, 336F LN, 340, 345 GC, 349, 349 GC, 350, 350MHPU, 352, 352F, 355, 374, 395 |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
