Description
HVAC systems provide heating, cooling, and filtering of fresh and/or recirculated air in the operator compartment of Cat machines. Cat service parts can be used to repair and replace components and systems of the HVAC system in ruggedized Cat heavy equipment. Built to the quality your equipment requires, to meet your expectations.

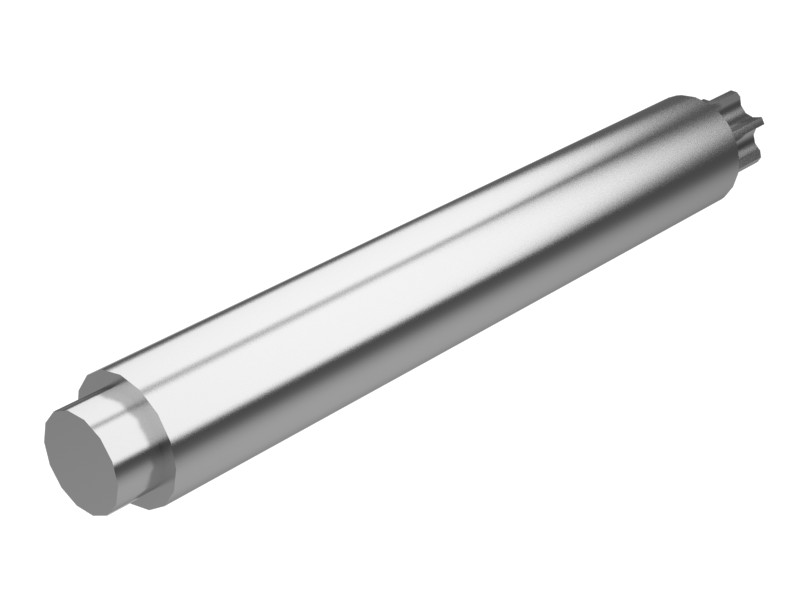

Features
- Zinc plated hardened steel stud
- M8 threads on both ends
- Star drive
- For use with HVAC dual-seal fittings
Applications
Cat studs are a common stock item for small repair shops and field service trucks and can be used to service and repair HVAC systems on heavy equipment. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Alloy Zinc |
|---|---|
| Outside Diameter | 8 mm (0.32 in) |
| Thread Size | M8X1.25-6G (2 Places) mm |
| Pilot OD | 6 mm (0.24 in) |
| Length | 52.4 mm (2.06 in) |
Compatible Equipment
- Generator Sets: 3516C
- Track Loaders: 990K, 995, 993, 826K, 994K
- Cold Planers: PL87, PL83, PL72
- Motor Graders: 14
- Compactors: 834K, 824K, 825K, 816
- Wheel Excavators: MD6200, MD6310, MD6250
- Dozers: D8, D6T LGP, D11T, D8T, D9T, D6T, D7, D9, D11, D10T2, D8R, D6R, D6R XL, D6N, D6R LGP, D10, D6R II
- Excavators: 637K, 3508B, 6040, 621K, 621H, 3516B, 6060, 6020B
- Wheel Loaders: 836, R1700 XE, 966K, 988K, 986H, R1700K
- Off-Highway Trucks: 785D, 797F, 785, 772G, 793, 740B, 789, 789D, 798 AC, 770G, 725C2, 775G, 745C, 796 AC, 793D, 794 AC
- Asphalt Pavers: AD63
- Skid Steer Loaders: 24
Additional information
| Machine Model | 14, 24, 3508B, 3516B, 3516C, 6020B, 6040, 6060, 621H, 621K, 637K, 725C2, 740B, 745C, 770G, 772G, 775G, 785, 785D, 789, 789D, 793, 793D, 794 AC, 796 AC, 797F, 798 AC, 816, 824K, 825K, 826K, 834K, 836, 966K, 986H, 988K, 990K, 993, 994K, 995, AD63, D10, D10T2, D11, D11T, D6N, D6R, D6R II, D6R LGP, D6R XL, D6T, D6T LGP, D7, D8, D8R, D8T, D9, D9T, MD6200, MD6250, MD6310, PL72, PL83, PL87, R1700 XE, R1700K |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers, Generator Sets |
| Part Source | Genuine OEM |
