Description

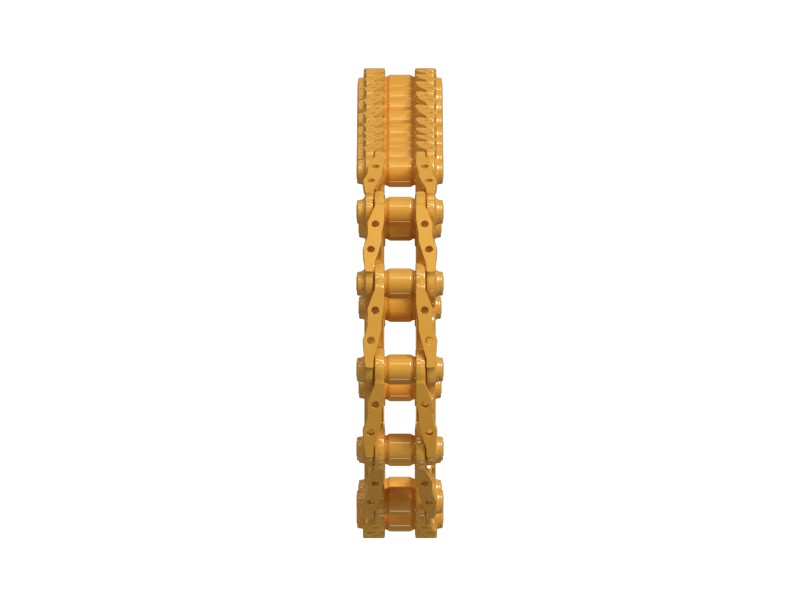

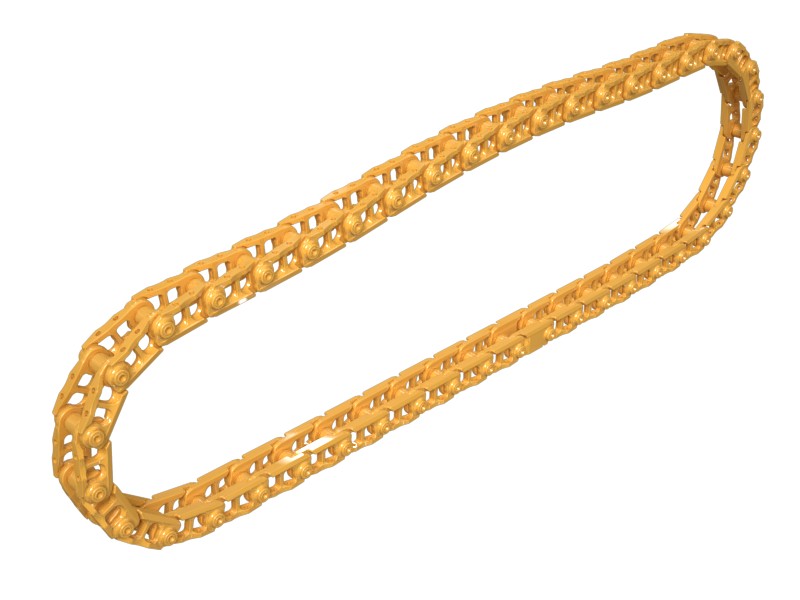

The link assembly is driven by the sprocket and final drive. It supports the weight of the machine, provides a rail for the machine to travel on, and provides a place for the track shoes to attach.
Features
Cat® Sealed and Lubricated Track (SALT) seals lubricant inside the undercarriage system and keeps abrasives out. It eliminates internal pin and bushing wear, reducing maintenance costs and downtime while increasing service life and serviceability. Combined with a track design matched to the machine and working environment, SALT provides a versatile undercarriage configuration for a wide range of ground conditions.
Specifications
| Master Link Type | 5 Tooth Master |
|---|---|
| Seal and Lubrication Type | SALT |
| Main Bolt Thread | 0.5625 |
| Track Bolt Thread | 0.5625 |
| Grease Lubricated Track Type | Not Applicable |
| Track Reinforcement System | Not Applicable |
| Number of Track Links | 43 |
| Bolt Size | 9/16 mm (9/16 in) |
| Link Height | 88 mm (3.465 in) |
| Link Inside Spacing at Sprocket | 56.5 mm (2.224 in) |
| Link Outside Spacing | 120.5 mm (4.744 in) |
| Pin Length | 156.5 mm (6.161 in) |
| Track Shoe Bolt Hole Spacing A | 54.9 mm (2.161 in) |
| Bolt Hole Diameter | 14.86 mm (0.585 in) |
| Link Inside Spacing at Roller | 60.5 mm (2.382 in) |
| Bushing Outside Diameter | 54 mm (2.126 in) |
| Track Shoe Bolt Hole Spacing C | 104.8 mm (4.126 in) |
| Number of Links | 43 |
| Rail to Pin Boss Outside Diameter | 27.3 mm (1.075 in) |
| Track Shoe Bolt Hole Spacing B | 88.9 mm (3.5 in) |
| Pin Retention System | Press Fit |
| Rotating Bushing Track | No RBT |
| Rail to Bushing Outside Diameter | 21.8 mm (0.858 in) |
| Track Pitch | 155.6 mm (6.1 in) |
| Undercarriage System | HD |
| Wear Sensor | No |
Compatible Equipment
- Dozers: D3K2 LGP, D1
