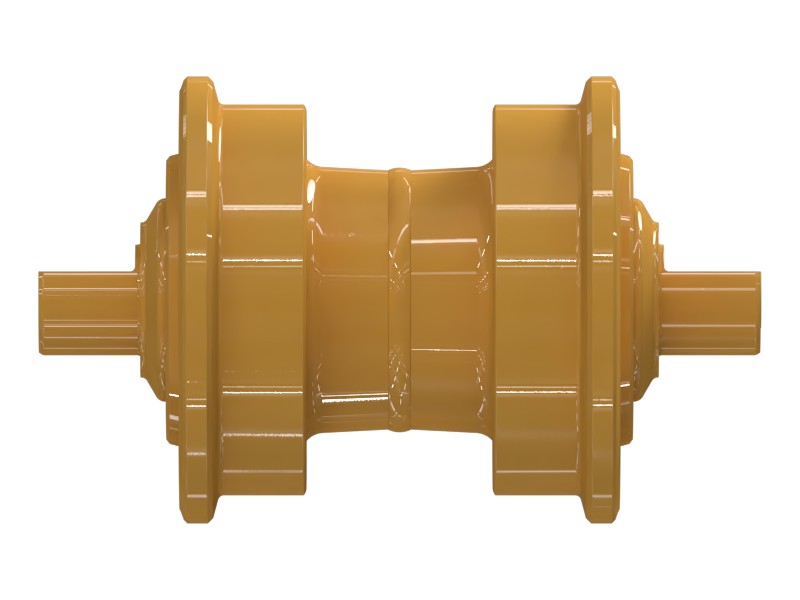

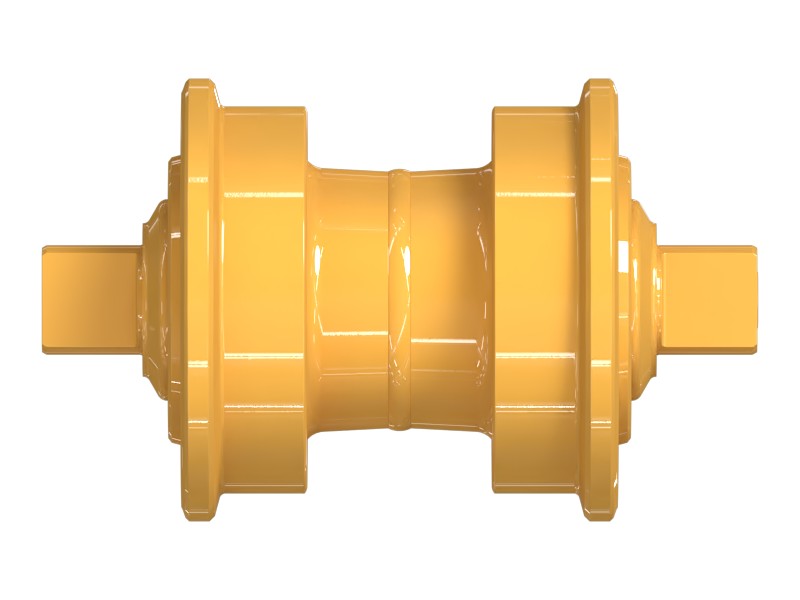

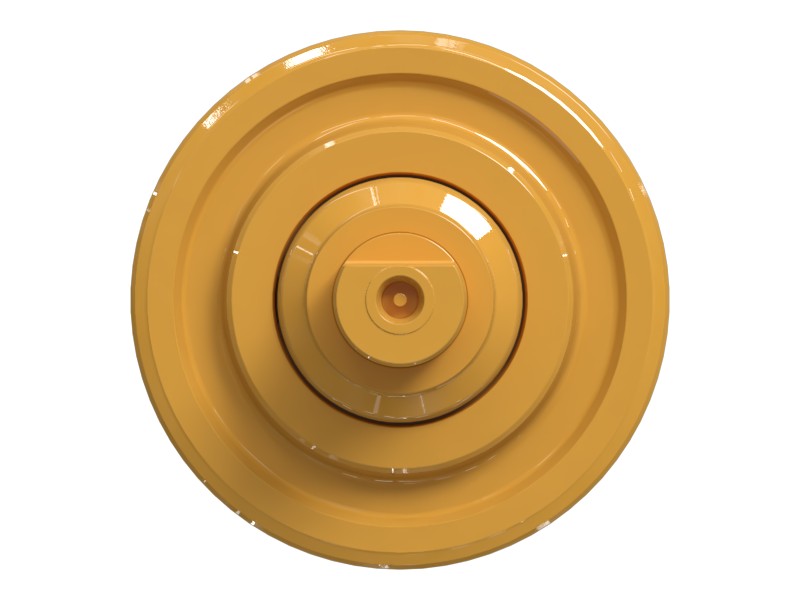

323-5925 Single Flange Track Roller Assembly
Track Roller
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
Track rollers support and guide the machine during tracked operation.
Specifications
| Application | Oil Resistance |
|---|---|
| Undercarriage System | GD |
| Link Outside Spacing | 250 mm (9.843 in) |
| Flange Diameter | 255 mm (10.04 in) |
| Flange Type | Single Flange |
| Tread Diameter | 223 mm (8.78 in) |
| Shaft Outside Diameter | 62.69 mm (2.468 in) |
| Outer Flange Diameter | 254.5 mm (10.02 in) |
| Mounting Bolt Lateral Spacing | 114.3 mm (4.5 in) |
| Mounting Bolt Axial Spacing | 368.3 mm (14.5 in) |
| Inside Spacing | 106 mm (4.173 in) |
| Compatible Carrier Roller | No |
| Mounting Cap Bolt Hole Diameter | 26.5 mm (1.043 in) |
| Shaft Length | 410.37 mm (16.156 in) |
| Mounting Cap Bolt Thread Size | M24 |
| Mounting Width | 294.39 mm (11.59 in) |
Compatible Equipment
- Track Loaders: 973K
- Dozers: D7R II, D7E, D7R
