Description

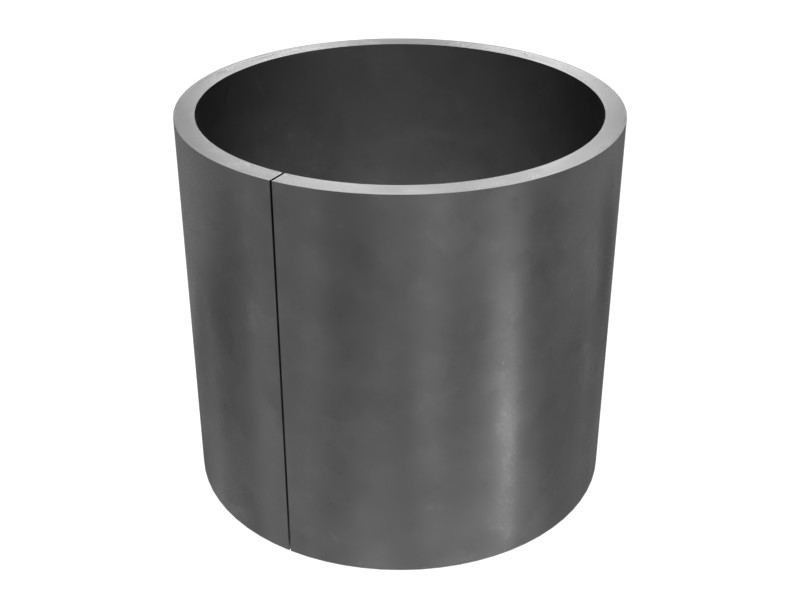

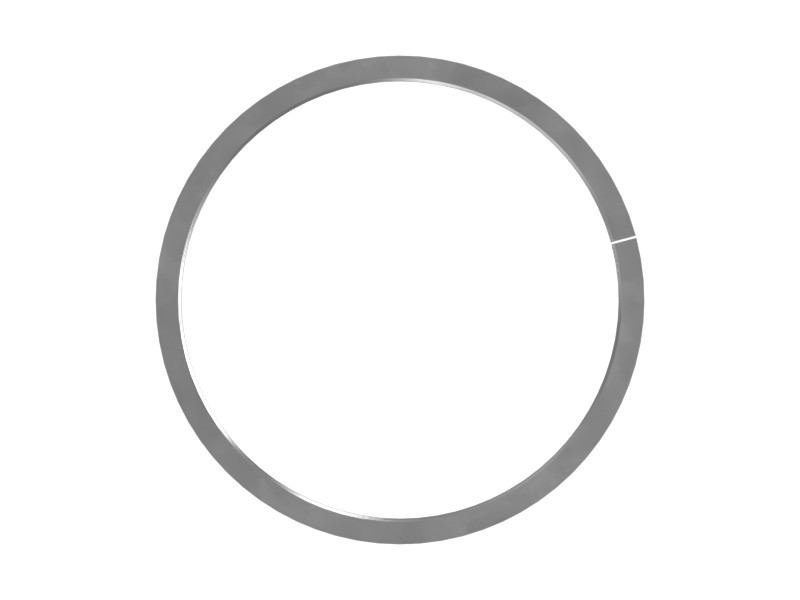

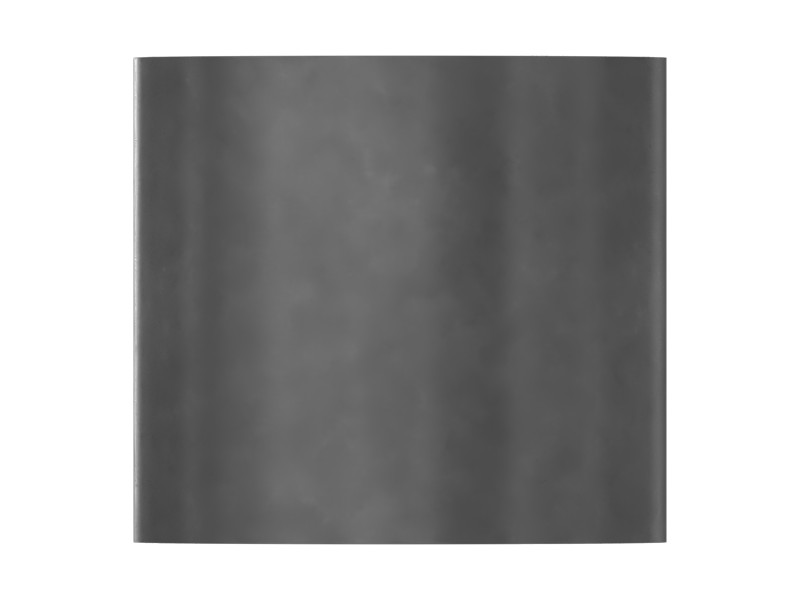

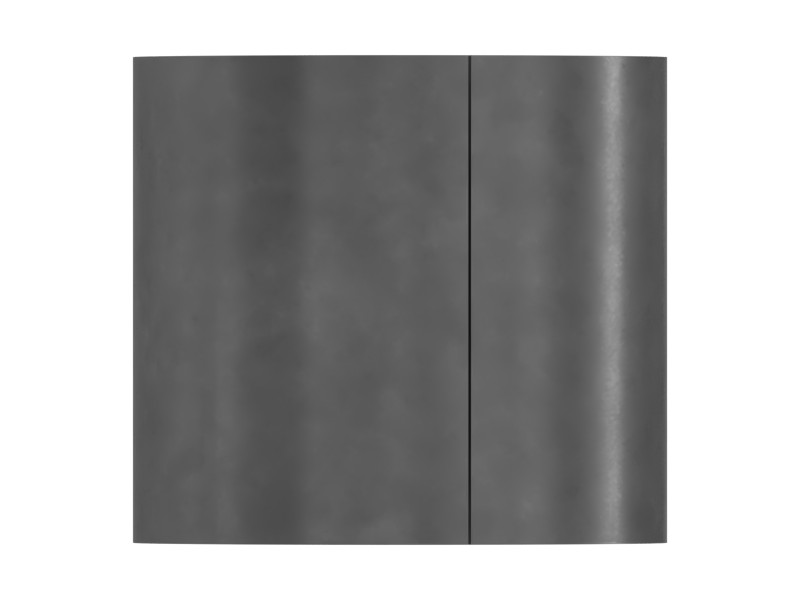

Service part used to support sliding between the rod group and the head group in the cylinder assembly.
Features
- Steel-backed bronze PTFE-filled bearing
- For use with 50 mm (1.97 in) diameter rod
- Inside Diameter: 50 mm (1.97 in)
- Outside Diameter: 55 mm (2.16 in)
- Height: 50 mm (1.97 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Height | 50 mm (1.97 in) |
|---|---|
| Inside Diameter | 50 mm (1.97 in) |
| Outside Diameter | 55 mm (2.16 in) |
| Material | Steel Backed Bronze Bearing |
Compatible Equipment
- Wheel Excavators: M315D, M320
- Excavators: 315F LCR, 432, 428F, 416F2
- Wheel Loaders: 938K, 938M
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
