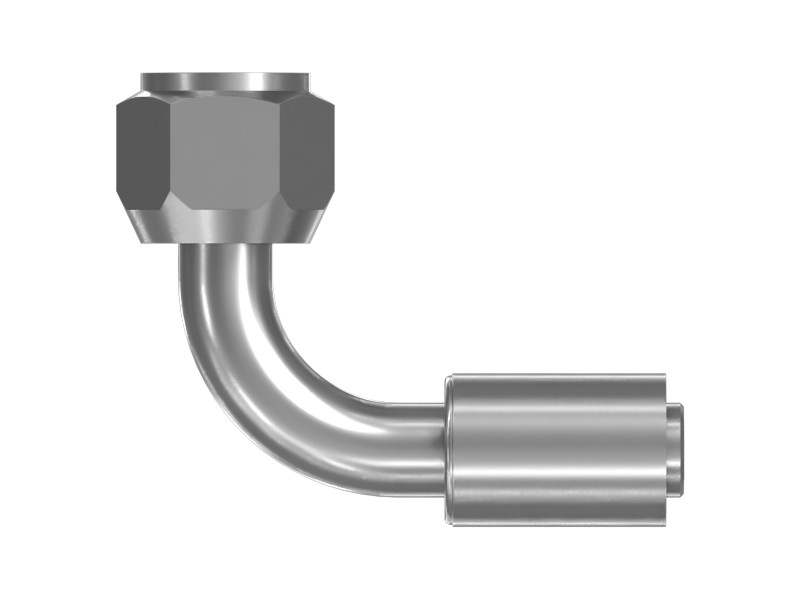

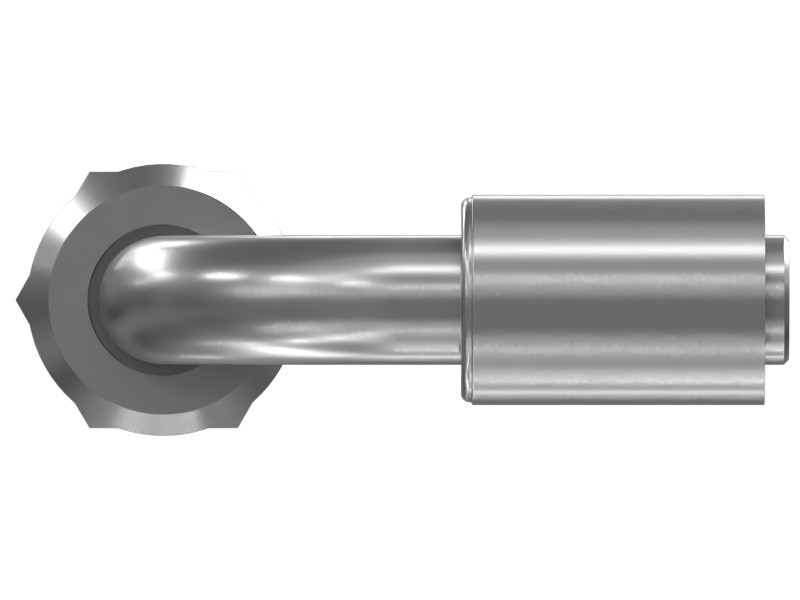

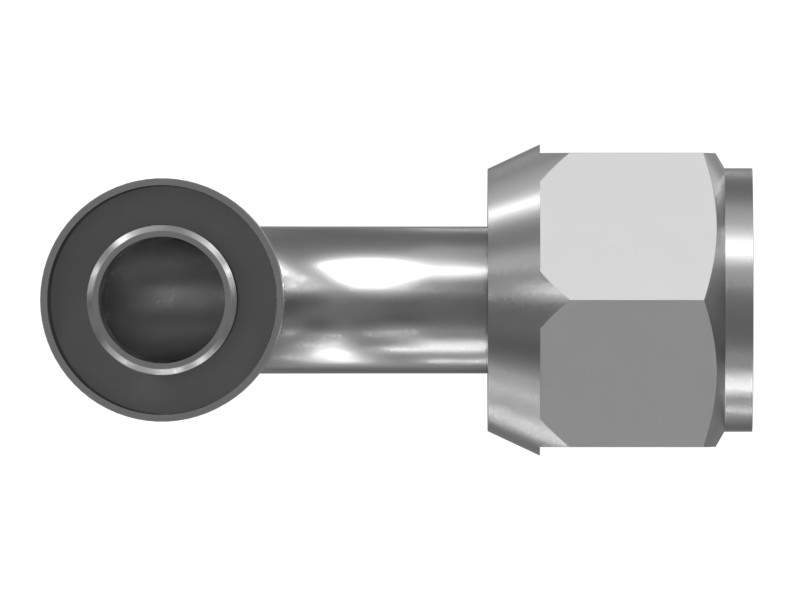

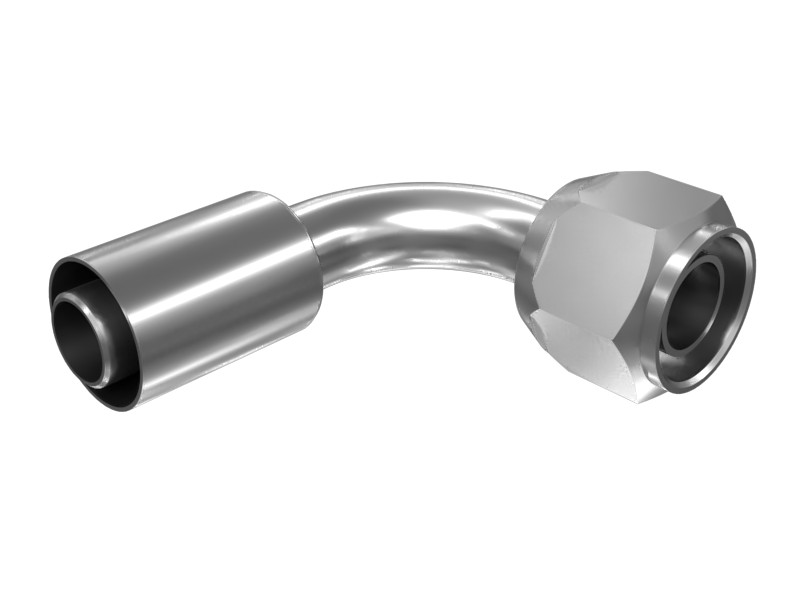

320-1777 15.9 mm ID Air Conditioning Coupling
Cat® Air Conditioner
Fitment data not listed — send us your machine model or serial number to confirm.
Description
Couplings Caterpillar designs a variety of couplings to meet market needs. Cat couplings work together with Cat hoses as a system and comply with specific standards
Specifications
| Hose Warning | Improper selection of hose and coupling combinations will void the warranty and may result in serious injury or death, property damage, or component and machine system failure. Cat® hose assembly products are designed and tested as a system to achieve reliable connections, maximizing hydraulic system safety and reliability. In addition, use of properly maintained, appropriate Caterpillar tooling is recommended to ensure hoses are crimped to specification. Using Caterpillar hose with another manufacturer's couplings, or Caterpillar couplings with another manufacturer's hose, may result in hose assemblies that are unreliable, unsafe or perform poorly. Caterpillar does not recommend or endorse this practice. For more information, refer to SAE J1273 Section 6.3 and ISO 17165-2 Section 6.3. |
|---|---|
| Hose Inside Diameter | 15.88 mm (0.625 in) |
| Hose Fitting Category | AC |
| Bend Angle | 90 Degrees |
| Connection Nominal Size | 12 |
| Connection Standard | A/C Tube O-Ring (Long Pilot) |
| Type | AC Coupling |
| Material | STEEL |
| Coating | Zinc Plated |
| Shape | 90 Degrees |
| Fitting | O-Ring Female Thread Tube (Long Pilot) |
| Thread Size | 1 1/16-14 in |
| Drop Length | 51 mm (2.008 in) |
| Length | 74 mm |
| Cutoff Factor | 38.1 mm |
| Recommended Hose Size | 15.9 mm |
Additional information
| Part Source | Genuine OEM |
|---|
