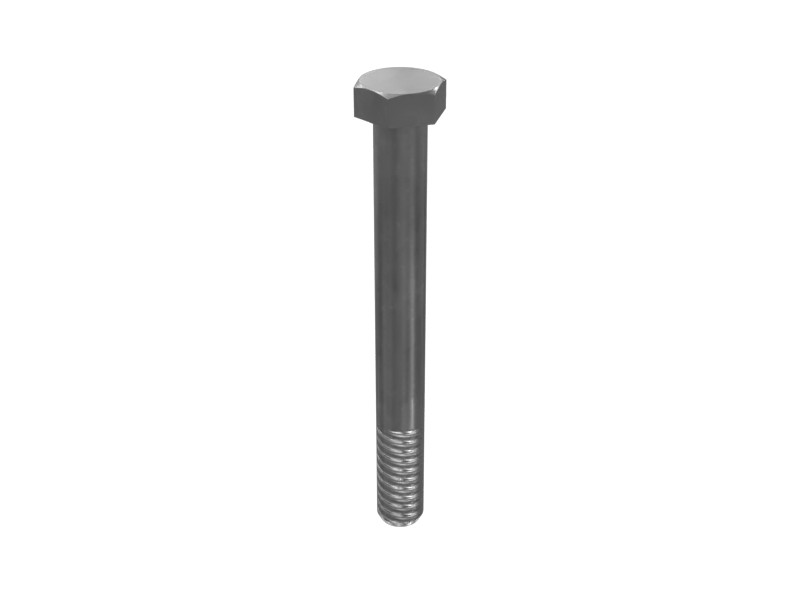

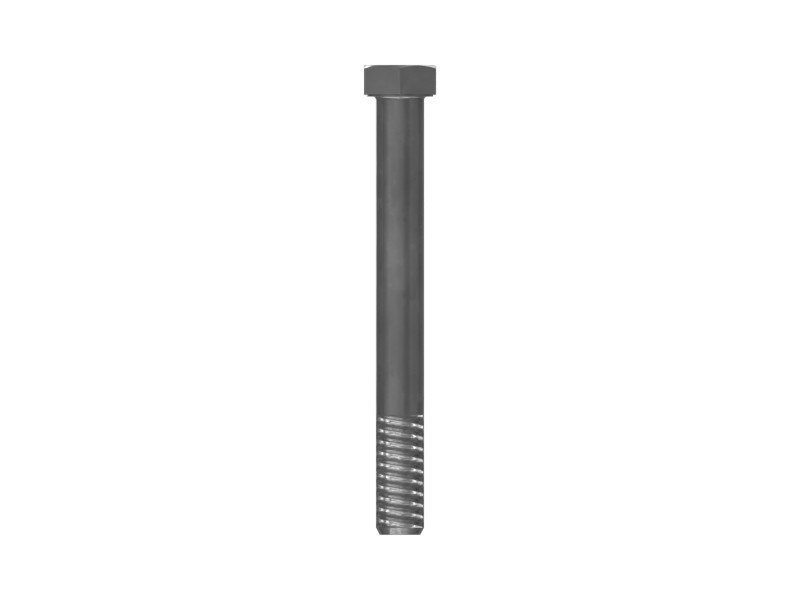

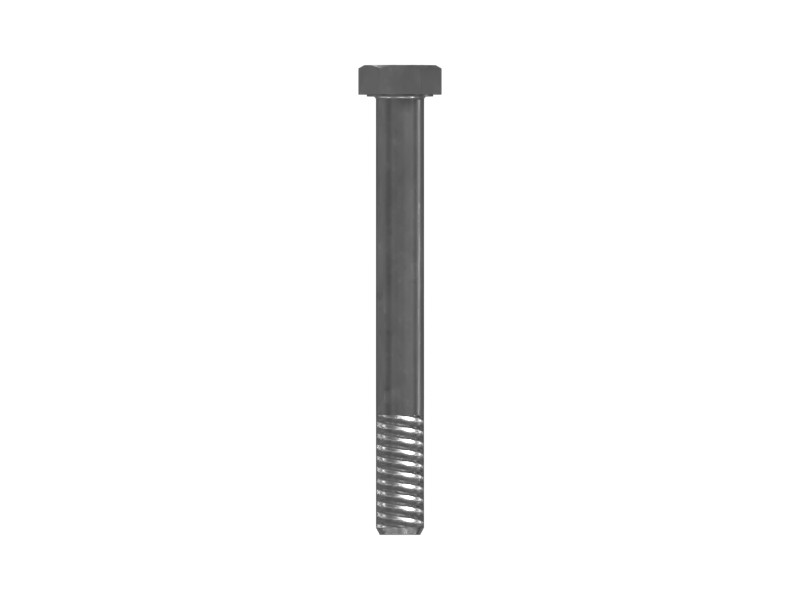

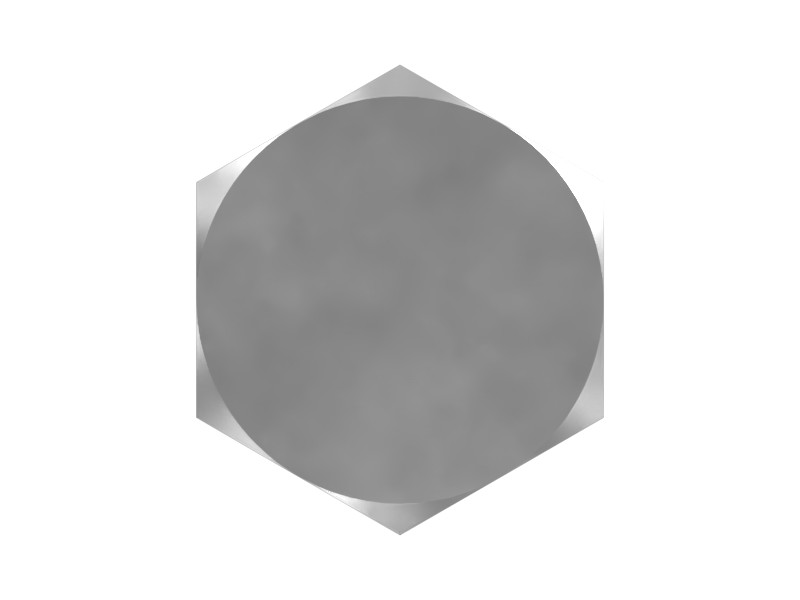

319-6698 M12x1.75 Thread Hex Head Bolt
Cat® hex head bolt for engine mounting brackets fastens into a threaded hole, providing a secure, reliable connection between two or more components
Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Hex head bolts/screws provide extremely strong tapping performance.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Locking Feature | None |
|---|---|
| Thread Size | M12 mm (0 in) |
| Thread Direction | RH |
| Class or Grade | Cat/ISO 898-1 Class 11.9 |
| Thread Size (Diameter × Pitch) | M12X1.75 mm |
| Bolt Length | 110 mm (4.331 in) |
| Bolt Type | Hex Head Bolt |
| Coating | Zinc Flake |
| Handle Length | 80 mm (3.15 in) |
Compatible Equipment
- Motor Graders: 140K, 12K, 160K, 14
- Generator Sets: 3512E
- Track Loaders: 972
- Excavators: 395, 6030
- Wheel Loaders: 972M, 966M, 966 GC
- Off-Highway Trucks: 797F, 793F, 798 AC, 796 AC, 794 AC
Additional information
| Machine Model | 12K, 14, 140K, 160K, 3512E, 395, 6030, 793F, 794 AC, 796 AC, 797F, 798 AC, 966 GC, 966M, 972, 972M |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Motor Graders, Off-Highway Trucks, Generator Sets |
| Part Source | Genuine OEM |
