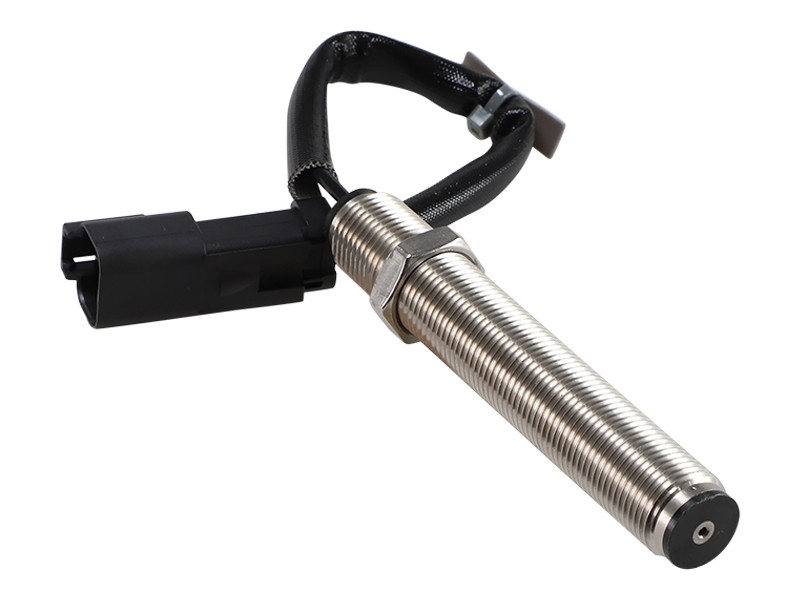

318-1180 Magnetic Speed Sensor
Cat® wiring harness magnetic high-output speed sensor is used to detect vehicle speed and is suitable for multiple systems in the wiring harness
Description
Cat passive speed sensors do not require any external power supply. The output signal is alternating current, and the waveform function of the actuator is generally sinusoidal in nature. Both voltage and frequency are proportional to the surface speed of the actuator as it passes the sensor pole piece. Nylon is injected through the housing into a mold over the magnet and coil.
Features
- High output
- Available with a variety of fixed-length noses and depth-adjustable housings (with locknut)
Applications
- High position accuracy; not recommended for applications below 50 rpm
- Low output voltage
- Typical applications include engine camshaft and transmission output
Specifications
| Thread Length | 81 mm (3.19 in) |
|---|---|
| External Thread Size | 5/8 – 18 |
| Overall Length | 101.8 mm (4.01 in) |
| Material | Stainless Steel |
| Lead Length | 150 mm (5.91 in) |
Compatible Equipment
- Wheel Loaders: 966H, R1700G, R1600H
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
