Description
Cat hoses are designed to maximize equipment uptime. These flexible hoses are used to transport fluids or gases and are precisely engineered for each unique application. Every Cat hose uses quality bulk materials and workmanship and is built to meet the pressure and flow requirements of the application, ensuring long machine life and proper operation. Every Cat hose is engineered with the specific application in mind and manufactured and cut to precise lengths to ensure proper service and easy connection to existing systems on Cat machines.

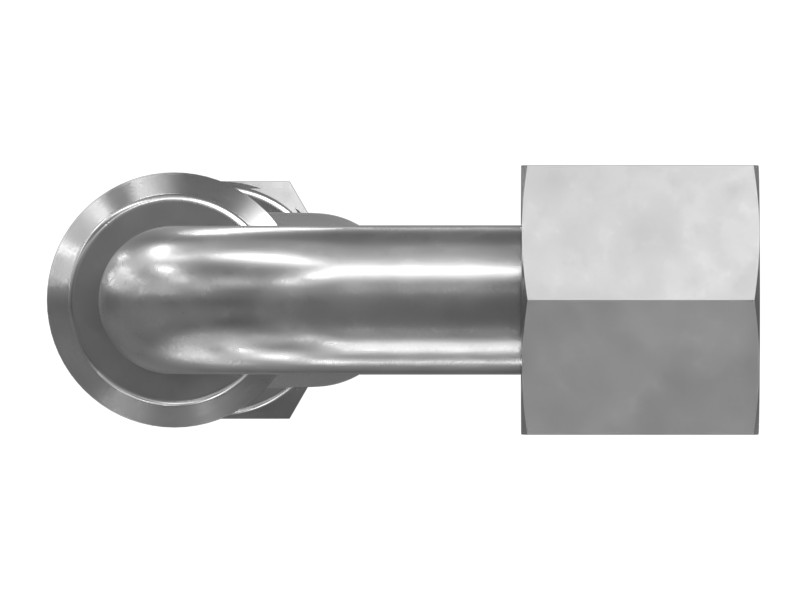

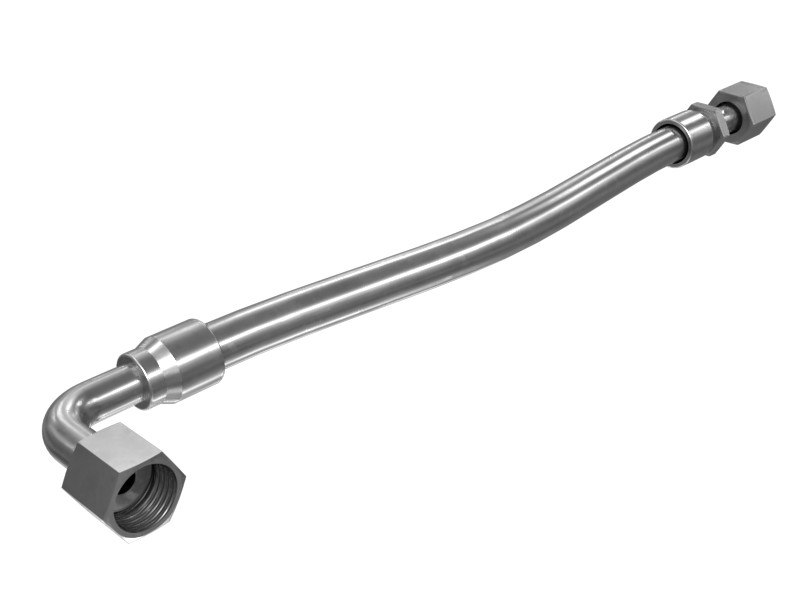

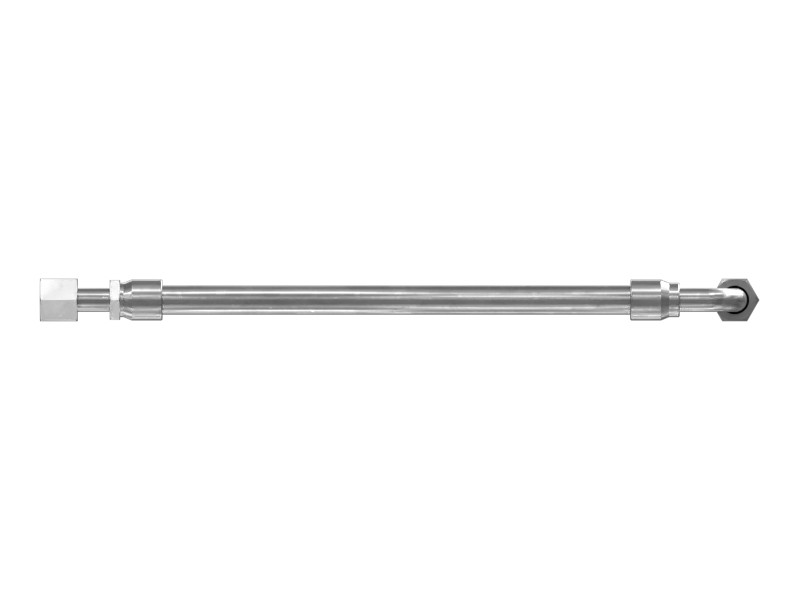

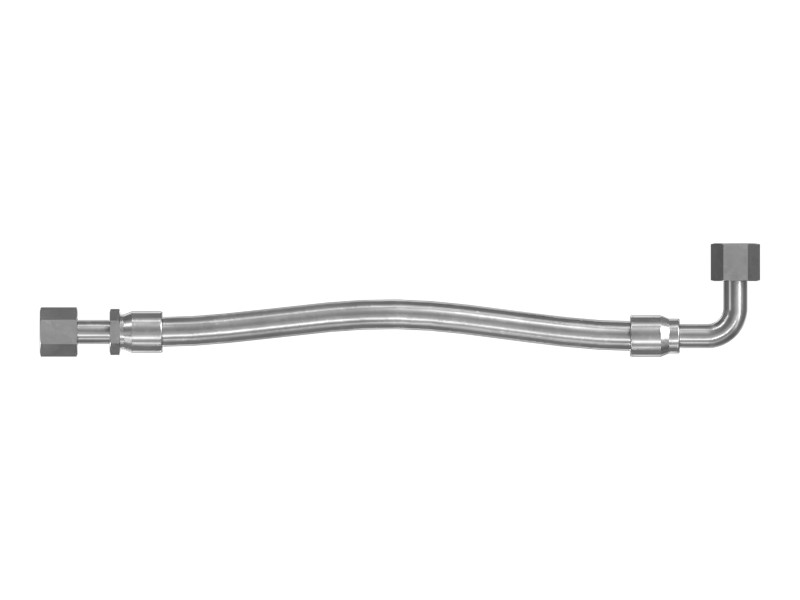

High-temperature medium-pressure hose with a PTFE inner tube and one layer of stainless steel wire braid reinforcement
Specifications
| Hose Type | PTFE Lined High Temperature Hose |
|---|---|
| Hose Inside Diameter | 12.7 mm (0.5 in) |
| Material | Carbon Steel |
| Overall Length | 382 mm (15.039 in) |
| Connector Type | Fixed Connector |
| Fitting Size | -8 ORFS Female in |
| Weight | 0.284 kg |
| Inside Diameter | 13 mm (0.50 in) |
| Length | 382 mm (15.04 in) |
| Nut Model | Swivel Fitting |
| Thread | 13/16-16 |
| Type | Oil Hose |
Compatible Equipment
- Off-Highway Trucks: 794 AC, 798 AC, 793F, 796 AC, 797F, 793
