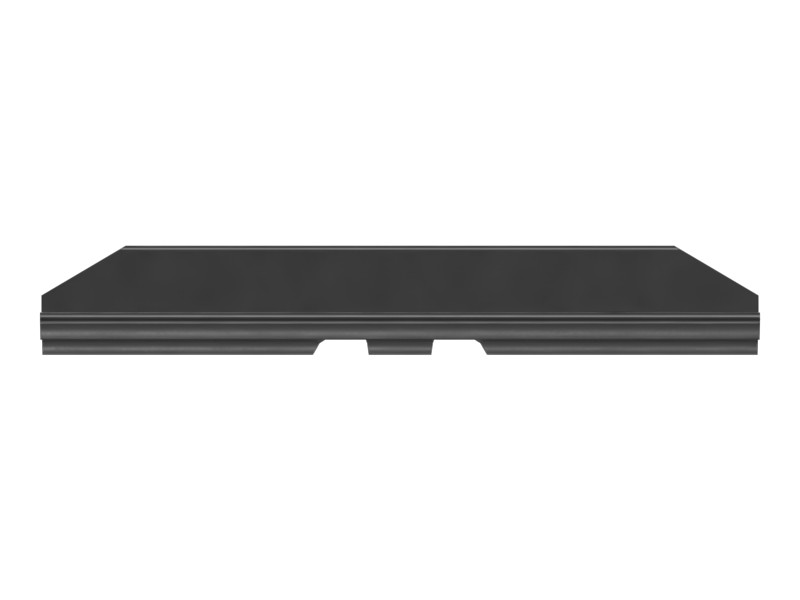

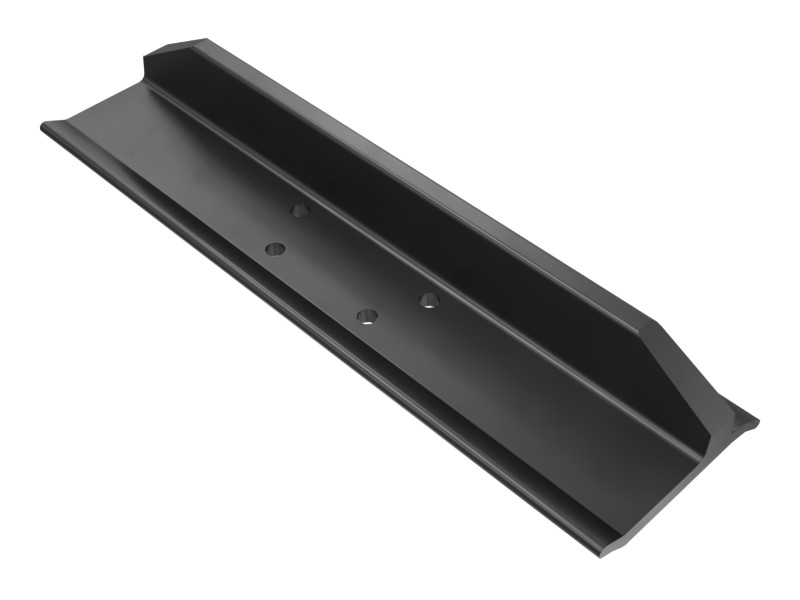

Description
Track shoes provide the machine with flotation and traction while protecting the link group.
Features
Compared with Extreme Duty in high-wear applications, Super Extreme Duty track shoes last approximately 25% longer.
Shear-type track shoes have the sharp corners of the grouser trimmed off, reducing turning resistance and bending forces without loss of flotation and with minimal effect on overall wear life.
Specifications
| Track Shoe Width | 865 mm (34.1 in) |
|---|---|
| Track Shoe Bolt Hole Spacing B | 146.1 mm |
| Track Shoe Type | Super Extreme Duty, Single Grouser, Shear |
| Abrasion Resistant Material | 0 ARM |
| Offset | None |
| Main Bolt Thread | None |
| Track Reinforcement System | None |
| Hole Type | None |
| Number of Grousers | Single |
| Track Bolt Thread | 0.875 |
| Shear | Yes |
| Connector Type | Regular |
| Bolt Hole Diameter | 23.22 mm (0.914 in) |
| Track Shoe Bolt Hole Spacing A | 63 mm |
| Plate Thickness | 20 mm (0.787 in) |
| Track Shoe Bolt Hole Spacing C | 204.1 mm |
| Track Shoe Section 1E Specification | 1E4324 |
| Undercarriage System | HD |
| Material | Boron Steel |
| Bolt Size | 8-Jul mm (8-Jul in) |
| Track Pitch | 215.9 mm (8.5 in) |
Compatible Equipment
- Cold Planers: PL87
- Excavators: 3508B
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
