Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.

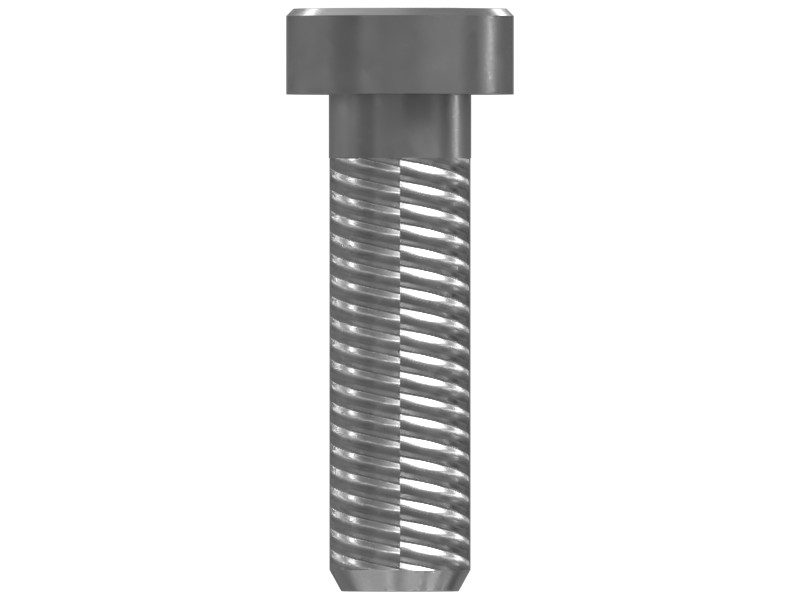

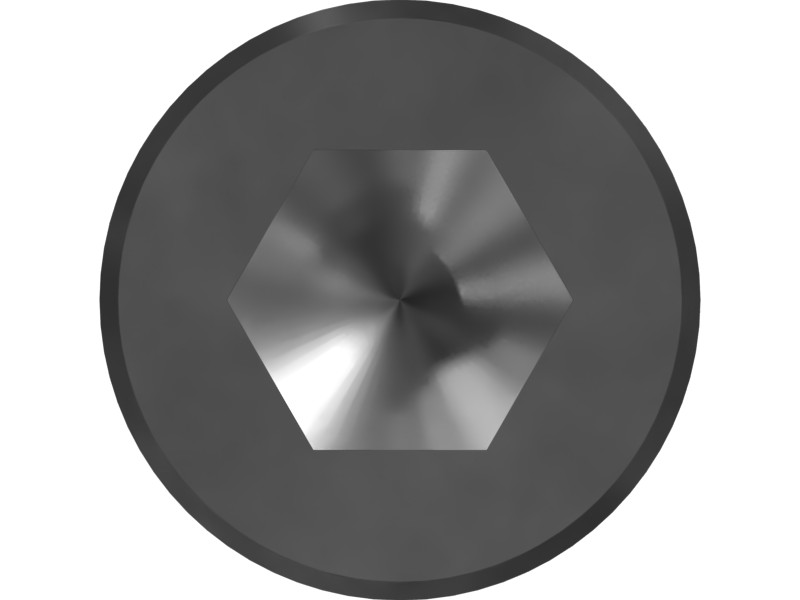

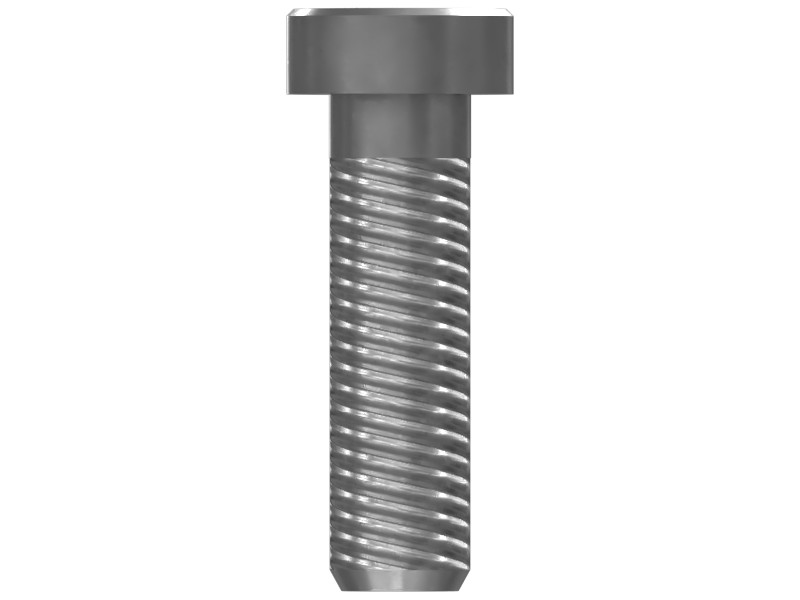

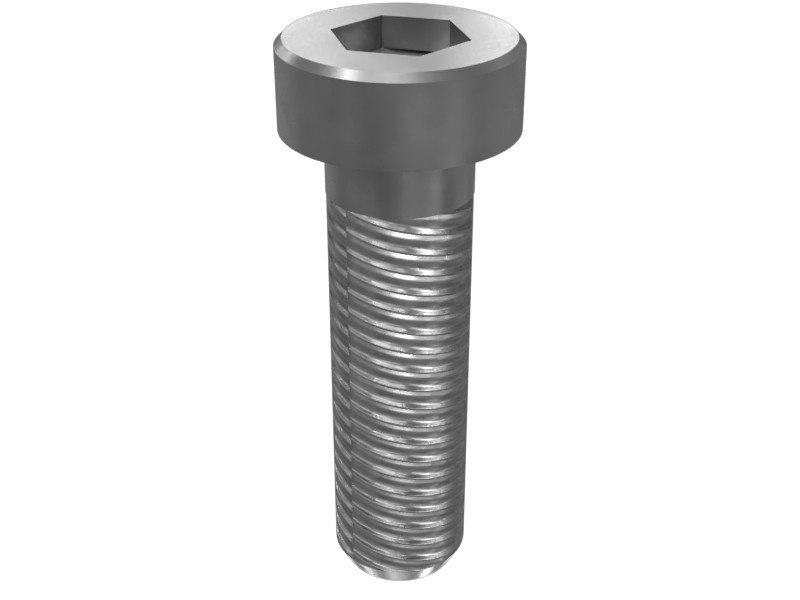

Socket head bolts are used in designs where there is not enough clearance for hex head bolts and assembly tools.
Features
- Cat fasteners are manufactured to precise technical specifications for durability, reliable performance, and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME, and SAE requirements.
- Cat bolts, nuts, and washers are specially designed to work together as a system to maximize clamping force.
- Coatings meet the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Thread Size | M10 mm (0 in) |
|---|---|
| Bolt Type | Socket Head |
| Class or Grade | ISO 898-1 Class 10.9 |
| Thread Direction | RH |
| Locking Feature | None |
| Thread Size (Diameter × Pitch) | M10X1 mm |
| Bolt Length | 35 mm (1.378 in) |
| Handle Length | 5 mm (0.177 in) |
| Coating | Zinc Plated |
Compatible Equipment
- Wheel Excavators: M315, M320, M320D2, M315D, M313D, M315D2, M322D, M317D2, M315GC
- Mini Excavators: 301.7D CR
- Wheel Loaders: M314
- Excavators: 301.7D
Additional information
| Machine Model | 301.7D, 301.7D CR, M313D, M314, M315, M315D, M315D2, M315GC, M317D2, M320, M320D2, M322D |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Wheel Excavators, Wheel Loaders |
| Part Source | Genuine OEM |
