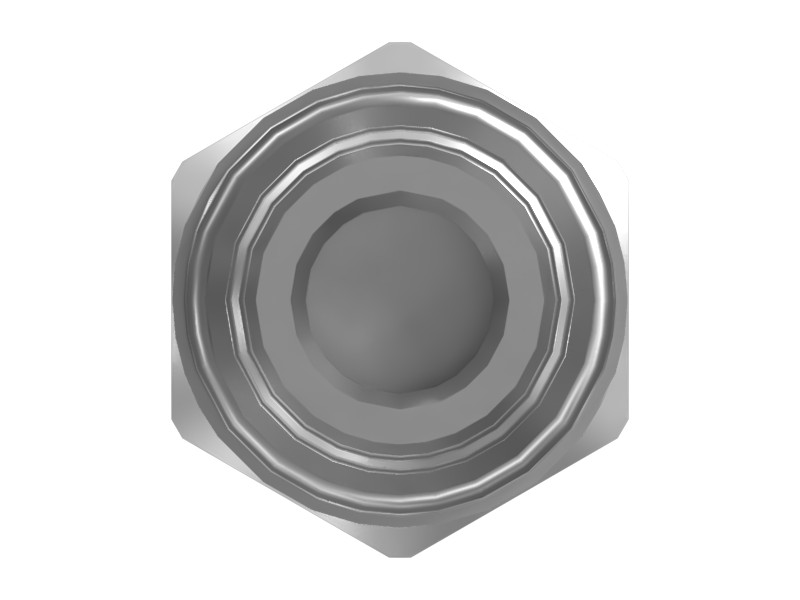

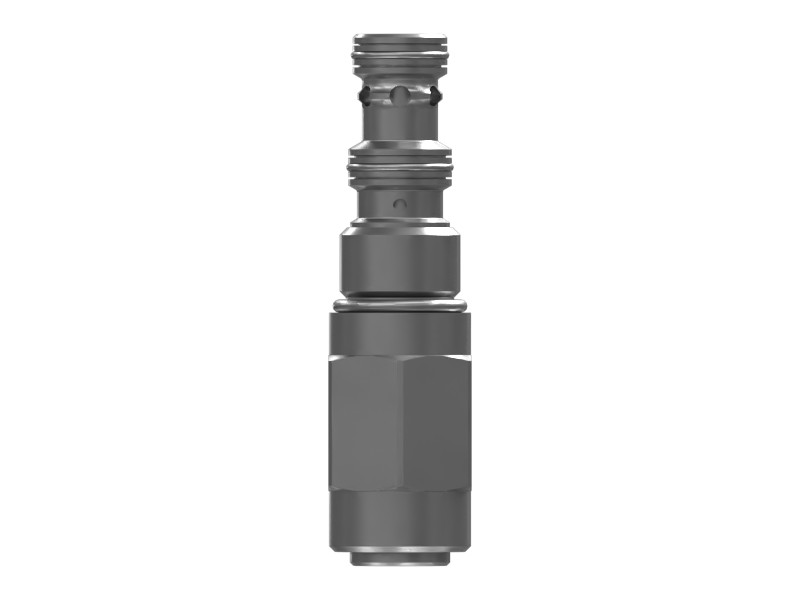

316-0072 Direct Acting Relief Valve
Cat® Direct Operated Cartridge Relief Valve, 6207 kPa (900 psi)
Description
The relief valve (for example, part number 316-0072) is a pressure relief valve used to release fluid when a safe threshold is reached, in order to control or limit pressure rise. Cat relief valves are designed or set to open when pressure reaches a preset value, protecting pressure lines and systems. Cat valves are manufactured to precise technical specifications and are durable, reliable, and efficient.
Features
- Steel cutoff release pump relief valve
- Set Pressure: 6207 kPa (900 psi)
- Operating Temperature Range: -40°C to 175°C
- Maximum Rated Flow: 22.7 LPM (6.0 GPM)
- Flow Direction Indicator: Nose to Side
- Threaded mounting
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Connector Type | Not Specified |
|---|---|
| Hex Size | 8; 25 mm (0.31; 1.00 in) |
| Length | 84 mm (3.32 in) |
| Thread Size | None mm (3/4-16 in) |
| Type | Safety Valve |
Compatible Equipment
- Off-Highway Trucks: 775G, 772G, 770G, 777E, 777, 773
