Description

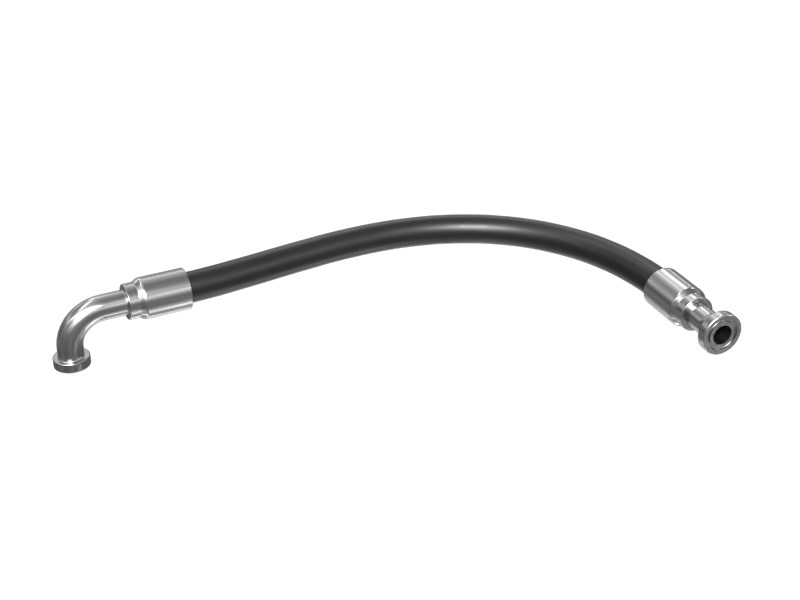

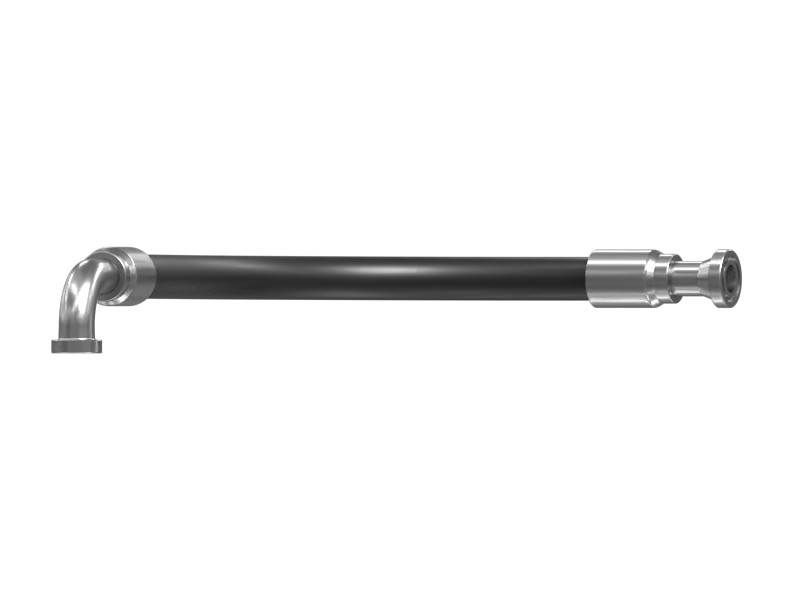

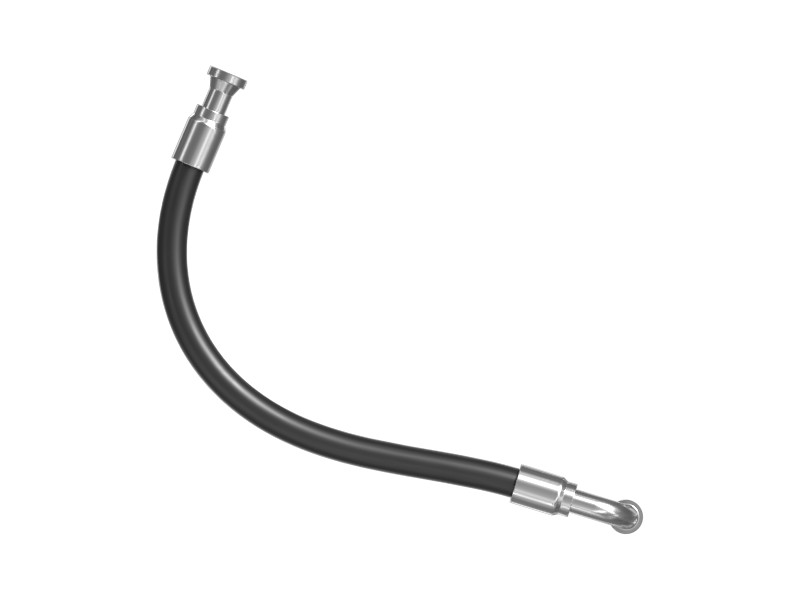

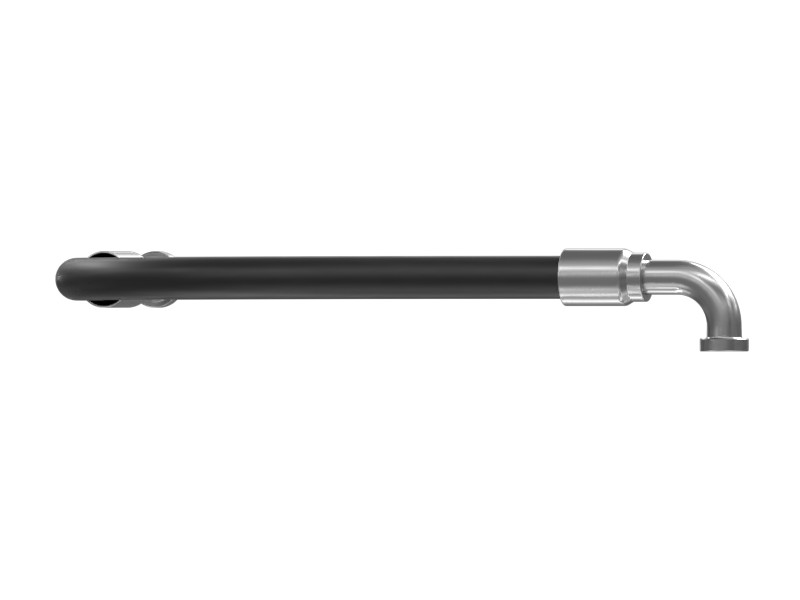

XT ES (Enhanced Spiral) high-pressure hose carries petroleum-based hydraulic oil at high pressure from pumps and motors to machine components.
Features
- XT-6 ES high-pressure hose assembly
- Cat flange coupling
- Hose Inside Diameter: 31.8 mm (1.25 in)
- Made with a fabric-reinforced synthetic rubber tube and four to six spiral-wrapped layers of high-tensile steel wire reinforcement (separated by synthetic rubber layers). Synthetic rubber cover is oil-, weather- and abrasion-resistant. XT ES hose is impulse tested to 1,000,000 cycles, twice the SAE requirement. In addition, the working bend radius of Cat® XT ES hose is half the SAE bend radius. This means they bend more easily in tight spaces and can significantly reduce hose length requirements. These features simplify installation and deliver long service life and outstanding reliability.
Applications
High-pressure service applications. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | High Pressure Hose |
|---|---|
| Hose Type | 4 or 6 Wire Spiral – XT-6ES Hose |
| Hose Inside Diameter | 31.75 mm (1.25 in) |
| Overall Length | 1212 mm (47.4 in) |
| Weight | 5.93 kg |
Compatible Equipment
- Wheel Loaders: 988H
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
