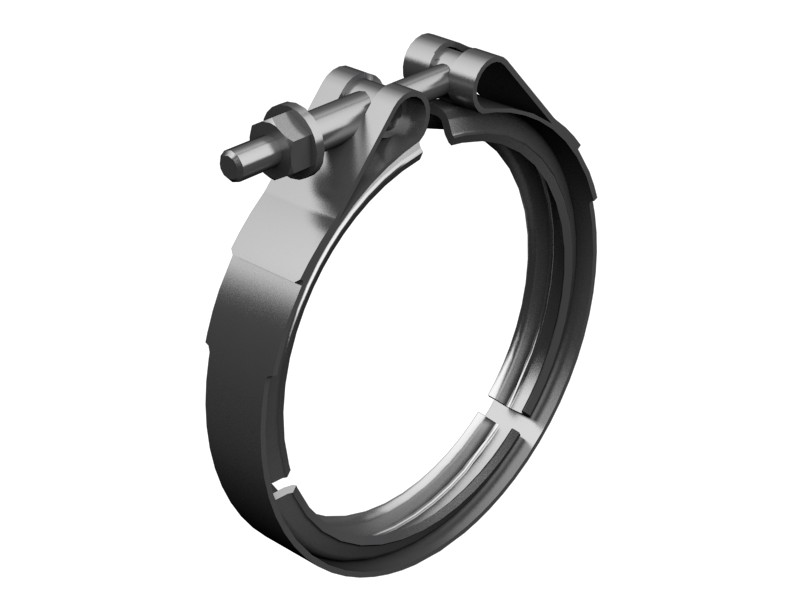

315-7745 99.8mm ID V-Band Clamp
The Cat® V-band clamp for turbocharger air lines ensures a tight connection, minimizing exhaust leakage and maintaining turbocharger efficiency
Description

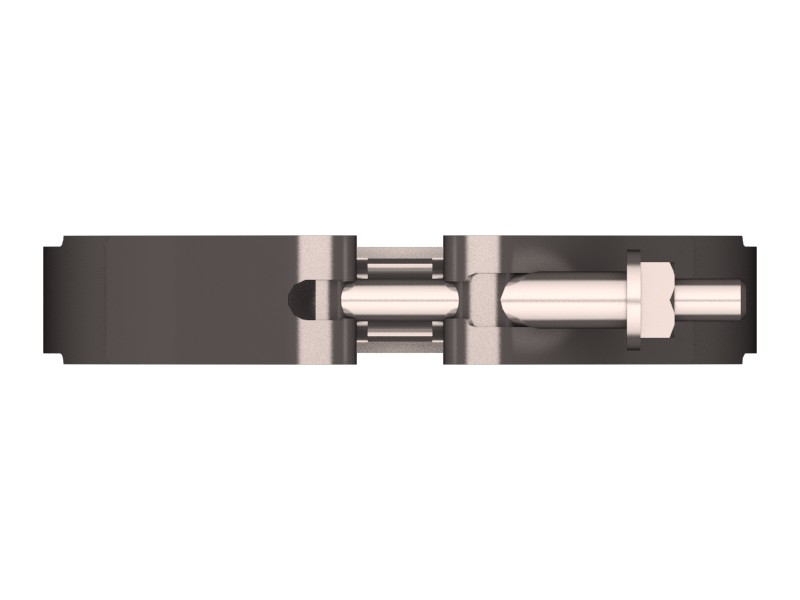

Cat® V-band clamps are not standard off-the-shelf clamps. We strive to provide the highest-quality clamps. V-band clamps seal the joint through axial clamping force. A V-band clamp consists of three main components: a V-insert, a steel band, and a heavy-duty T-bolt. Cat V-band clamp materials are selected according to the application. The V-band clamps supplied by Cat® are another outstanding "Built For It" product.
Features
- Cat V-band clamps are manufactured to precise technical specifications and are durable, reliable, and efficient
- Strength and quality – V-band clamps meet or exceed ANSI, ASTM, and DIN requirements
- Cat V-band clamps and the turbo/exhaust pipe work together as a system to maximize clamping force
- Coatings and materials meet the special requirements of different applications (RoHS compliant)
Applications
Cat V-band clamps secure and seal turbocharger/exhaust pipe applications.
Specifications
| Pitch Diameter | 99.8 mm (3.93 in) |
|---|---|
| Material Description | Stainless Steel |
| Clamp Width | 19.05 mm (0.75 in) |
| Material | 1E1541E |
Compatible Equipment
- Engines: C13
