314-7812 15C Slip Joint
Cat® 15C slip joint, Compressed Length: 1384 mm, Slip Length: 127 mm.
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description

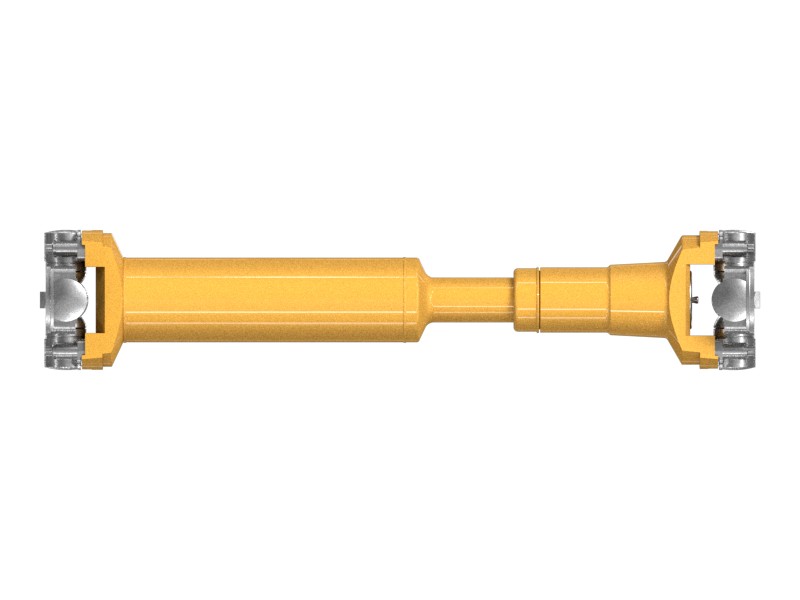

Slip joint assemblies (such as 314-7812) are used to lengthen or shorten the drive shaft depending on the applied torque.
Powertrain components must withstand extremely high torque, high shock loads, and frequent directional shifts. Cat designs and builds transmission and final drive components with these demands in mind, ultimately improving the durability and performance of the powertrain over the life of the machine.
Features
- 15C slip joint

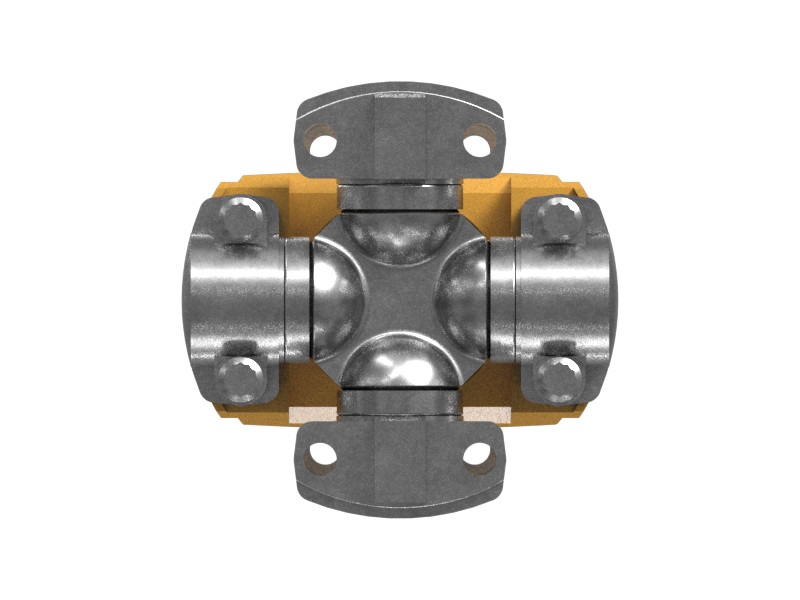

- Includes U-joint, 15C shaft, and bolts
- Compressed Length: 1384 mm (54.5 in)
- Slip Length: 127 mm (5.0 in)
- Swing Diameter: 273 mm (10.7 in)
- Pilot Diameter: 260 mm (10.2 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Diameter | 273 (Swing) mm (5.0 (Swing) in) |
|---|---|
| Material | Carbon Steel |
| Length | 1384 (Compressed) mm (54.5 (Compressed) in) |
Compatible Equipment
- Off-Highway Trucks: 785D, 785
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
