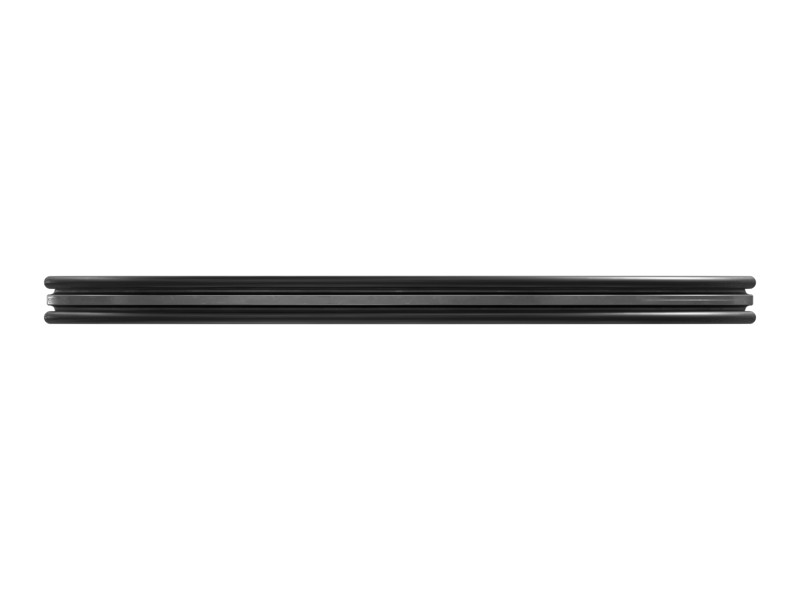

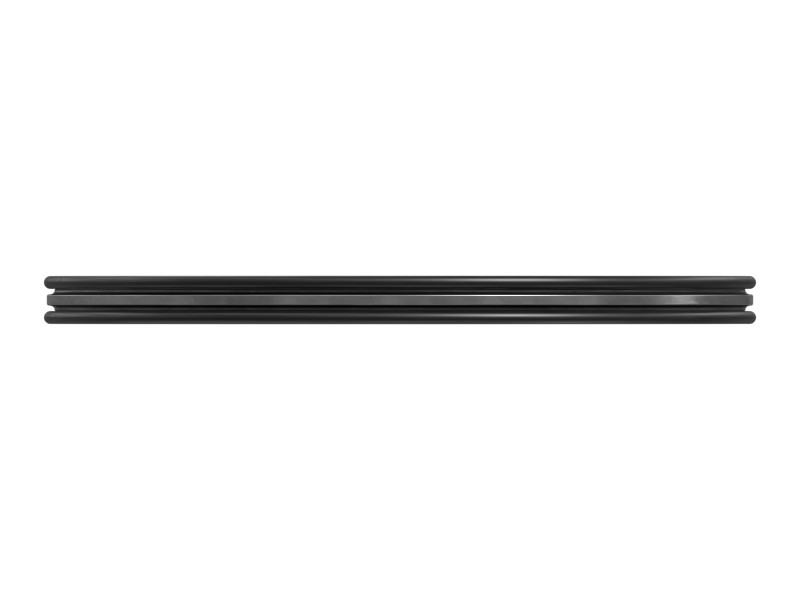

314-4130 43.70 mm Axial Width Duo-Cone Seal
Buy the Cat® part 698.30 mm assembled OD Duo-Cone seal. This part is used to maintain a tight seal and prevent oil leakage.
Description
Duo-Cone Seals are metal-to-metal face seals
Features
In severe applications where misalignment may occur, final drive Duo-Cone Seals maintain a leak-free seal during rotation.
Recommended Applications:
All Applications
Specifications
| Outside Diameter | 700 mm (27.6 in) |
|---|---|
| Ramp Angle | 15 |
| Ring Cross Section | 13 mm |
| Ring Material Description | C6 |
| Face Material | Silicone Resin |
| Housing Diameter | 703.28 mm (27.7 in) |
| Inside Diameter | 667.58 mm (26.3 in) |
| Temperature | -55 to 150 °C (-67 to 302 °F) |
| Flange Outside Diameter | 704.66 mm (27.7 in) |
Compatible Equipment
- Excavators: 3516E
- Off-Highway Trucks: 785D, 793F, 793D, 789D, 797F, 793, 789
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
