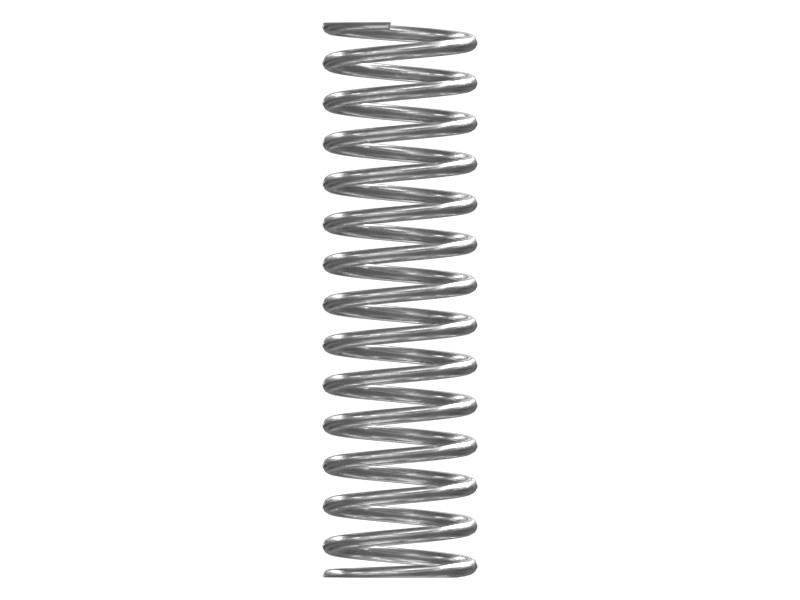

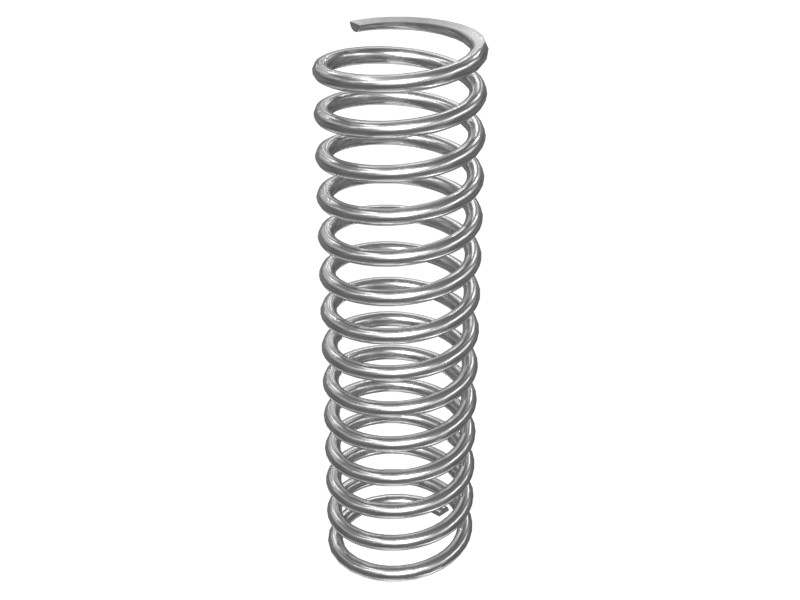

311-2886 Compression Spring
Cat® Compression Spring, ID X OD X Length: 16.8 X 21 X 75.2 mm
Description
A compression spring (for example, part number 311-2886) has a helical design that gains compression and tension through spring compression (shortening) as more weight is applied. Cat spring parts are available in a variety of strengths and sizes to suit specific applications.
Features
- Steel compression spring
- Free Length: 75.2 mm (2.96 in)
- Outside Diameter: 21 mm (0.83 in)
- Inside Diameter: 16.8 mm (0.66 in)
- Total Coils: 15
- Active Coils: 13
- Coil Helix Direction: Right-Hand
- Springs meet or exceed current standards and material grades
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Inside Diameter | 16.8 mm (0.66 in) |
|---|---|
| Length | 75.2 mm (2.96 in) |
| Material | Steel |
| Outside Diameter | 21 mm (0.83 in) |
| Spring Type | Compression |
Compatible Equipment
- Excavators: 6060, 352F, 390F, 374F L, 390F L, 374F
- Off-Highway Trucks: 7495
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
