Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.

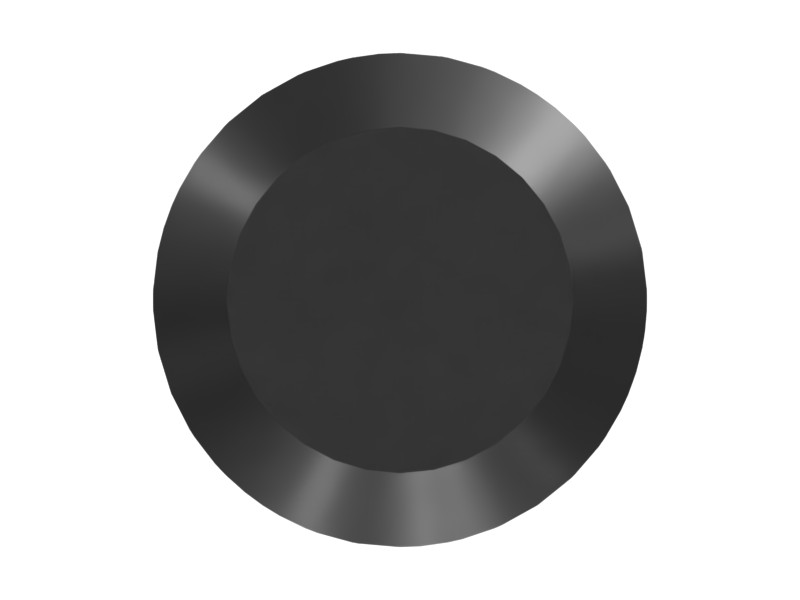

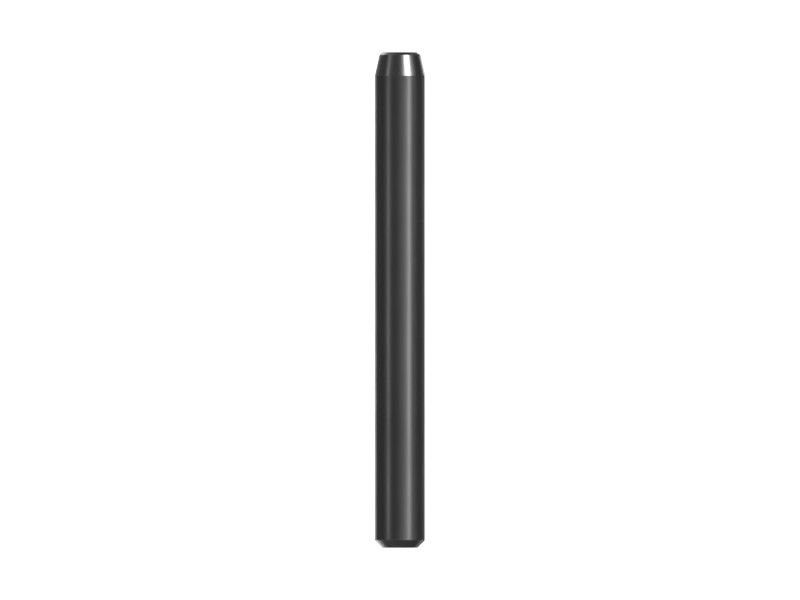

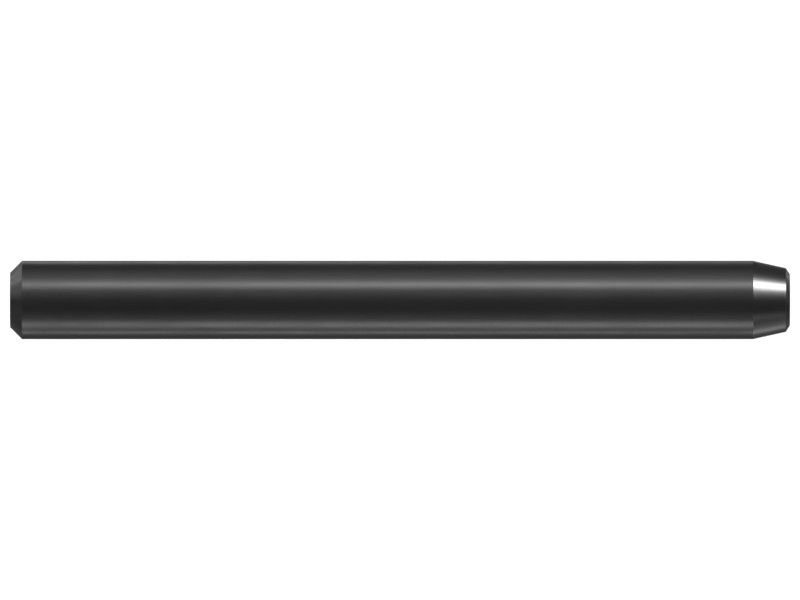

A stud, also known as a threaded rod, is typically fully threaded or threaded at both ends.
Features
- Cat fasteners are manufactured to precise technical specifications for durability, reliable performance, and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME, and SAE requirements.
- Cat studs, nuts, and washers are specially designed to work together as a system to maximize clamping force.
- Coatings meet the special requirements of different applications (RoHS compliant).
Applications
Cat studs form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Thread | Coarse Thread UNC |
|---|---|
| Thread Size (Diameter × Pitch) | M10 × 1.50 mm |
| Screw Length – A | 100 mm |
| Stud Type | Fully Threaded Stud (Rod) |
| Material | STEEL |
| Overall Length | 100 mm |
| Stud Thread Size | M10 X 1.5 mm |
| Coating | Zinc Plated |
Compatible Equipment
- Motor Graders: 140K, 16M3, 16, 14, 14M, 18, 140 GC
- Track Loaders: 953K, 963K, 953, 963
- Wheel Excavators: MD6200, MD6250, MD6310
- Dozers: D11, D4, D9, D10, D6K2, D9R, D7E, D6N
- Excavators: 637K, 6015, 120 GC
- Off-Highway Trucks: 777, 770G, 797F, 772G, 796 AC, 793F, 789D, 798 AC, 775G, 793D, 794 AC, 785, 789, 793, 777E, 773
Additional information
| Machine Model | 120 GC, 14, 140 GC, 140K, 14M, 16, 16M3, 18, 6015, 637K, 770G, 772G, 773, 775G, 777, 777E, 785, 789, 789D, 793, 793D, 793F, 794 AC, 796 AC, 797F, 798 AC, 953, 953K, 963, 963K, D10, D11, D4, D6K2, D6N, D7E, D9, D9R, MD6200, MD6250, MD6310 |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks |
| Part Source | Genuine OEM |
