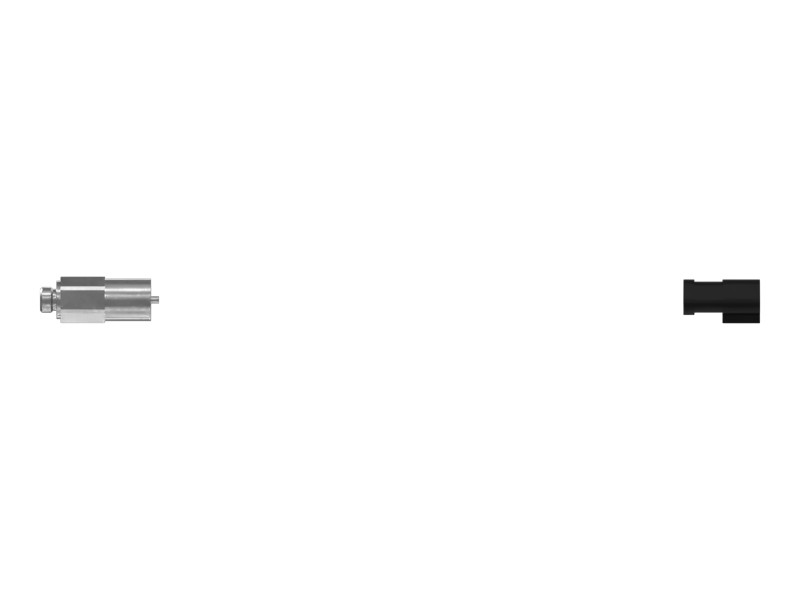

307-6718 Steering Low Pressure Switch
Cat® Steering Low Pressure Switch with Pressure Sensing That Triggers the Actuator Mechanism at a Set Pressure
Description
Cat pressure switch groups are designed to turn on and off in response to changes in the system set pressure. Cat parts ensure your equipment runs at its best.
Features
- Pressure switch with pigtail connector
- Activation Pressure: 1900 kPa
- Contact Position: Normally closed, normally open, and single-pole double-throw
- Media: Oil, Fuel, Air
- Thread Size: 9/16-18
- Environmentally sealed
- ROHS compliant
- Rugged design for long service life
- High accuracy and stable performance
- Quick and easy installation
- Designed to work with other Cat parts to ensure the equipment reaches its full potential
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information. Cat parts can operate in heavy-duty applications in environments with severe vibration, shock, extreme operating temperature ranges, thermal cycling, thermal shock, moisture, corrosion and dust.
Specifications
| Material | Carbon Steel |
|---|---|
| Overall Length | 407.3 mm (16.03 in) |
| Hex Size | 23.8 mm (0.937 in) |
| Connector Type | 3-Pin DT |
| Thread Size | 9/16-18 in |
Compatible Equipment
- Mini Excavators: 307
- Off-Highway Trucks: 793D, 789D, 789, 793
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
