Description

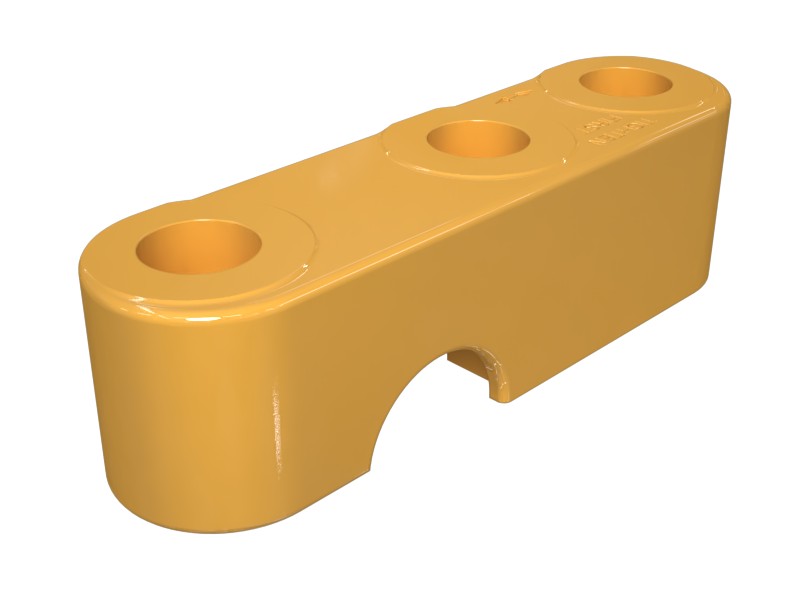

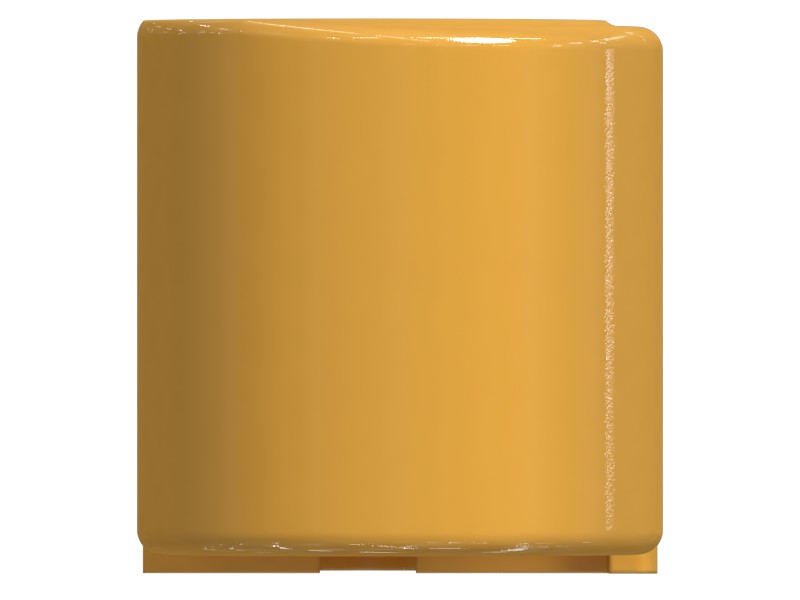

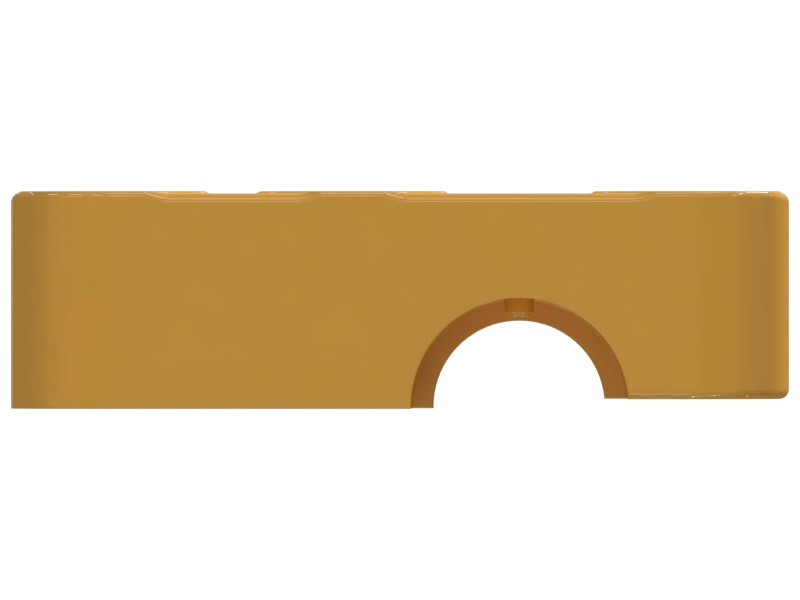

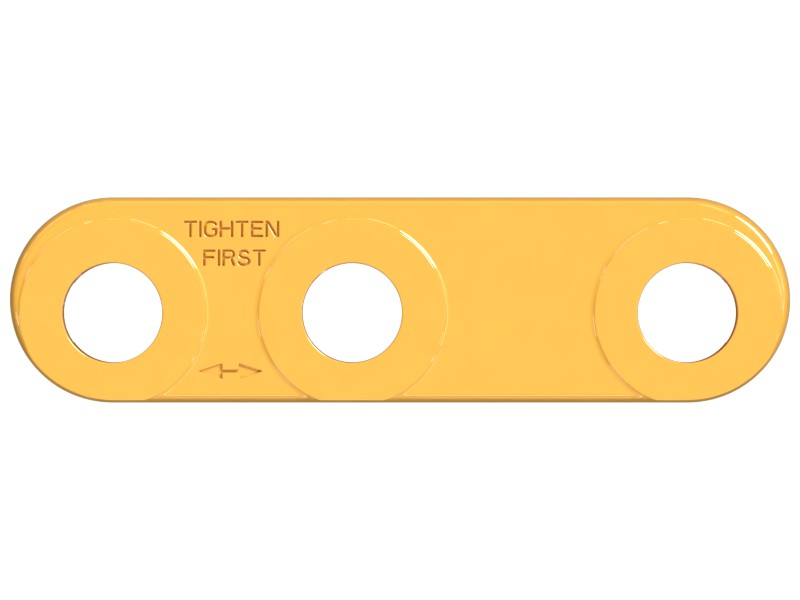

Cat Mounting Cover Description:
The drive wheel collar provides locking for the drive wheel shaft and sealing system.
Specifications
| Shaft Mounting Diameter | 68.15 mm (2.683 in) |
|---|---|
| Chassis Width | 64 mm |
| Hole 3 Distance | 180 mm (7.087 in) |
| Mounting Hole Diameter | 31.4 mm (1.236 in) |
| Mounting Face Offset | 0 mm (0 in) |
| Width | 64 mm (2.52 in) |
| Pin Diameter | 9.52 mm (0.375 in) |
| Number of Mounting Holes | 3 |
| Hole 2 Distance | 105 mm (4.134 in) |
| Hole 1 Distance | 52.5 mm (2.067 in) |
| Length | 244 mm (9.606 in) |
| Height | 68 mm (2.677 in) |
Compatible Equipment
- Dozers: D9R, D9T, D9
