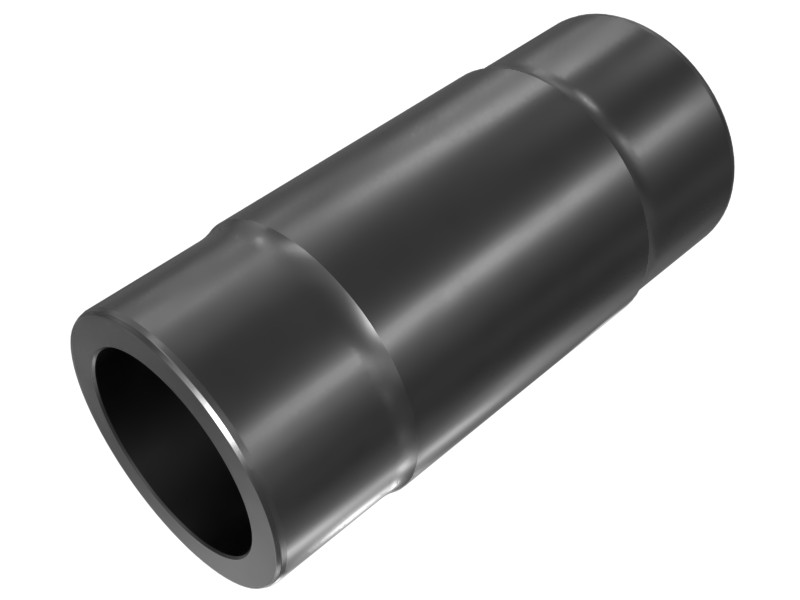

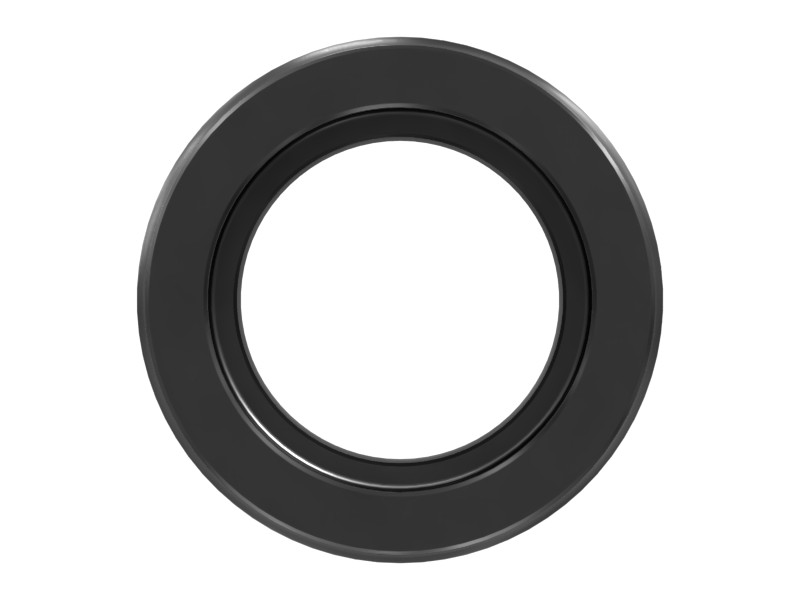

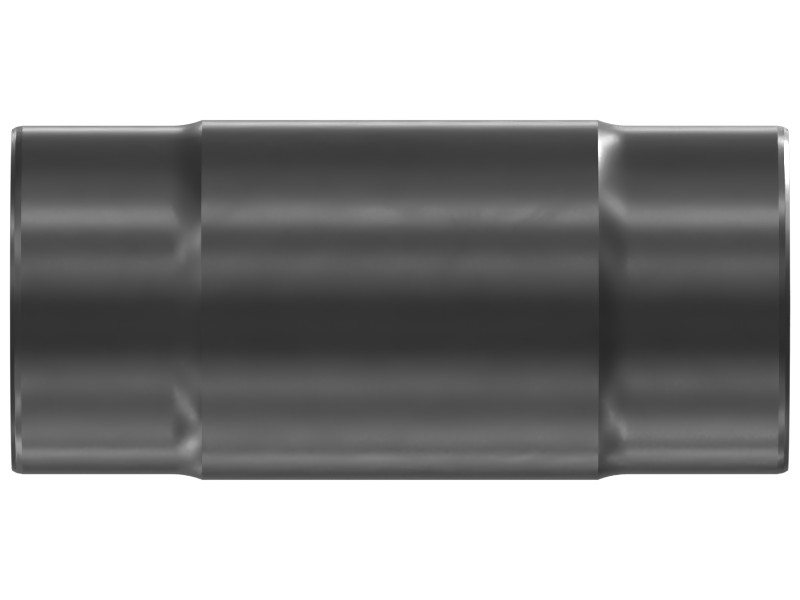

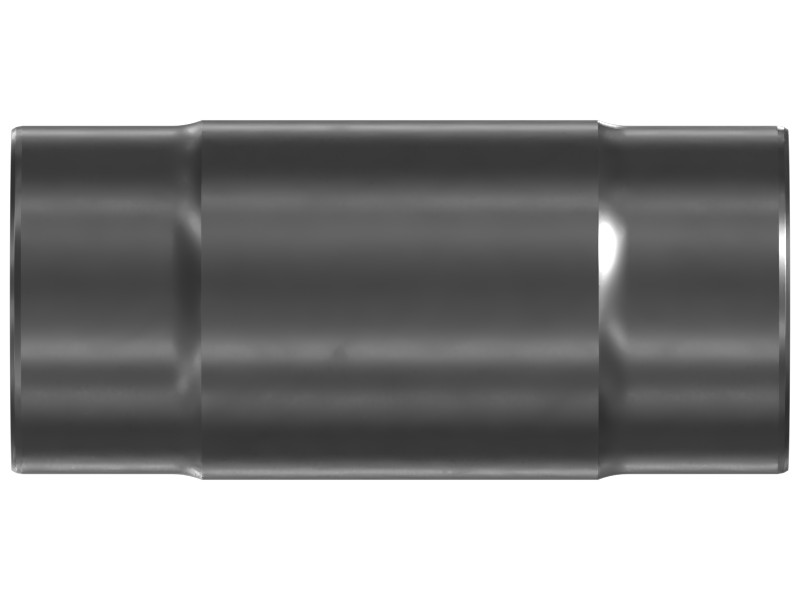

Description
Track bushings work together with track pins to hold the individual track links together, and they are part of the sealing arrangement between the link and the bushing.
Features
Cat® Sealed and Lubricated Track (SALT) seals lubricant inside the undercarriage system and keeps abrasives out. It eliminates internal pin and bushing wear, reducing maintenance costs and downtime while increasing service life and serviceability. Combined with a track design matched to the machine and working environment, SALT provides a versatile undercarriage configuration for a wide range of ground conditions.
Specifications
| Counterbore Diameter | 79.98 mm (3.149 in) |
|---|---|
| Bushing Outside Diameter | 110 mm (4.331 in) |
| Bushing Inside Diameter | 68 mm (2.677 in) |
| End Length | 49 mm (1.929 in) |
| Counterbore Depth | 38 mm (1.496 in) |
| End Outside Diameter | 106.5 mm (4.193 in) |
| Overall Length | 237.32 mm (9.343 in) |
| Bushing Dynamic Characteristics | Fixed |
| Main Option | No |
| Material | Alloy Chromium |
Compatible Equipment
- Dozers: D11T, D11R, D11, D11N
