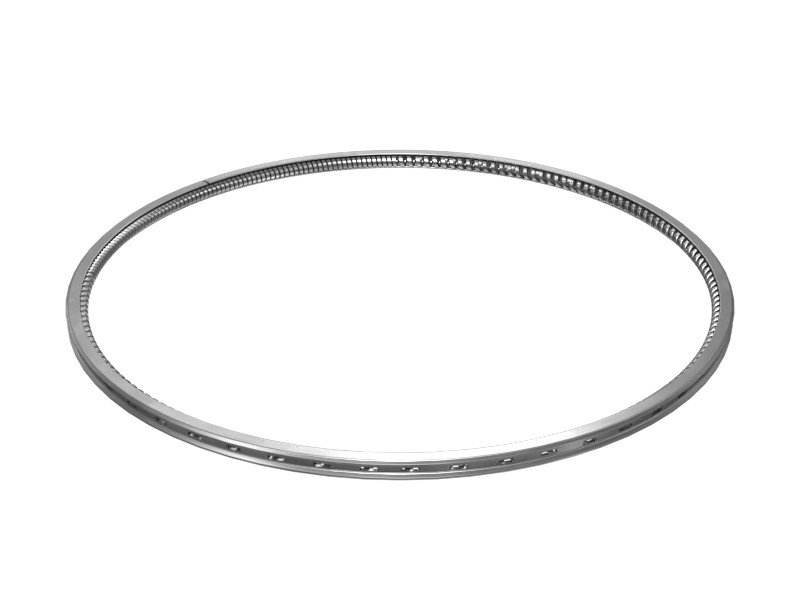

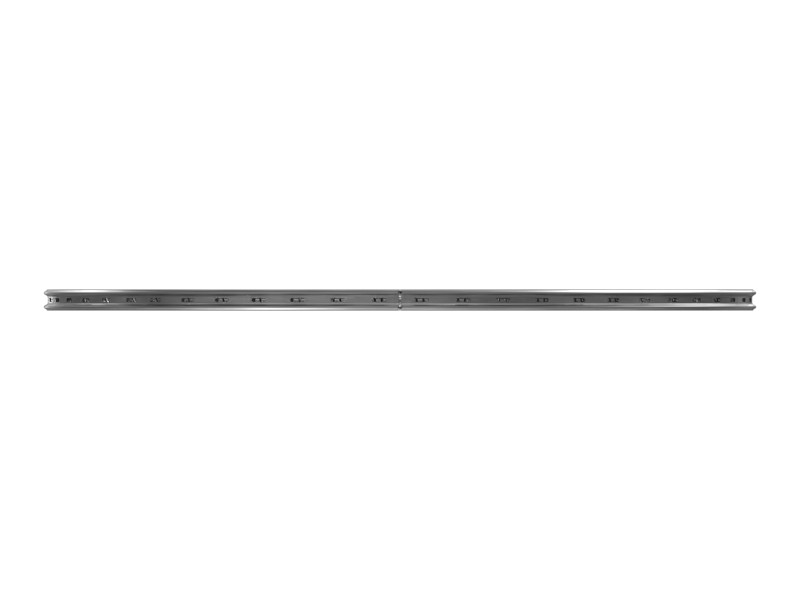

306-4014 137 mm Reference Diameter Oil Ring
Cat® Oil Piston Ring with Coil Spring
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
The Cat piston oil ring is a split ring that fits into a groove in the outside diameter of the piston body, below the intermediate ring and the oil ring. The piston ring forms a seal between the piston body and the cylinder wall, preventing combustion cylinder gases from leaking into the crankcase, maintaining a stable lubricating oil level between the cylinder wall and the piston, and regulating engine oil consumption by scraping oil from the cylinder wall back to the sump.
Features
- Two-piece coil spring piston oil ring
- Outside Diameter (Gauge): 137.16 mm (5.4 in)
- Emissions control
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Carbon Steel |
|---|---|
| Height | 4 mm (0.16 in) |
| Material Description | Steel |
| Outside Diameter | 137.2 mm (5.4 in) |
Compatible Equipment
- Generator Sets: C9
- Track Loaders: 826K, 824C, 990K, 826H
- Cold Planers: PL83, PL87
- Compactors: 825K, 824K
- Engines: C15, C27, C18
- Excavators: 374D L, 374F, 374, 657G, 365C L, 6015B, 365C, 374F L, 621G, 6030, 3508B, 6015
- Asphalt Pavers: AD30, AD63
- Skid Steer Loaders: 24
- Wheel Excavators: MD6250
- Dozers: D10T2, D8, D8T, D8R, D10T, D10, D6T
- Wheel Loaders: 980H, 980G, 986H, RM500B, R2900G, R3000H, R2900 XE
- Off-Highway Trucks: 770G, 740, 740B, 740 GC, 735, 775G, 773
Additional information
| Machine Model | 24, 3508B, 365C, 365C L, 374, 374D L, 374F, 374F L, 6015, 6015B, 6030, 621G, 657G, 735, 740, 740 GC, 740B, 770G, 773, 775G, 824C, 824K, 825K, 826H, 826K, 980G, 980H, 986H, 990K, AD30, AD63, C15, C18, C27, C9, D10, D10T, D10T2, D6T, D8, D8R, D8T, MD6250, PL83, PL87, R2900 XE, R2900G, R3000H, RM500B |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
