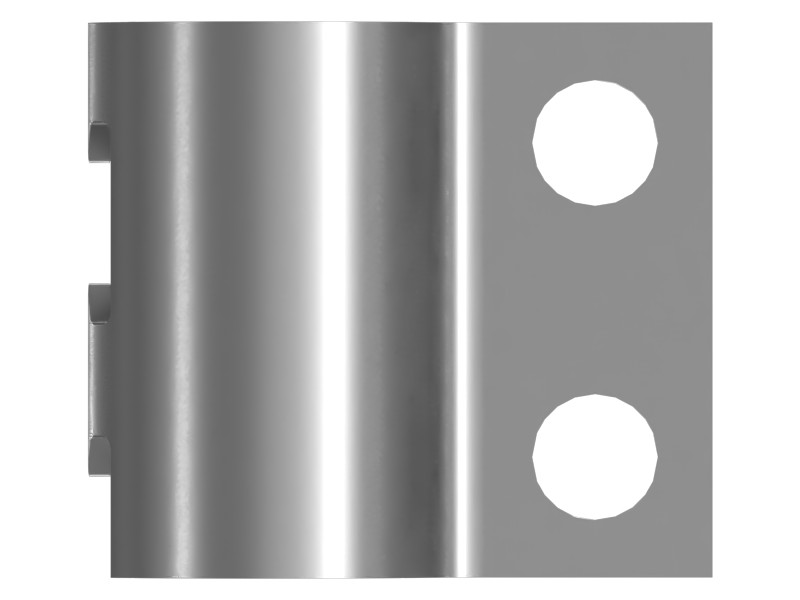

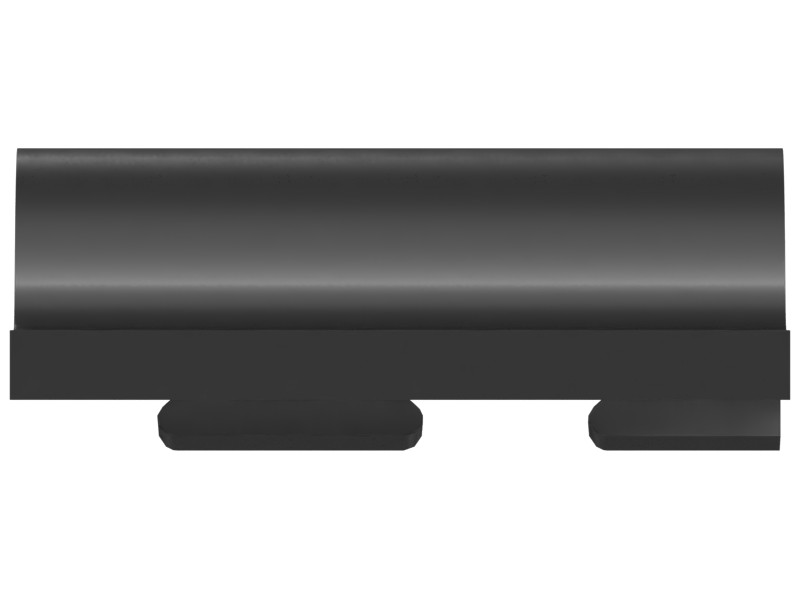

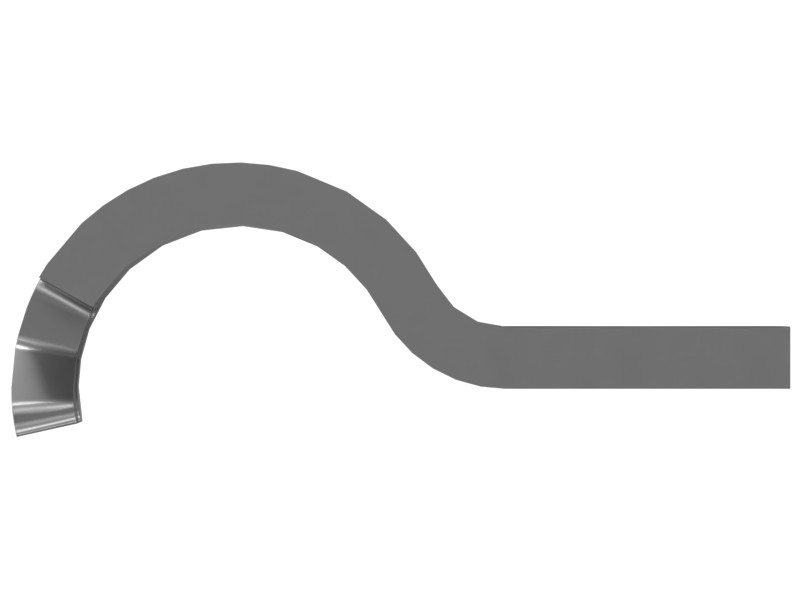

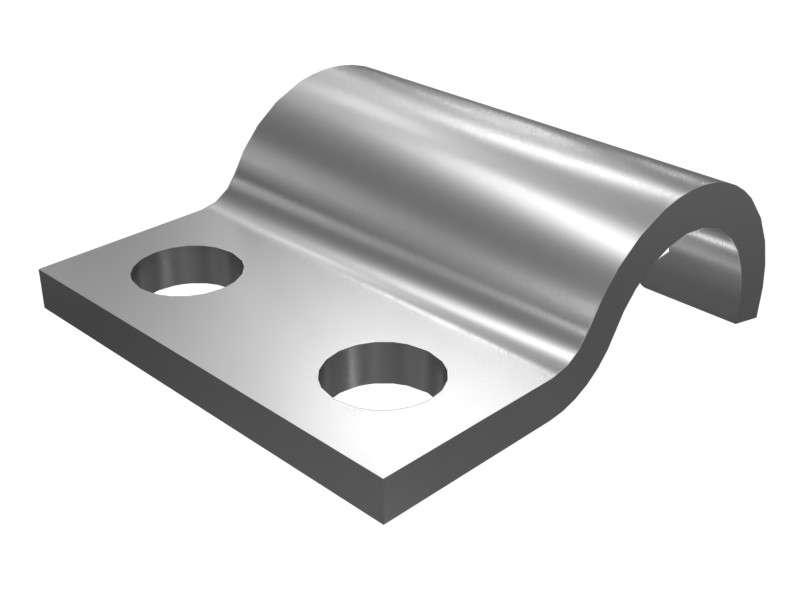

306-1354 Single Tube Interlocking Half Clip
Cat® Single Tube Interlocking Half Clamp, 42.7 mm Clamping Diameter
Description
Interlocking tube clips such as part number 306-1354 are used with a mating clip to secure various fluid-carrying hoses and rigid tubes.
Cat clips and clamps are not ordinary off-the-shelf clips and clamps, but another outstanding LET'S DO THE WORK product.
Features
- Steel tube clamp for rigid tubes with a diameter of 42.7 mm
- Mating parts sold separately
- Interlocking half-clamp configuration
- For use with M12 or 1/2 in fasteners
- Clamp Centerline to Fastener Centerline: 53 mm (2.08 in)
- For use with M16 mounting fasteners
- Cat clips and clamps are designed and manufactured to precise specifications for durability, reliability and high efficiency
- The strength and quality of every Cat clip and clamp meet or exceed ANSI, ASTM and DIN requirements
- Cat interlocking clamps and clips work together as a system to help maximize reliability and safety
- These Cat clamps and clips have a protective coating that provides excellent corrosion protection to meet the special requirements of different applications (RoHS compliant)
- Mating parts sold separately
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Coating | Not Specified |
|---|---|
| Hole Size | 21 (2X) mm (0.83 (2X) in) |
| Length | 53 (Clamp Centerline to Fastener Centerline) mm (2.08 (Clamp Centerline to Fastener Centerline) in) |
| Style | Semi-Interlocking |
| Tube Diameter | 42.7 mm (1.68 in) |
| Type | Single Tube |
| Width | 90 mm (3.54 in) |
Compatible Equipment
- Motor Graders: 349 GC
- Excavators: 349F L, 330D L, 340, 352, 336D2 L, 355, 345C, 345C L, 345D L, 352F, 349D L, 349, 345D, 349E L, 345 GC, 336, 336 GC, 350, 336D L, 336D2 XE, 349E L VG, 349E, 340D L, 340D2 L, 330D, 336D2 GC, 330, 349D2, 349D2 L, 349D, 336D2, 336D
Additional information
| Machine Model | 330, 330D, 330D L, 336, 336 GC, 336D, 336D L, 336D2, 336D2 GC, 336D2 L, 336D2 XE, 340, 340D L, 340D2 L, 345 GC, 345C, 345C L, 345D, 345D L, 349, 349 GC, 349D, 349D L, 349D2, 349D2 L, 349E, 349E L, 349E L VG, 349F L, 350, 352, 352F, 355 |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
