Description

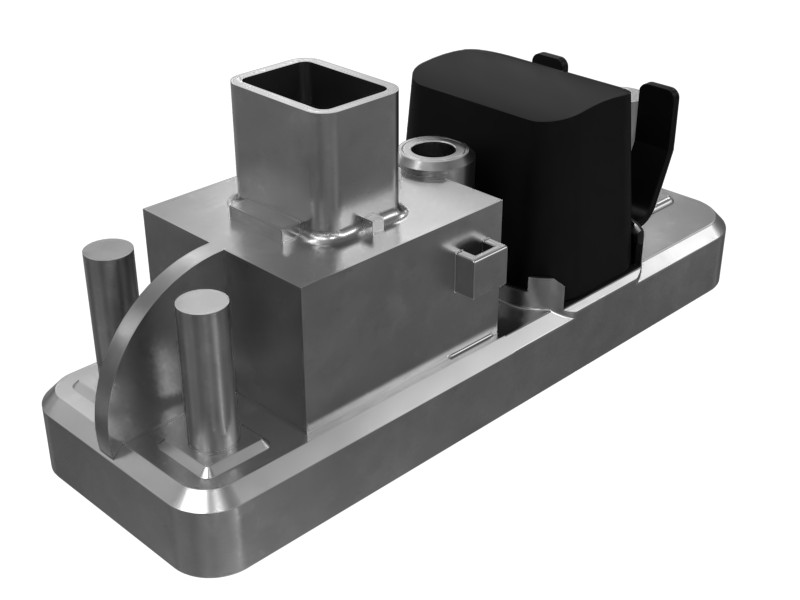

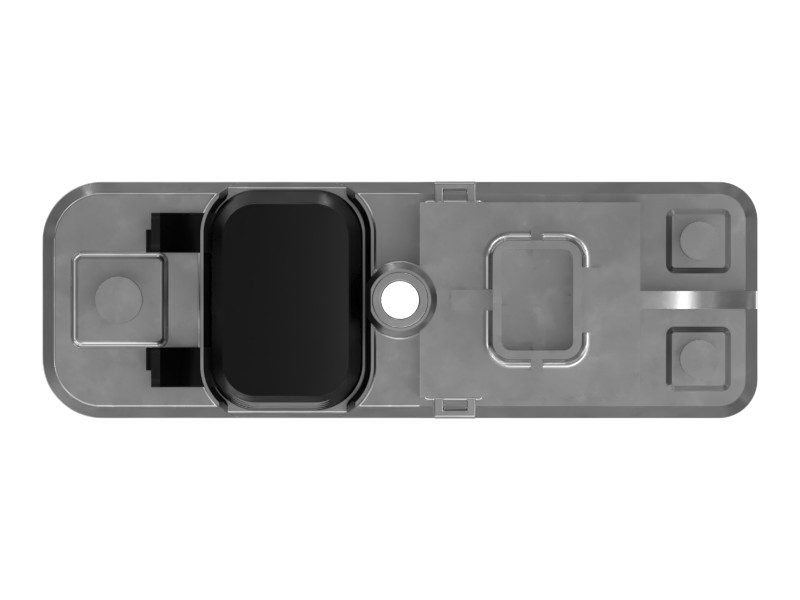

The Power Relay Module (PRM) is designed for high-current applications.
Features
- Rated PRM: 70 A, 24 VDC
- Input Stud: M8
- Output Stud: M6
- Counter-rotation feature (CRF)
- Environmentally sealed
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Nylon, 6, 6/12, 6/6 Plastic |
|---|---|
| Overall Length | 121.92 mm (4.8 in) |
| Overall Width | 57.15 mm (2.25 in) |
| Overall Height | 40.64 mm (1.6 in) |
Compatible Equipment
- Compactors: CS12, CS11, CS68B, CP56B, CS56B, CS78B, CS54B, CS79B, CS74B, CP54B, CS64B, CS-54B
- Off-Highway Trucks: 794 AC, 797F
- Asphalt Pavers: AP655F, AP655F L
