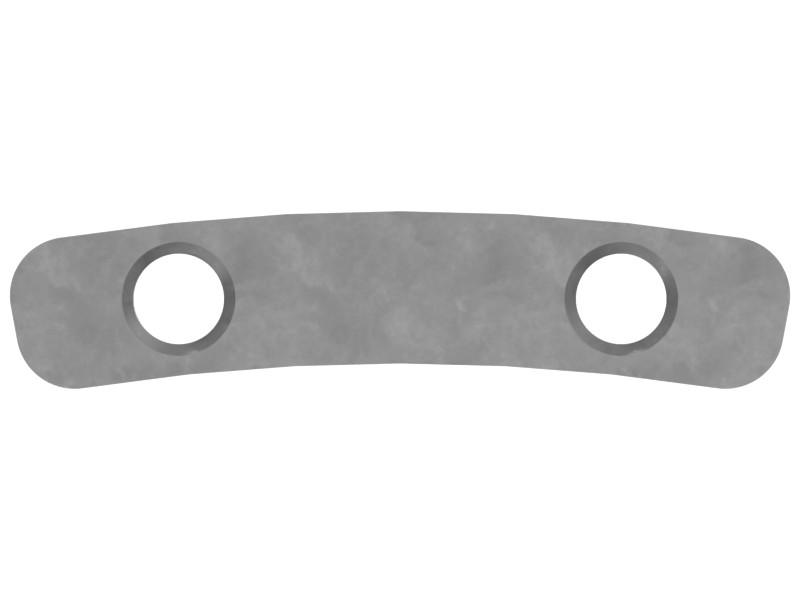

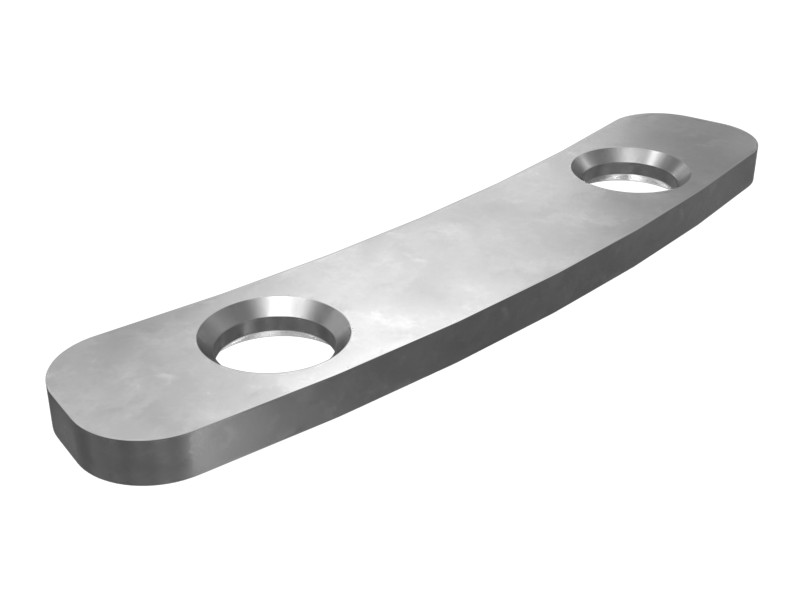

302-6343 14 mm Thick Spacer Plate
Cat® 14 mm Thick Shim Plate for Circle Drawbar Wear Strips
Description
The shim plate ensures proper spacing and correct alignment between the plate and the turntable drawbar group. They come in a variety of sizes, thicknesses, and grades to suit different applications. These plates are usually made of high-strength steel.
Features
- Manufactured to exact specifications, built for rugged durability and reliable performance.
- Provides 2 holes to mate with the wear band.
- High strength, wear-resistant.
Applications
The shim plate is used in the drawbar circle where precise spacing or separation is needed for proper function, alignment, or clearance.
Specifications
| Hole Size | 36 mm (1.42 in) |
|---|---|
| Length | 308.3 mm (12.14 in) |
| Thickness | 14 mm (0.55 in) |
| Width | 60 mm (2.36 in) |
Compatible Equipment
- Motor Graders: 16M, 18, 16, 16M3
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
