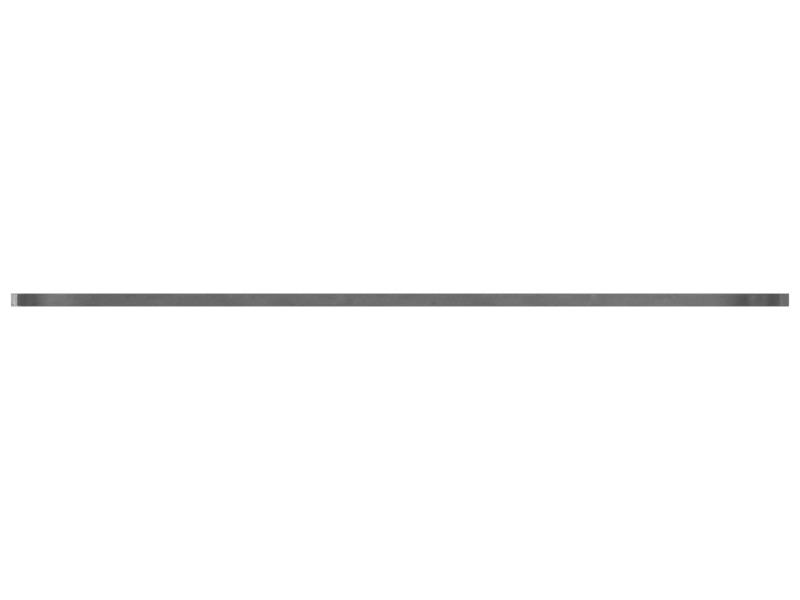

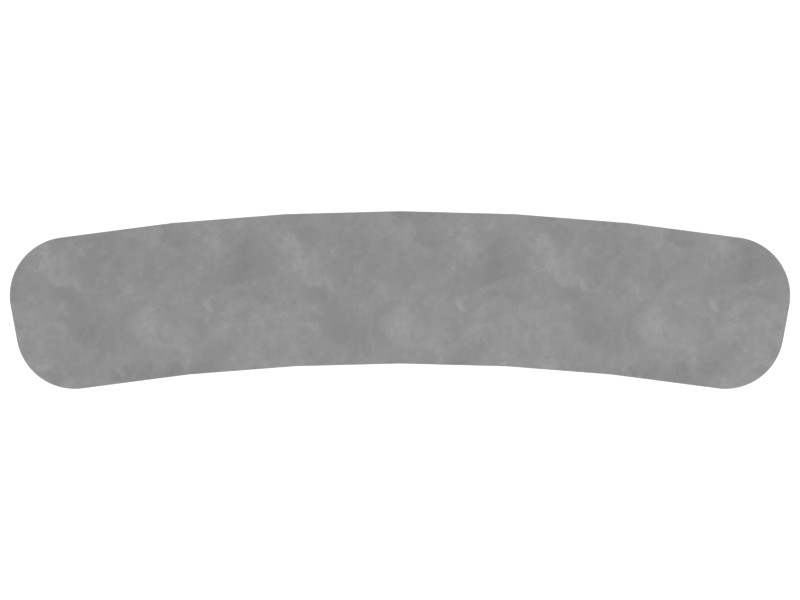

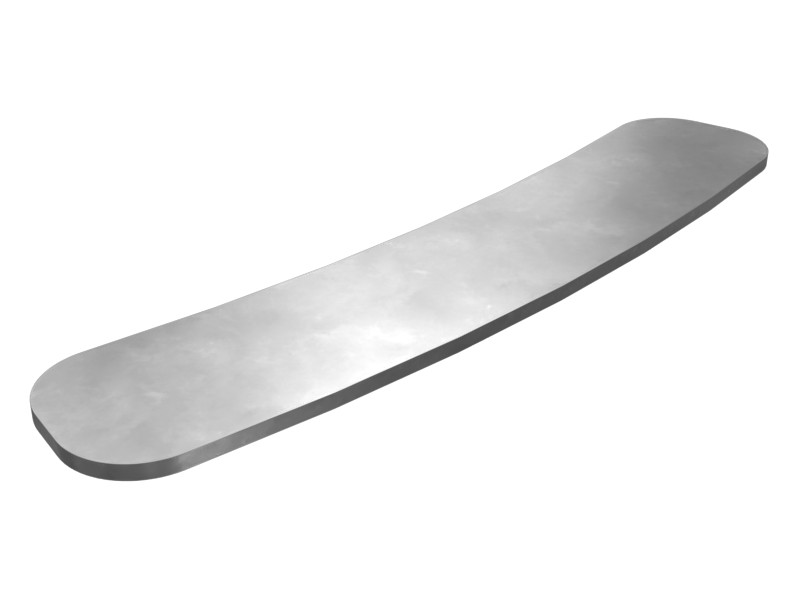

Description
The shim plate ensures proper spacing and correct alignment between the plate and the turntable drawbar group. The thickness of the plate varies depending on the weight and size of the equipment it must support. Holes are usually drilled or punched in the plate to accommodate the bolts, screws, or other fasteners used to secure the equipment.
Features
- Manufactured to exact specifications, built for rugged durability and reliable performance.
- High strength, wear-resistant.
Applications
The shim plate is used in the drawbar circle where precise spacing or separation is needed for proper function, alignment, or clearance.
Specifications
| Length | 308.3 mm (12.14 in) |
|---|---|
| Thickness | 5 mm (0.2 in) |
| Width | 60 mm (2.36 in) |
Compatible Equipment
- Motor Graders: 18, 16, 14, 16M, 14M, 16M3
