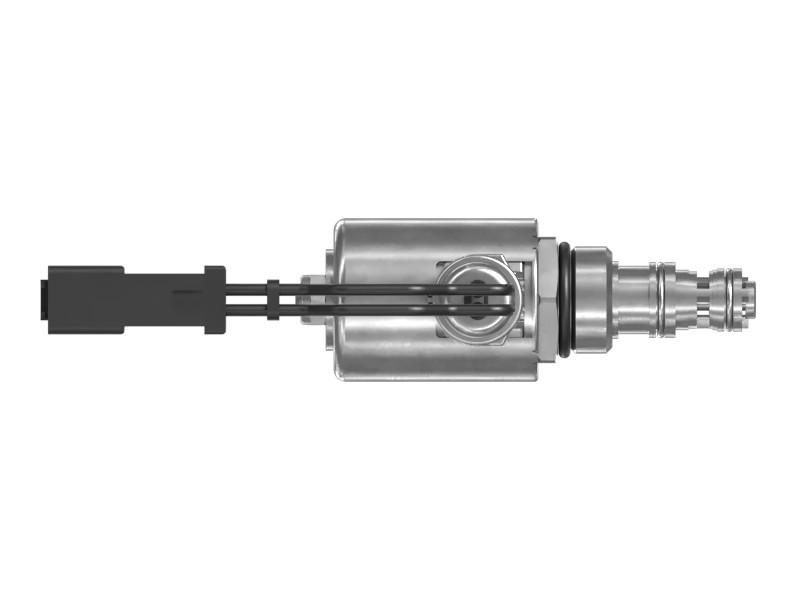

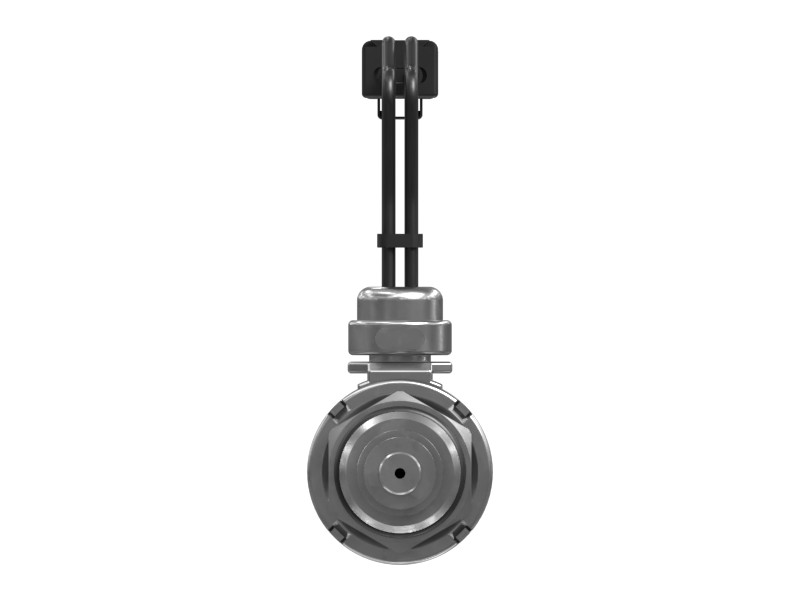

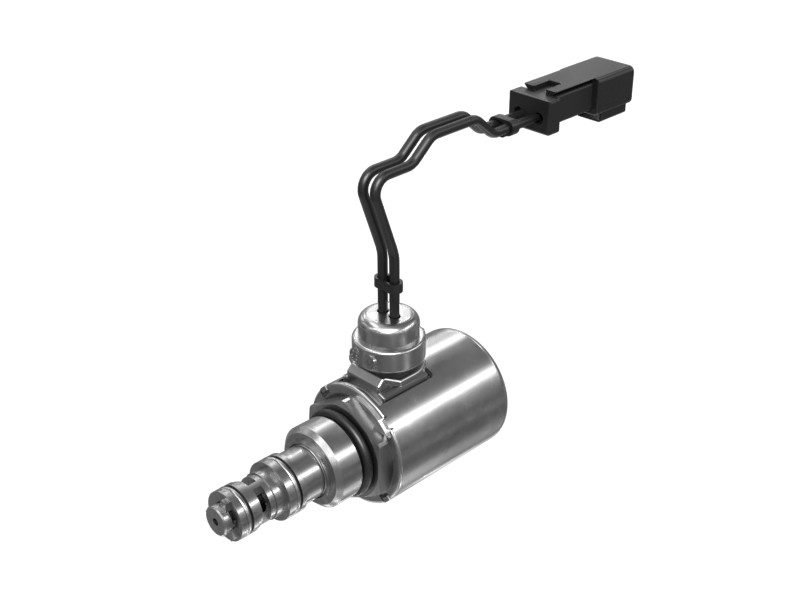

302-3813 24 Volt Solenoid Valve
Cat® solenoid valves for hydraulic transmission shift control regulate hydraulic oil flow during transmission shifts.
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
Cat solenoid valve groups are electromechanical devices used to open or close valves in the fluid systems of Cat heavy-duty equipment.
Features
- Voltage: 24 VDC
- 3 Way 2 Position
- Normally Closed
- Fluid Type: SAE 10 to SAE 30 Oil
- Thread Size: 1-1/16-12
- Connector Type: 2-Pin DT
- Lead Length: 254 mm (10.0 in)
- ROHS compliant
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Carbon Steel |
|---|---|
| Voltage | 24 VDC Volts |
| Length | 116.1 mm (4.57 in) |
| Width | 41.25 mm (1.62 in) |
| Thread Size | 1-1/16-12 in |
Compatible Equipment
- Generator Sets: C4.4, 3512B
- Excavators: 3516E, 637G, 657G, 637K, 621G, 3512C
- Wheel Loaders: R1600H
- Off-Highway Trucks: 793D, 773, 789, 773E, 740, 789D, 735
- Asphalt Pavers: AD30, AD45
Additional information
| Machine Model | 3512B, 3512C, 3516E, 621G, 637G, 637K, 657G, 735, 740, 773, 773E, 789, 789D, 793D, AD30, AD45, C4.4, R1600H |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Off-Highway Trucks, Asphalt Pavers, Generator Sets |
| Part Source | Genuine OEM |
