Description

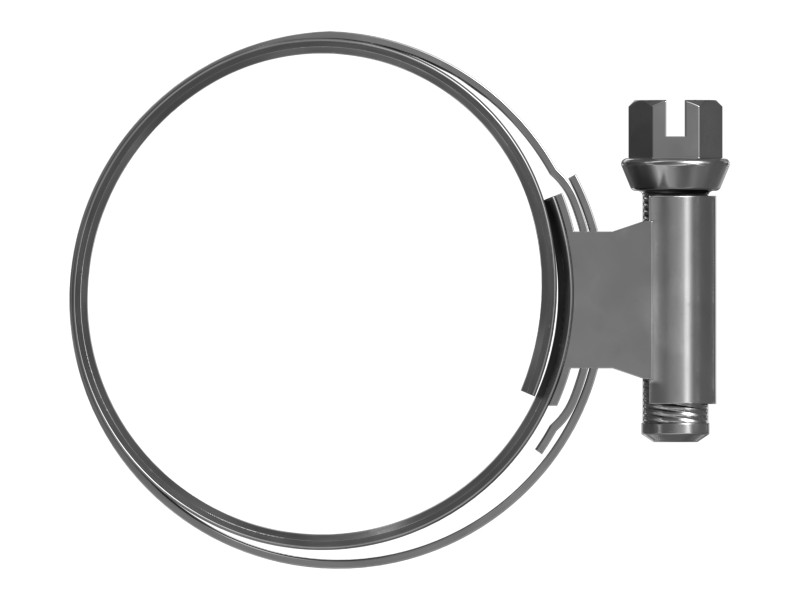

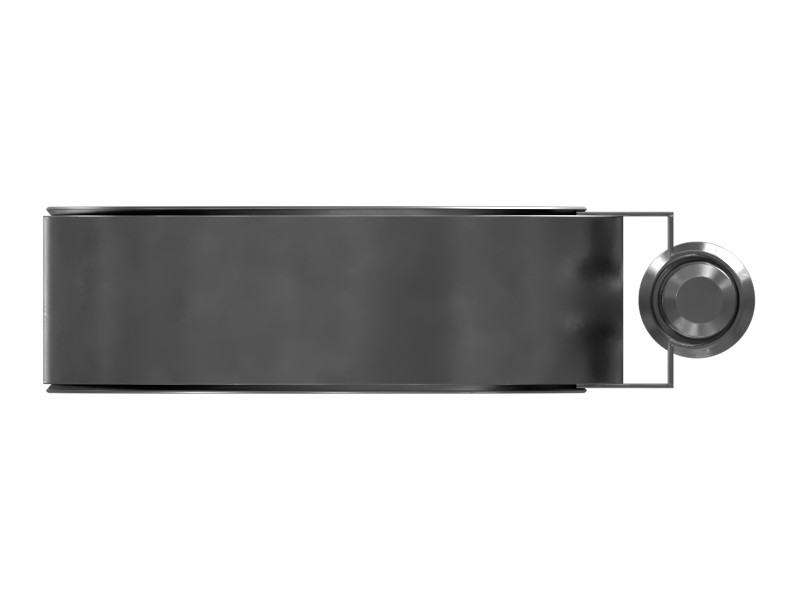

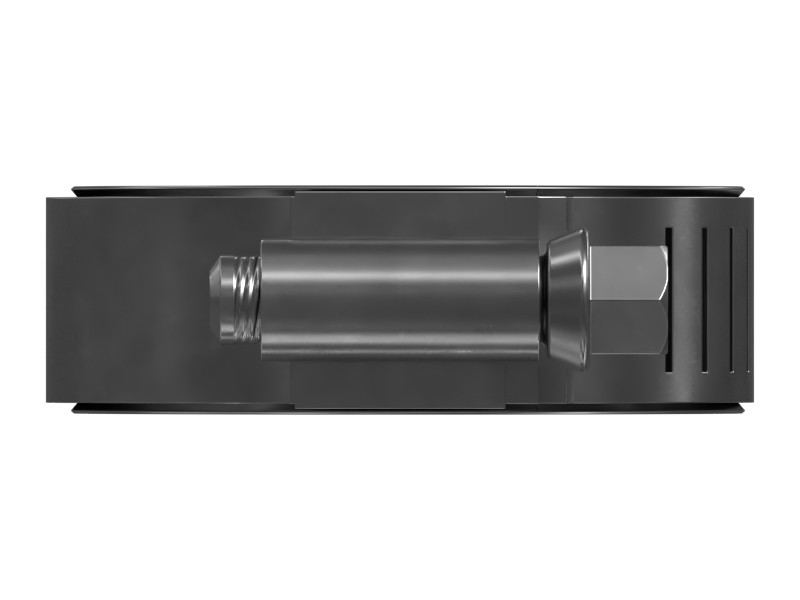

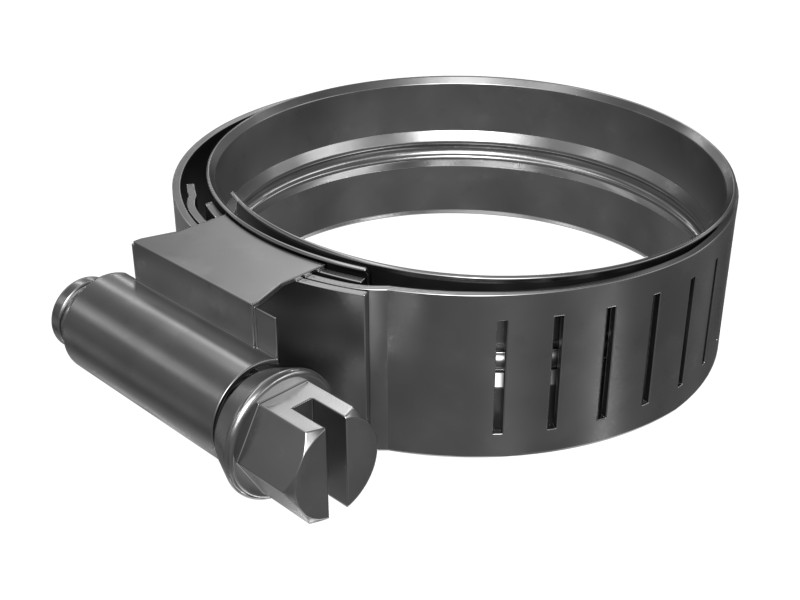

A Cat® clamp is a device designed to hold two parts tightly together.
Features
- Clamp Style: Wave Liner (Constant Tension)
- Maximum Effective Diameter: 57 mm (2.24 in)
- Minimum Effective Diameter: 39 mm (1.54 in)
- Clamp Width: 14.25 mm (0.56 in)
- Material: Stainless steel
- Liner: Yes
- Marine: No
- Wing Screw Adjustment: None
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Hose Clamp Type | Corrugated Liner |
|---|---|
| Working Diameter | 39 – 57 mm (1 1/2 – 2 1/4 in) |
| Material | Stainless Steel |
| Clamp Width | 14.25 mm (0.56 in) |
| Maximum Effective Diameter | 57 mm (2.24 in) |
| Minimum Effective Diameter | 39 mm (1.54 in) |
| Material Description | Stainless Steel |
Compatible Equipment
- Generator Sets: 3516C, C7.1
- Compactors: 816, 815, 814
- Engines: C13, C175-16
- Compact Track Loaders: 279D3
- Mini Excavators: 305E2, 305.5E2
- Excavators: 305E2 CR, 3516E, 3516B, 3512C, 303.5E2 CR
- Wheel Loaders: 966K
- Off-Highway Trucks: 745, 740, 740 GC, 745C, 730, 725, 735, 740B, 725C2
- Skid Steer Loaders: 246D, 262D, 232D3, 232D, 226D3, 236D, 246D3, 259D3, 262D3, 242D3, 289D3, 249D3, 239D3, 236D3, 226B3, 226B, 216B3
Additional information
| Machine Model | 216B3, 226B, 226B3, 226D3, 232D, 232D3, 236D, 236D3, 239D3, 242D3, 246D, 246D3, 249D3, 259D3, 262D, 262D3, 279D3, 289D3, 303.5E2 CR, 305.5E2, 305E2, 305E2 CR, 3512C, 3516B, 3516C, 3516E, 725, 725C2, 730, 735, 740, 740 GC, 740B, 745, 745C, 814, 815, 816, 966K, C13, C175-16, C7.1 |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Wheel Loaders, Compact Track Loaders, Skid Steer Loaders, Off-Highway Trucks, Compactors, Engines, Generator Sets |
| Part Source | Genuine OEM |
