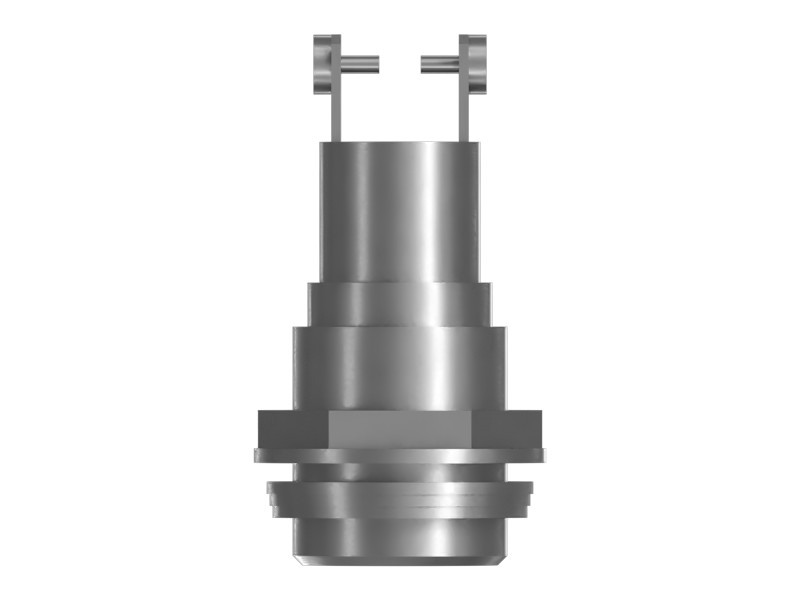

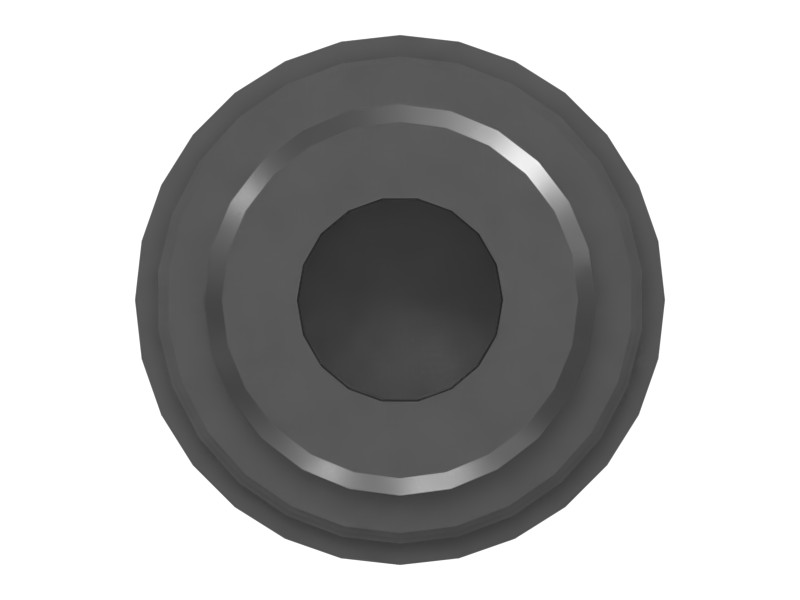

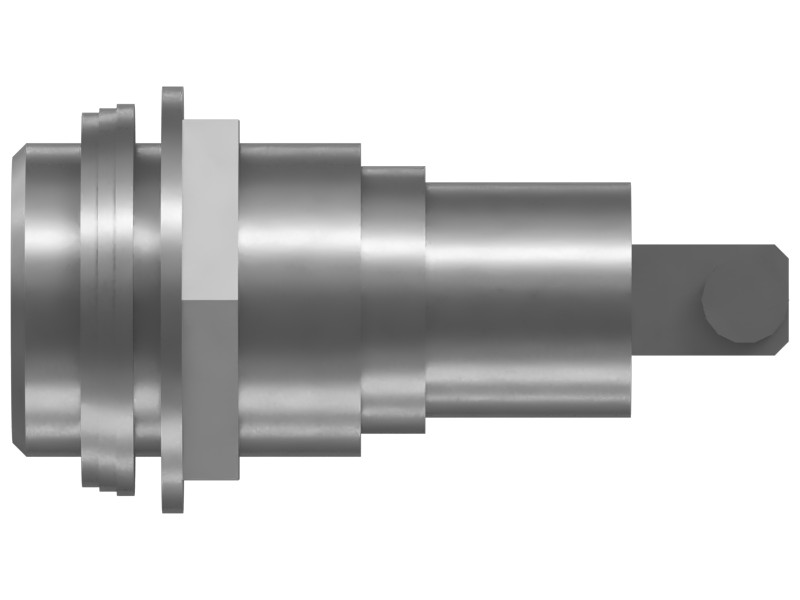

300-3282 44.50 mm Long Indicator Lamp Base
Cat® Indicator Lamp Base with 11/16-27" Thread, with Gasket
Description
The Cat indicator lamp base group supports the indicator lamps mounted on the dash panel, providing the operator with visual cues about the engine and implement systems in heavy equipment.
Features
- Durable steel indicator lamp base group
- Mounting Thread Size: 11/16-27
- Maximum Panel Thickness: 5.9 mm (0.23 in)
- For T-3 1/4 A-1 lamps
- Wires are mounted on two No. 4-36 screws
- Vibration Resistant
- Easy to install
Applications
The Cat indicator lamp base group is used in heavy equipment operator stations. Quality suited to equipment requirements, meeting your expectations.
Specifications
| Diameter | 24.5 mm (0.97 in) |
|---|---|
| Material Description | Steel |
| Length | 44.5 mm (1.75 in) |
| Material | Carbon Steel |
Compatible Equipment
- Engines: C32, C15, C18
- Compactors: CS-533E
