Description

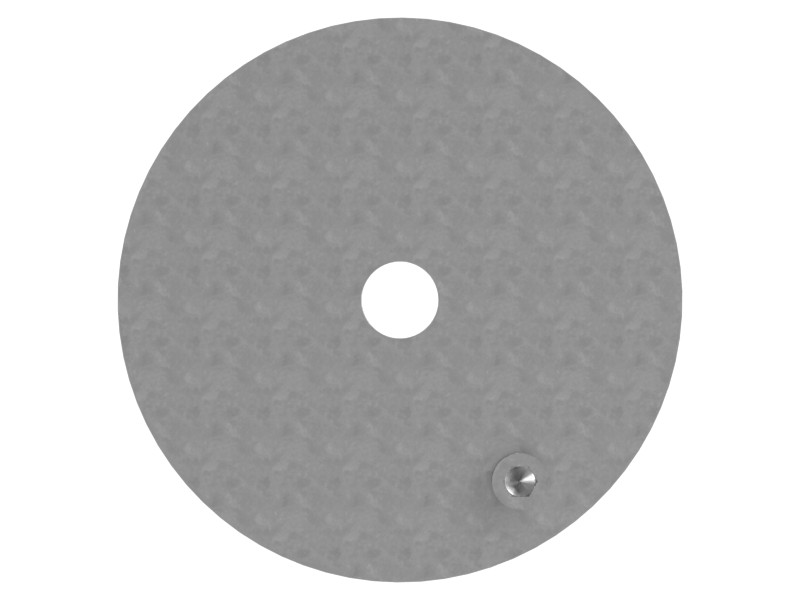

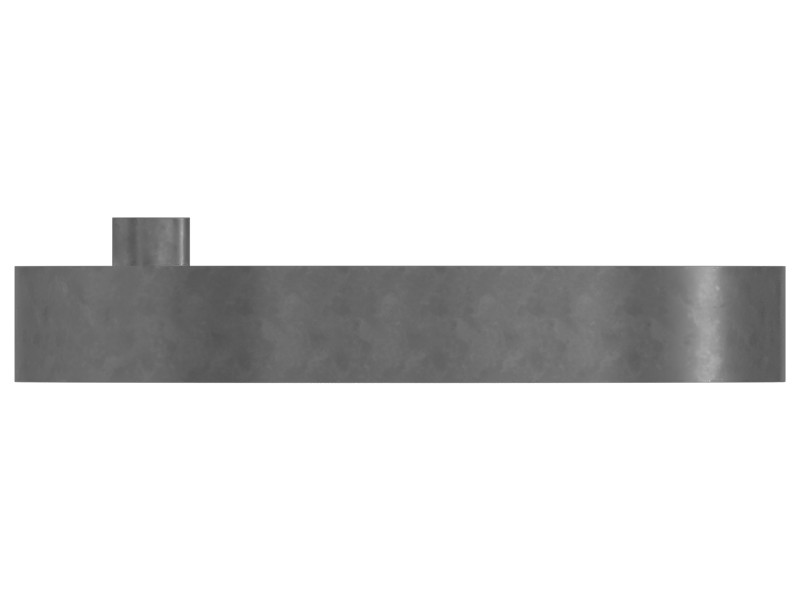

The belt tensioner mounting base consists of a cylindrical plate and screws and is used to mount the belt tensioner group to the engine front housing or other components, depending on the application. It ensures proper alignment and positioning of the belt tensioner for efficient operation. These bases are available in various sizes, thicknesses, and grades to meet various requirements.
Features
- Comes with one mounting hole for use with M10 fasteners.
- Able to withstand severe vibration and heavy loads.
- High strength, wear-resistant.
Applications
The belt tensioner mounting base is used to hold and secure the belt tensioner for the refrigerant compressor, V-belt, and alternator.
Specifications
| Material | Steel |
|---|---|
| Weight | 0.46 kg (1.01 lb) |
| Inside Diameter | 11 mm (0.43 in) |
| Outside Diameter | 80 mm (3.15 in) |
| Thickness | 12 mm (0.47 in) |
| Hole Size | 13 (1X) mm (0.50 (1X) in) |
Compatible Equipment
- Engines: C15, C18
- Excavators: 6015, 621G, 657G, 637E, 637G, 6018, 6015 FS, 3516E
- Off-Highway Trucks: 796 AC, 777D, 797F, 793, 793F, 777E, 798 AC, 793D, 794 AC, 777
