Description

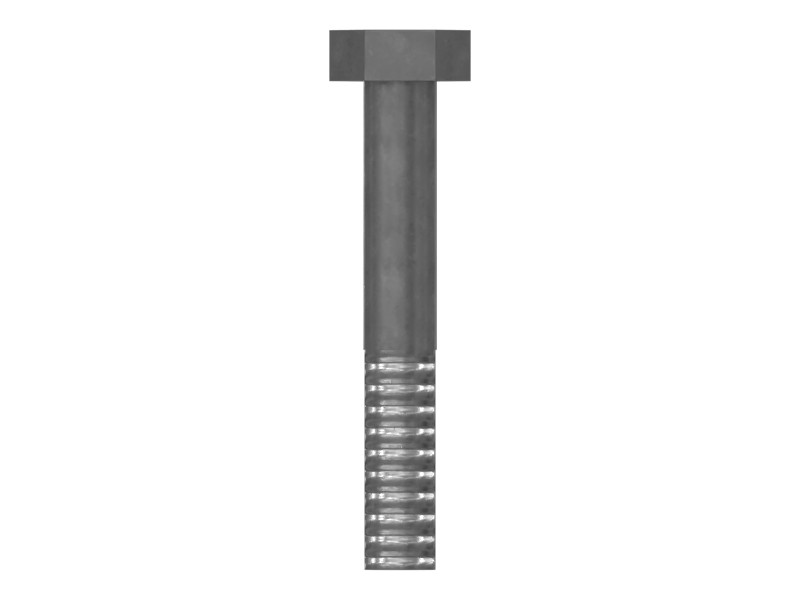

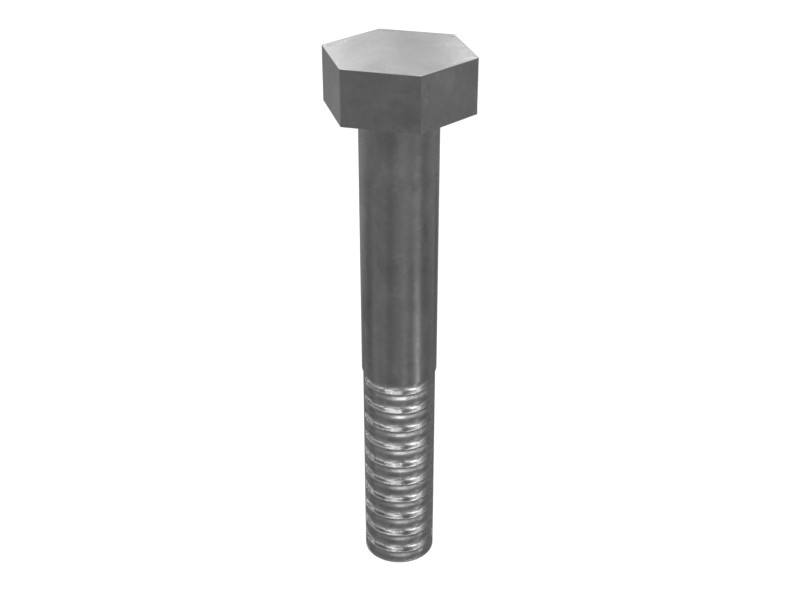

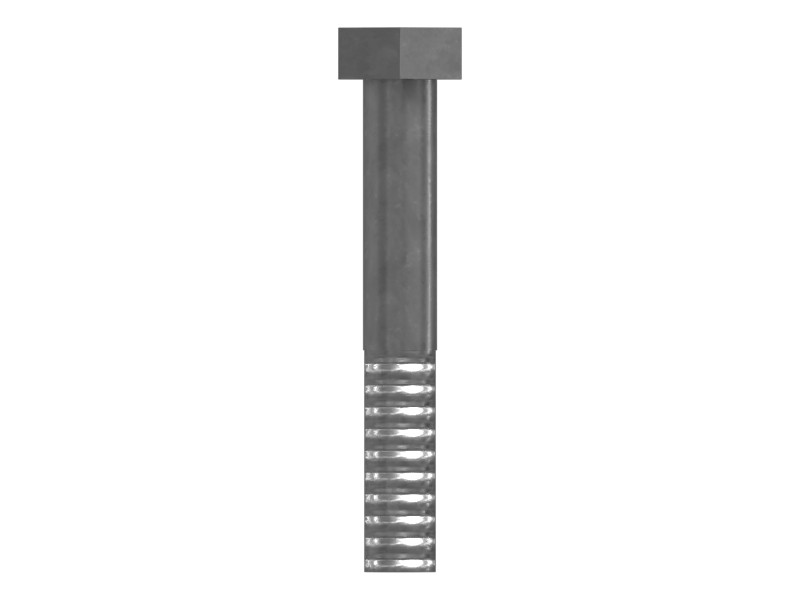

Cat bolts form a matched system with mating hardened washers and nuts to produce consistent, high clamping force
Specifications
| Class or Grade | ISO 898-1 Class 10.9 |
|---|---|
| Thread Direction | RH |
| Thread Size | M6 mm (0 in) |
| Locking Feature | None |
| Thread Size (Diameter × Pitch) | M6X1 mm |
| Bolt Length | 40 mm (1.575 in) |
| Bolt Type | Hex Head Bolt |
| Coating | Zinc Phosphate and Oil |
| Handle Length | 3 mm (0.118 in) |
| Material | Alloy Zinc |
Compatible Equipment
- Generator Sets: 3516C, 3512B, C4.4, C9, C7.1, G3516C, G3516
- Track Loaders: 972, 982
- Engines: C15, C13, C7, C11, C6.6, C18
- Excavators: 330, 3126, 313, 374, 313 GC, 340, 352, 355, 345C L, 345D, 3512C, 345C, 434F2, 6060, 3516B, 349D L, 350, 395, 320, 336, 315 GC, 323, 330 GC, 315, 320 GC, 326, 325C, 325C L, 330GC, 325, 335
- Skid Steer Loaders: 3126B
- Motor Graders: 140 GC, 18, 16, 16M3, 120H, 120, 14
- Wheel Excavators: M320, M315
- Compactors: C-9
- Dozers: D3K2 LGP, D11, D11R, D9, D10, D5N, D6N, D5K2 XL, D11T, D8
- Wheel Loaders: 950 GC, M314, 966, 980, 950
- Off-Highway Trucks: 785D, 789D, 793F, 793, 797F, 785, 793D, 789, 730, 735
Additional information
| Machine Model | 120, 120H, 14, 140 GC, 16, 16M3, 18, 3126, 3126B, 313, 313 GC, 315, 315 GC, 320, 320 GC, 323, 325, 325C, 325C L, 326, 330, 330 GC, 330GC, 335, 336, 340, 345C, 345C L, 345D, 349D L, 350, 3512B, 3512C, 3516B, 3516C, 352, 355, 374, 395, 434F2, 6060, 730, 735, 785, 785D, 789, 789D, 793, 793D, 793F, 797F, 950, 950 GC, 966, 972, 980, 982, C-9, C11, C13, C15, C18, C4.4, C6.6, C7, C7.1, C9, D10, D11, D11R, D11T, D3K2 LGP, D5K2 XL, D5N, D6N, D8, D9, G3516, G3516C, M314, M315, M320 |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Engines, Generator Sets |
| Part Source | Genuine OEM |
