Description

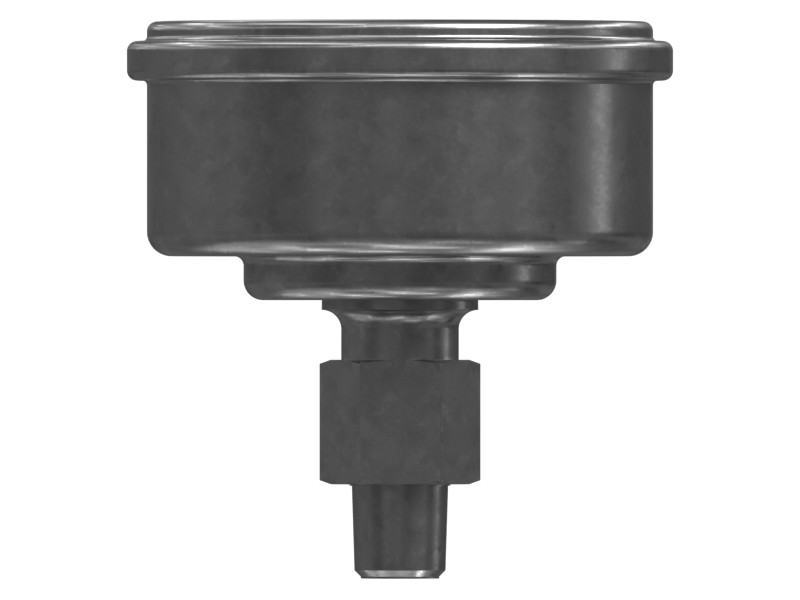

Cat parts keep equipment running at its best. The Cat engine oil pressure indicator gives the operator a visual display of the status of many important machine systems.
Features
- Marked oil pressure gauge
- Color coded: green, white, and red
- Non-vented
- Imperial mounting fasteners
- Designed to work with other Cat components to help your equipment reach its full potential.
Applications
The indicator is used with a sender to indicate oil pressure on Cat heavy equipment. Refer to your Operation and Maintenance Manual or contact MECHSC for more information. Cat parts work in heavy-duty applications in environments with severe vibration, shock, extreme operating temperature ranges, thermal cycling, thermal shock, humidity, corrosion, and dust.
Specifications
| Material | Other Mixed: Metal-Nonmetal |
|---|---|
| Material Description | Metal Housing/Plastic Lens |
| Outside Diameter | 55.9 mm (2.2 in) |
| Overall Depth | 51 mm (2 in) |
| Thread Size | 1/8-27 NPT SAE Short in |
| Operating Pressure | 0 – 500 kPa (0 – 70 psi) |
Compatible Equipment
- Generator Sets: 3406C, 3406B, C9
- Engines: C11, C13, C32, C15, C12, C18
- Excavators: 3126
