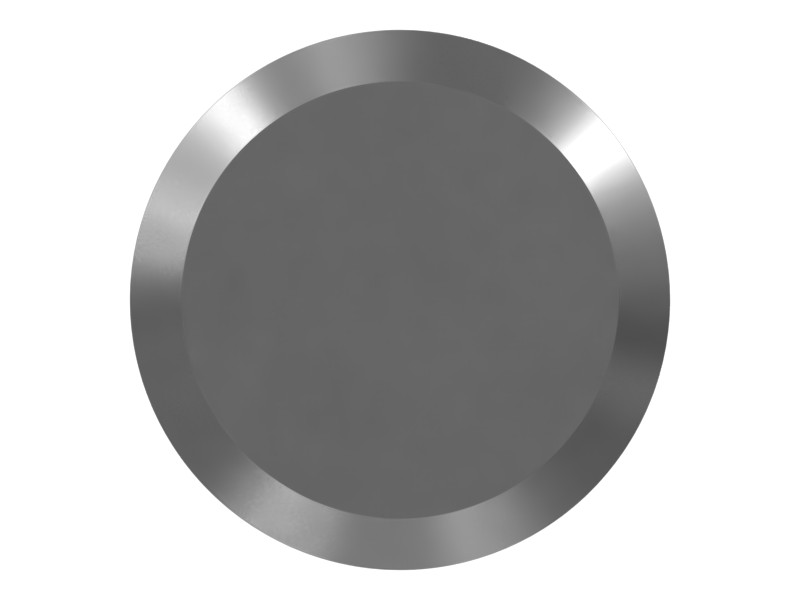

2S-0696 44.45 mm Long Chamfered End Steel Dowel

Description

A dowel pin is a solid, headless straight pin with a tightly controlled diameter, installed by press fit in one or two parts to transmit loads or fix the position of adjacent parts.

Cat® fasteners and hardware are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.

Features

Cat fasteners and hardware are manufactured to precise specifications for durability, reliability and high efficiency
Strength and Quality – Parts meet or exceed ISO, ASTM, ASME and SAE requirements
Coating meets the special requirements of different applications (RoHS compliant)

Applications

Cat fasteners and hardware are trusted to build, maintain or repair most machines and shop applications worldwide

Specifications

Material	Steel(1E0509)
Pin Outside Diameter	6.19 mm (0.244 in)
Pin Type	Solid
Pin Length	44.45 mm (1.75 in)
Remarks	Overall Length: 44.45, Pin Diameter: 6.19252, End Type 1: Chamfer, End Type 2: Chamfer
Material Description	Steel

Compatible Equipment

Generator Sets: C4.4, 3512B, C7.1
Track Loaders: 824C, 992, 826G, 990K, 824G, 994K, 816F, 995, 993
Compactors: C9.3B
Dozers: D10R, D11R, D11T, D10N, D10, D11, D11N, D9R, D7H, D8N, D5H, D5M, D8L, D6R, D7R, D6M, D8R, D6R XL, D9N, D9L
Excavators: 637G, 637E, 657G, 621G, 3508B, 3512C, 3516E
Wheel Loaders: 992K
Off-Highway Trucks: 773, 793D, 777, 771D, 773D, 789, 740, 773E, 785D, 735, 777D, 789D, 785, 793
Asphalt Pavers: AD30, AD45

Machine Model	3508B, 3512B, 3512C, 3516E, 621G, 637E, 637G, 657G, 735, 740, 771D, 773, 773D, 773E, 777, 777D, 785, 785D, 789, 789D, 793, 793D, 816F, 824C, 824G, 826G, 990K, 992, 992K, 993, 994K, 995, AD30, AD45, C4.4, C7.1, C9.3B, D10, D10N, D10R, D11, D11N, D11R, D11T, D5H, D5M, D6M, D6R, D6R XL, D7H, D7R, D8L, D8N, D8R, D9L, D9N, D9R
Equipment Type	Excavators, Wheel Loaders, Track Loaders, Dozers, Off-Highway Trucks, Compactors, Asphalt Pavers, Generator Sets
Part Source	Genuine OEM

Machine Model

3508B, 3512B, 3512C, 3516E, 621G, 637E, 637G, 657G, 735, 740, 771D, 773, 773D, 773E, 777, 777D, 785, 785D, 789, 789D, 793, 793D, 816F, 824C, 824G, 826G, 990K, 992, 992K, 993, 994K, 995, AD30, AD45, C4.4, C7.1, C9.3B, D10, D10N, D10R, D11, D11N, D11R, D11T, D5H, D5M, D6M, D6R, D6R XL, D7H, D7R, D8L, D8N, D8R, D9L, D9N, D9R

Equipment Type

Excavators, Wheel Loaders, Track Loaders, Dozers, Off-Highway Trucks, Compactors, Asphalt Pavers, Generator Sets

Part Source

Genuine OEM
