Description
Cat® fluid-carrying adapters meet the highest standards of quality and reliability. These adapters are manufactured to tight tolerances to ensure leak-free connections. Every Cat fluid-carrying adapter meets or exceeds industry standards for working pressure, assembly torque capability and corrosion protection, keeping your machine durable and running properly.
Attributes
- Wetted parts
- Designed to meet or exceed the performance of industry-standard parts and provide leak-free connections

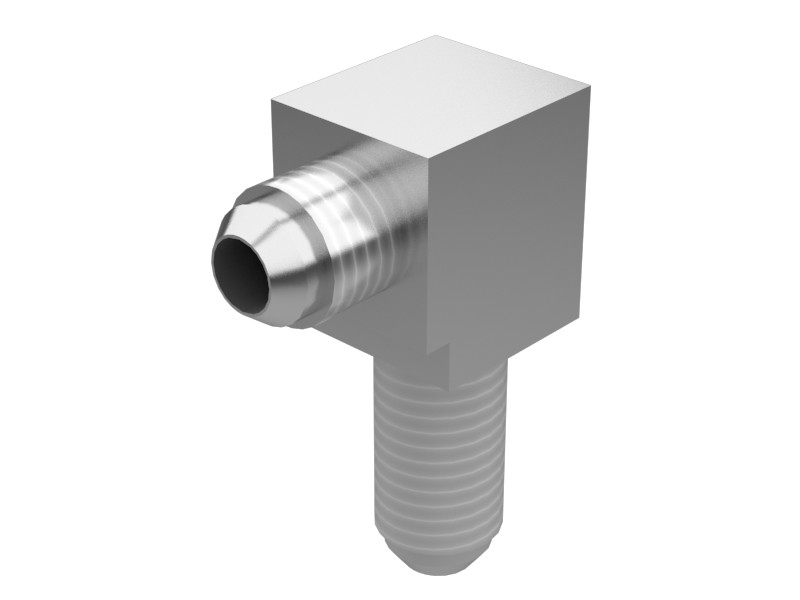

- The image provided is for reference only. The adapter construction may differ slightly from the illustration, but this part is interchangeable with the OEM part.
Applications
Adapters are used to connect fluid-carrying hoses and tubes to other system components. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Hose Warning | Improper selection of hose and coupling combinations will void the warranty and may result in serious injury or death, property damage, or component and machine system failure. Cat® hose assembly products are designed and tested as a system to achieve reliable connections, maximizing hydraulic system safety and reliability. In addition, use of properly maintained, appropriate Caterpillar tooling is recommended to ensure hoses are crimped to specification. Using Caterpillar hose with another manufacturer's couplings, or Caterpillar couplings with another manufacturer's hose, may result in hose assemblies that are unreliable, unsafe or perform poorly. Caterpillar does not recommend or endorse this practice. For more information, refer to SAE J1273 Section 6.3 and ISO 17165-2 Section 6.3. |
|---|---|
| Material | Carbon Steel |
| Material Description | Plated Steel |
| Transmission and Hydraulic Oil Compatible Seals | 3J-1907 (9/16-18) |
| Oil and Fuel Compatible Seals | 214-7568 (9/16-18) |
| Coolant and DEF Compatible Seals | 6V-3250 (9/16-18) |
Compatible Equipment
- Generator Sets: 3512E, 3512B, 3516C
- Motor Graders: 140G
- Track Loaders: 953, 824C
- Wheel Excavators: MD6200, MD6250
- Engines: C32, C175-16, C12
- Mini Excavators: 307B
- Excavators: 637E, 3516E
- Wheel Loaders: 992C, R1700G, R1600H, R1700 II, R3000H, R2900G, 950
- Asphalt Pavers: AD45, AD30, AD63
Additional information
| Machine Model | 140G, 307B, 3512B, 3512E, 3516C, 3516E, 637E, 824C, 950, 953, 992C, AD30, AD45, AD63, C12, C175-16, C32, MD6200, MD6250, R1600H, R1700 II, R1700G, R2900G, R3000H |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Motor Graders, Asphalt Pavers, Engines, Generator Sets |
| Part Source | Genuine OEM |
