Description

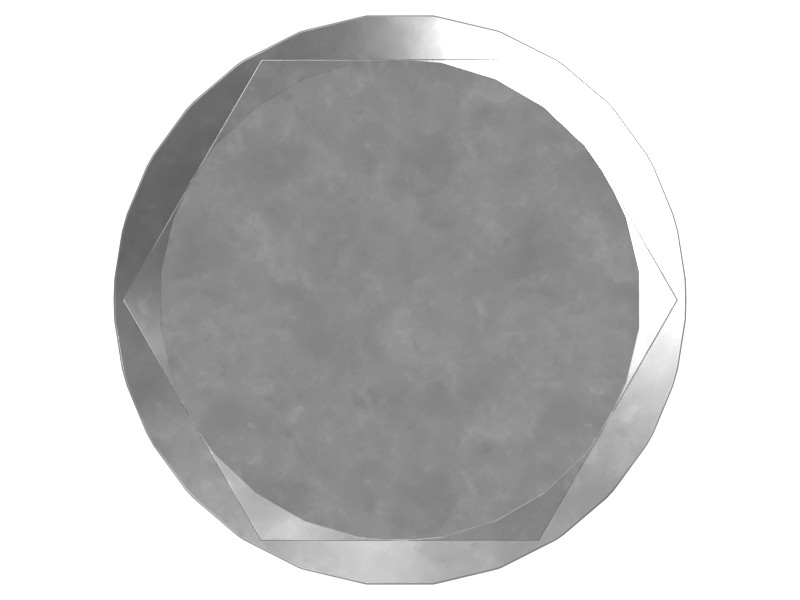

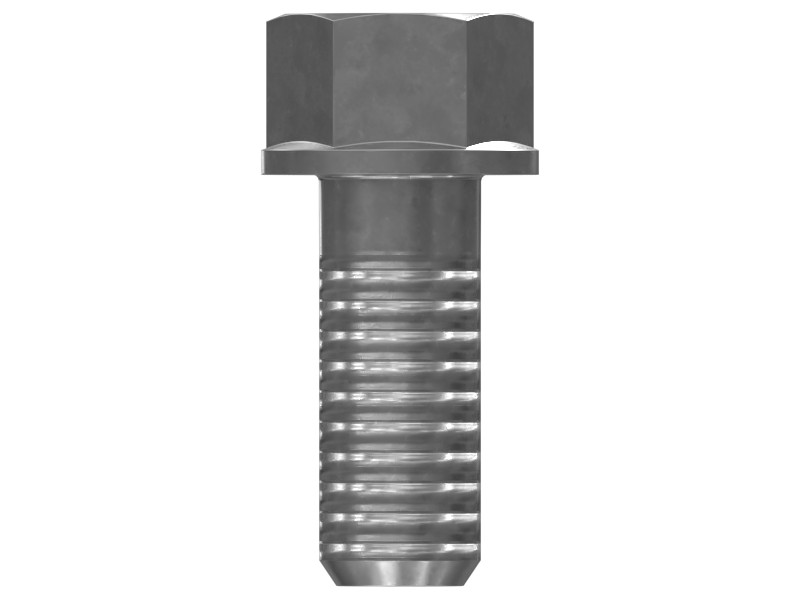

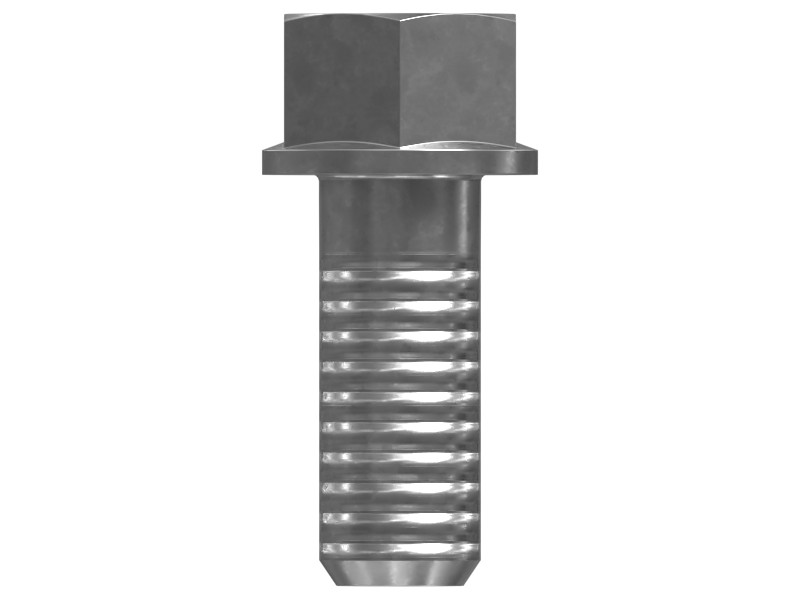

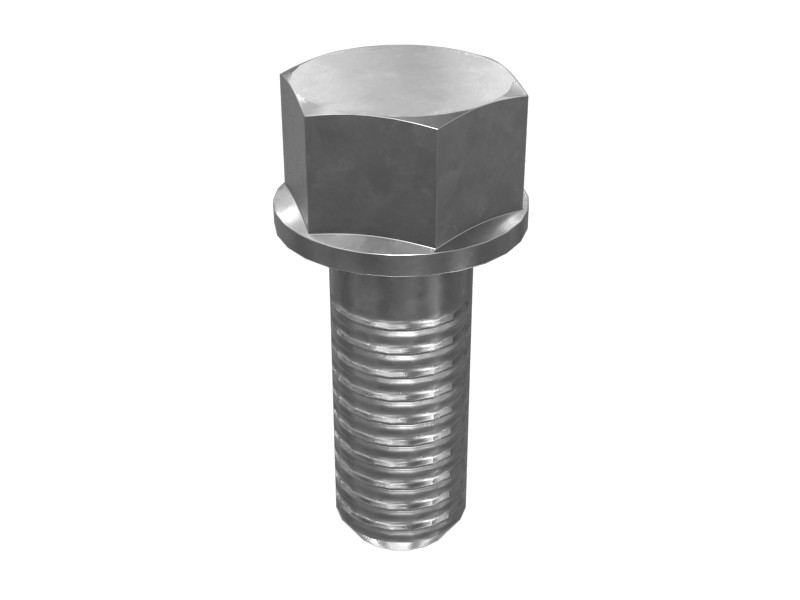

The hex flange bolt is a fastener consisting of a hex head with a flange and a partially threaded shank. The hex head provides a convenient way to tighten the bolt, while the flange ensures that the load is distributed over a wider surface area, reducing the risk of damage or failure.
Attributes
- Six-sided hex head allows greater torque.
- Manufactured to exact specifications, built for durability and reliability.
Applications
Hex flange bolts are used as fasteners to join two or more objects together.
Specifications
| Thread Size | 0.375 mm (0.015 in) |
|---|---|
| Thread Direction | RH |
| Class or Grade | SAE J429 Grade 8 (150 ksi) |
| Locking Feature | None |
| Head Height | 0.39 in |
| Thread Size (in – TPI) | 3/8-16 in |
| Drive Chain | 9/16 in |
| Material Description | SAE J429 Grade 8. Head Marking – 6 Radial Lines (150 ksi Ultimate Tensile Strength) |
| Thread | Rough Milled |
| Bolt Size | 3/8 in |
| Thread Size (Diameter × Pitch) | 3/8×16 mm |
| Coating | 0 |
| Flange Diameter | 0.67 in |
| Bolt Length | 25.4 mm (1 in) |
| Bolt Type | Hex Flange Head |
| Flange Type | Smooth Flange Face |
| Handle Length | 4.76 mm (0.19 in) |
Compatible Equipment
- Motor Graders: 140G, 120, 140H, 12H
- Generator Sets: C7.1, 3406B
- Track Loaders: 963, 953
- Compactors: 815, 816, 814
- Dozers: D7G, D4E, D5H, D7G2, D6G2 XL, D6G2 LGP
- Wheel Loaders: 950, 966F, R1300G, 972G
